32 mm Bore
The DNC-32-100-PPV-A uses a 32 mm piston diameter for pneumatic linear-motion applications.

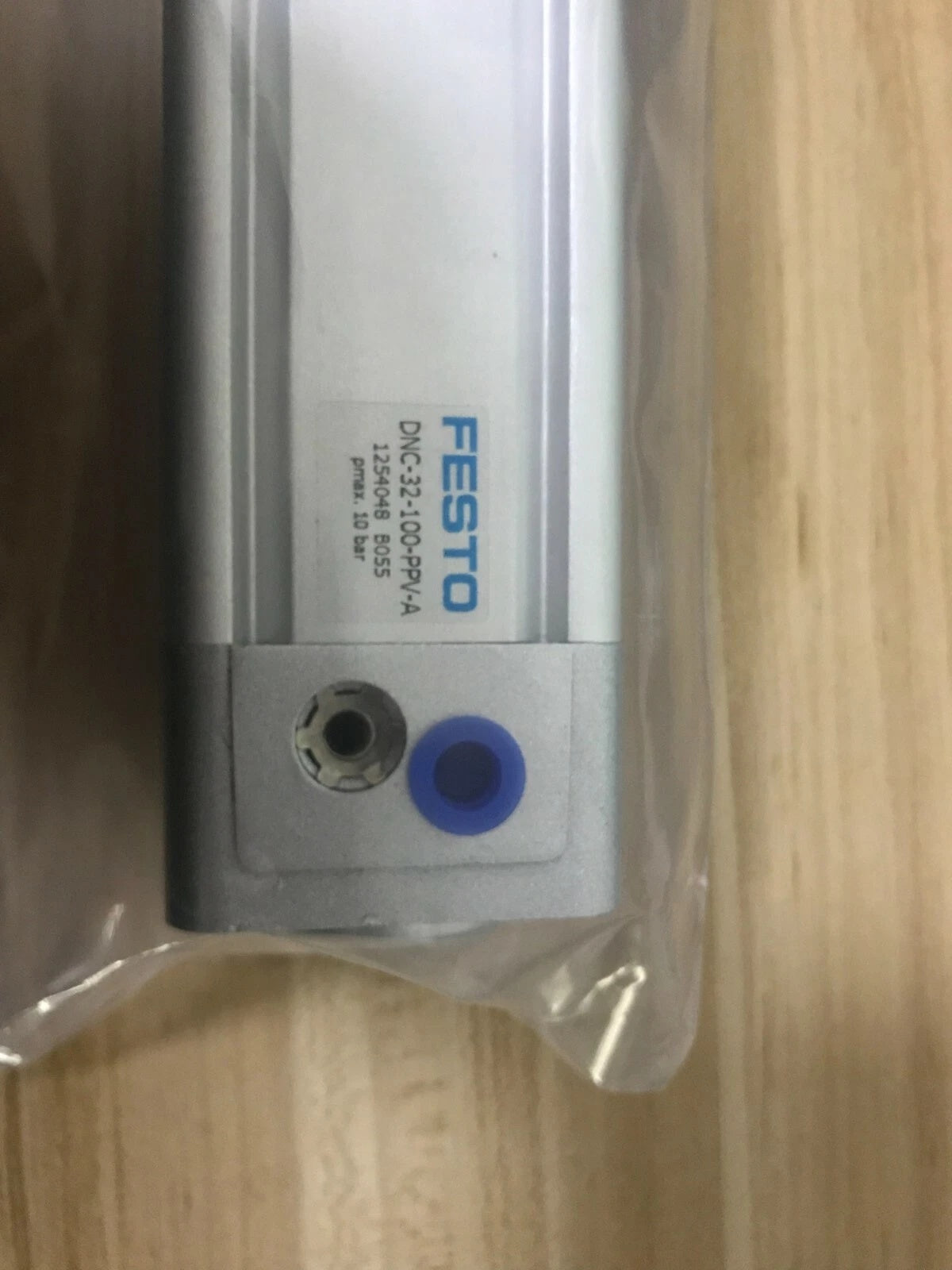

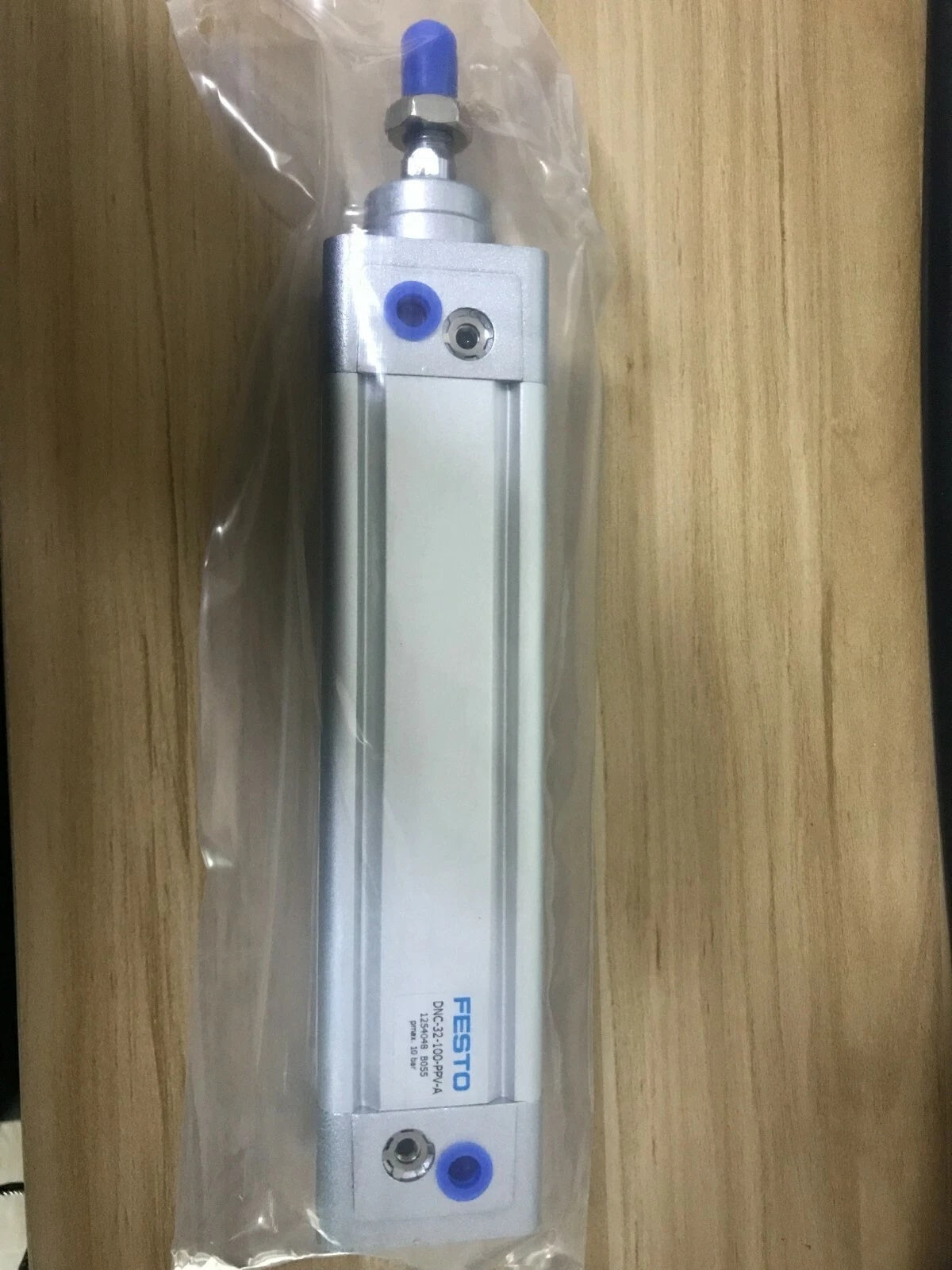

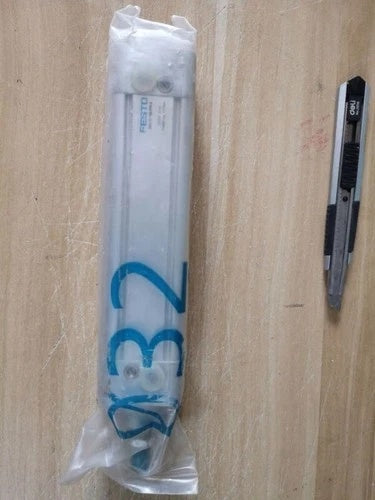

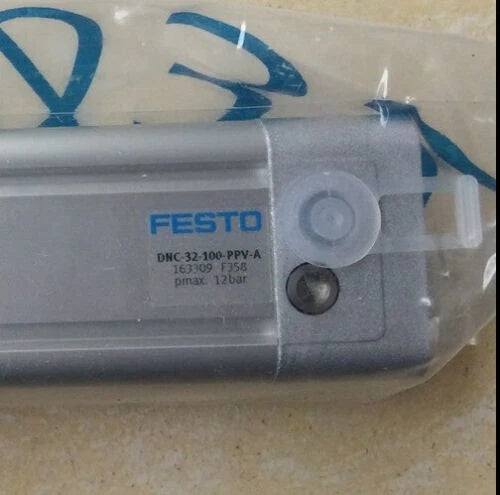

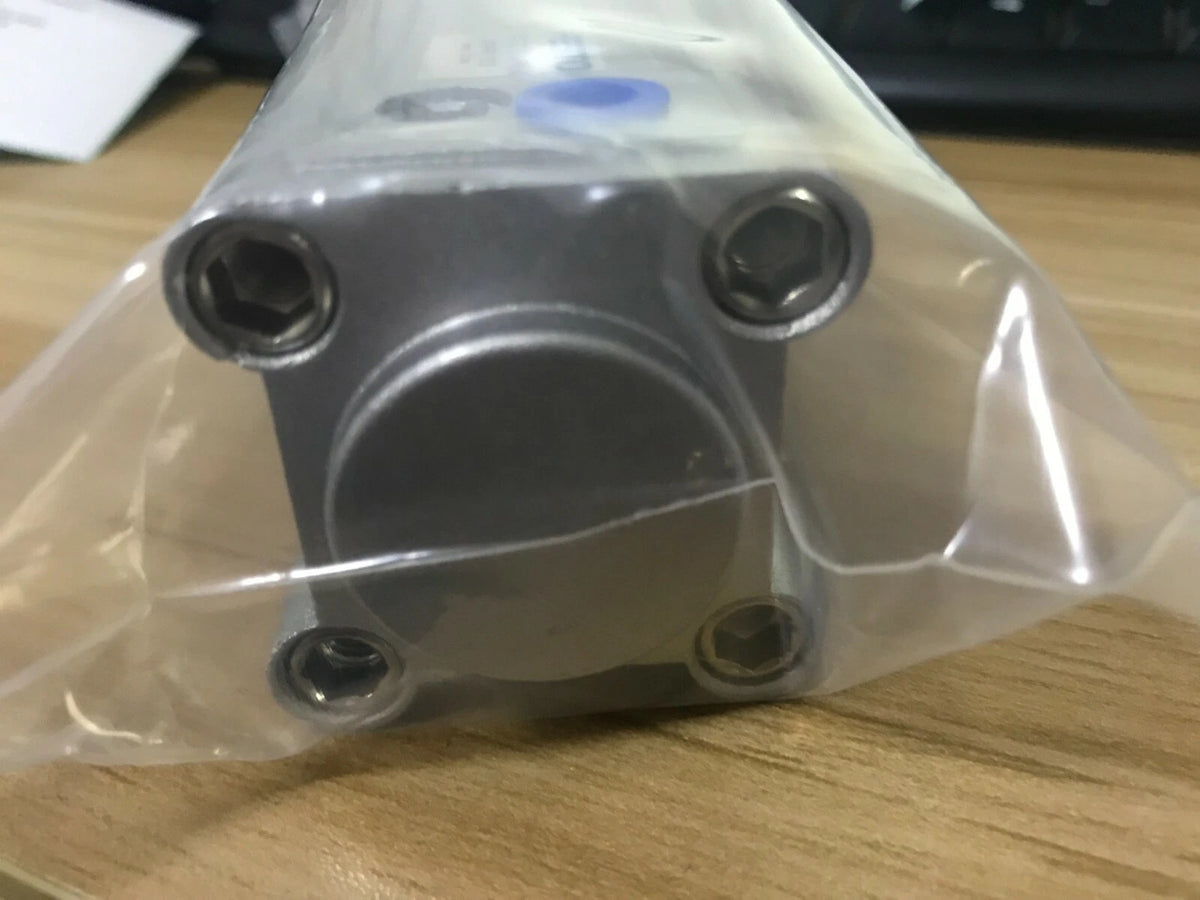

FESTO DNC-32-100-PPV-A ISO Cylinder 32mm Bore 100mm Stroke
Available in stock (400)
Regular price
$38.87
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | DNC-32-100-PPV-A |
| Product Category | ISO Cylinder |
| Series | DNC |
| Stroke | 100 mm |
| Piston Diameter | 32 mm |

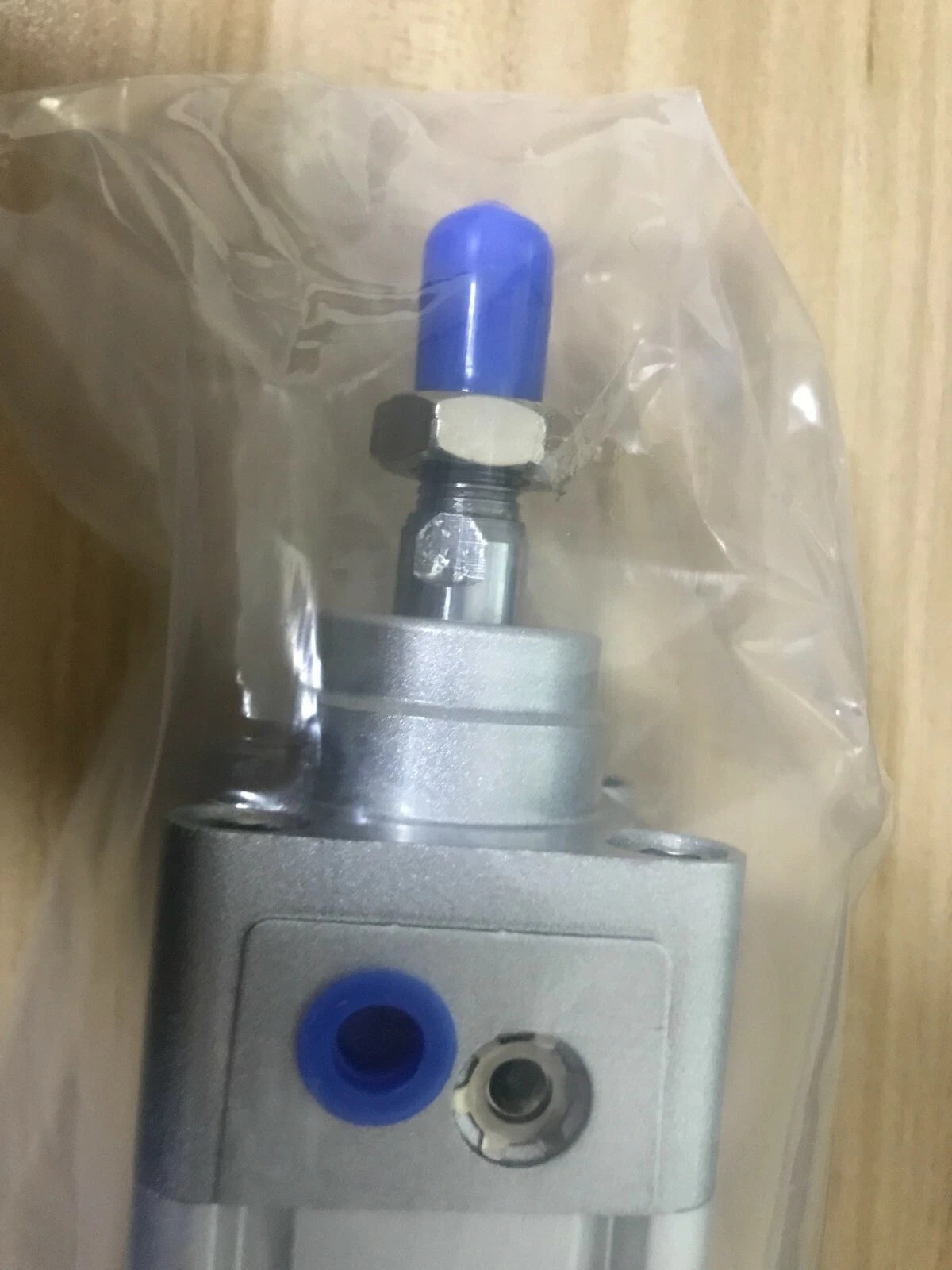

| Piston Rod Thread | M10x1.25 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Standard | ISO 15552 |
| Design | Piston, piston rod, profile barrel |
| Position Sensing | For proximity sensor |
| Mode of Operation | Double-acting |
| Operating Pressure | 0.6-12 bar |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Theoretical Force at 6 Bar, Advancing | 483 N |
| Theoretical Force at 6 Bar, Retracting | 415 N |
| Pneumatic Connection | G1/8 |
| Mounting Position | Any |
Key Features
100 mm Stroke
The documented 100 mm stroke provides a defined linear travel distance for suitable automation and machine applications.
ISO 15552 Design
The DNC series cylinder conforms to ISO 15552 and uses a piston, piston rod and profile-barrel construction.
Adjustable Pneumatic Cushioning
The PPV configuration provides pneumatic cushioning that can be adjusted at both ends of the cylinder stroke.
Double-Acting Operation
Compressed air provides powered movement in both the advancing and retracting directions.
Position Sensing Provision
The A configuration is designed for position sensing with a suitable proximity sensor.
Applications
- Industrial pneumatic motion systems
- Automated assembly machinery
- Material handling equipment
- Packaging and processing machinery
- Pneumatic clamping mechanisms
- Production-line positioning systems
- Machine transfer and pushing mechanisms
- General industrial linear-motion applications
Purchase Information
We support online purchase of the FESTO DNC-32-100-PPV-A ISO Cylinder. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO DNC-32-100-PPV-A?
It is a double-acting pneumatic cylinder from the FESTO DNC series with a 32 mm piston diameter and 100 mm stroke.
What is the bore size?
The documented piston diameter is 32 mm.
What is the stroke length?
The documented stroke is 100 mm.
Which standard does DNC-32-100-PPV-A follow?
The cylinder conforms to ISO 15552.
What type of cushioning does it use?
It uses pneumatic cushioning that is adjustable at both ends.
What is the operating pressure range?
The documented operating pressure range is 0.6 to 12 bar.
What pneumatic connection does it use?
The documented pneumatic connection for the 32 mm bore configuration is G1/8.
What theoretical force does it provide at 6 bar?
The documented theoretical force is 483 N when advancing and 415 N when retracting.
Does DNC-32-100-PPV-A support position sensing?
Yes. The A configuration is designed for position sensing using a suitable proximity sensor.
What is the piston rod thread?
The documented piston rod thread is M10x1.25.
Can DNC-32-100-PPV-A replace another pneumatic cylinder?
It can be considered after the complete model number and technical requirements have been checked. Bore, stroke, cushioning, operating pressure, piston rod thread, pneumatic connection, mounting and installation dimensions should be verified against existing system requirements.
What should be checked before ordering?
The pneumatic, mechanical and installation requirements should be checked before ordering, including the complete model number, 32 mm bore, 100 mm stroke, ISO 15552 requirements, M10x1.25 piston rod thread, G1/8 pneumatic connection and required mounting arrangement.
