100 mm Piston Diameter
The DNC-100-PPV-A-S6 is based on the 100 mm piston-diameter version of the FESTO DNC standards-based cylinder family.
FESTO DNC-100-PPV-A-S6 Cylinder 100mm Bore ISO 15552 120°C Seals
Available in stock (400)
Regular price
$183.31
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | DNC-100-PPV-A-S6 |
| Product Category | Cylinder |
| Series | DNC |
| Product Type | Standards-based cylinder |
| Standard | ISO 15552 |
| Piston Diameter | 100 mm |
| Mode of Operation | Double-acting |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Position Sensing | Via proximity switch |
| Seal Version | S6 heat-resistant seals |
| Maximum Seal Temperature | 120°C |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Operating Pressure | 0.6-10 bar |
| Pneumatic Connection | G1/2 |
| Theoretical Force at 6 Bar, Advancing | 4712 N |
| Theoretical Force at 6 Bar, Retracting | 4418 N |
| Maximum Impact Energy at End Positions | 1.2 J |
Key Features
ISO 15552 Design
The DNC series is designed as a standards-based pneumatic cylinder according to ISO 15552.
Double-Acting Operation
The cylinder uses double-acting pneumatic operation for powered movement in both extension and retraction directions.
Adjustable Pneumatic Cushioning
The PPV configuration provides adjustable pneumatic cushioning at both ends to control piston deceleration near the end positions.

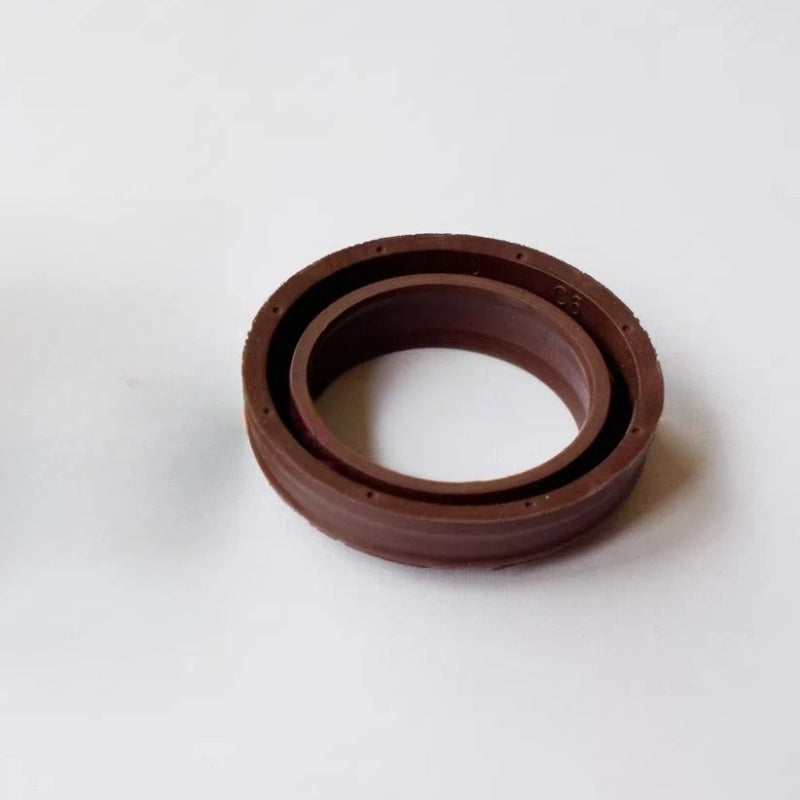

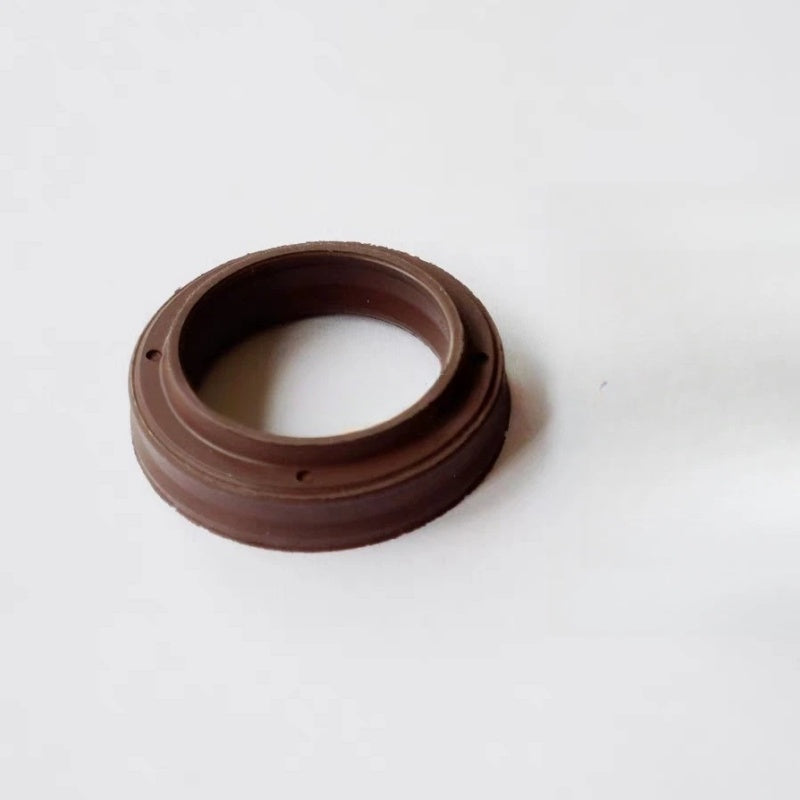

Heat-Resistant S6 Seals
The S6 variant uses heat-resistant seals specified for temperatures up to a maximum of 120°C.
G1/2 Pneumatic Connection
The documented pneumatic connection for the 100 mm DNC cylinder size is G1/2.
Applications
- Industrial pneumatic motion systems
- Automated assembly machinery
- Material handling equipment
- Packaging and processing machinery
- Production-line automation
- Machine positioning systems
- Pneumatic clamping and pushing applications
- Higher-temperature pneumatic environments requiring S6 seals
Purchase Information
We support online purchase of the FESTO DNC-100-PPV-A-S6 Cylinder. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO DNC-100-PPV-A-S6?
It is a double-acting standards-based pneumatic cylinder from the FESTO DNC series with a 100 mm piston diameter, adjustable pneumatic cushioning and S6 heat-resistant seals.
Which standard does the DNC series follow?
The DNC standards-based cylinder family is designed according to ISO 15552.
What is the piston diameter?
The documented piston diameter for DNC-100-PPV-A-S6 is 100 mm.
What does PPV indicate?
PPV denotes pneumatic cushioning that is adjustable at both ends.
What does A indicate in the model designation?
The A configuration indicates provision for position sensing via a proximity switch.
What does S6 indicate?
S6 denotes the heat-resistant seal version, specified for temperatures up to a maximum of 120°C.
What operating pressure is specified?
For the 100 mm DNC cylinder size, the documented operating pressure range is 0.6 to 10 bar.
What pneumatic connection does it use?
The documented pneumatic connection for the 100 mm DNC size is G1/2.
What theoretical force is available at 6 bar?
The documented theoretical force is 4712 N when advancing and 4418 N when retracting.
What operating medium is specified?
The cylinder is specified for compressed air to ISO 8573-1:2010 [7:4:4].
Can DNC-100-PPV-A-S6 replace another DNC cylinder?
It can be considered after the complete model number and technical requirements have been checked. Bore size, stroke, cushioning, position sensing, seal version, pneumatic connection and installation dimensions should be verified against the existing system requirements.
What should be checked before ordering?
The pneumatic, mechanical and installation requirements should be checked before ordering, including the complete model number, 100 mm bore, required stroke, ISO 15552 mounting requirements, G1/2 connection and S6 heat-resistant seal requirements.
