5/2-Way Monostable Valve
The CPE24-M1H-5L-3/8 uses a documented 5/2-way monostable valve function with electrical actuation and pneumatic spring reset.

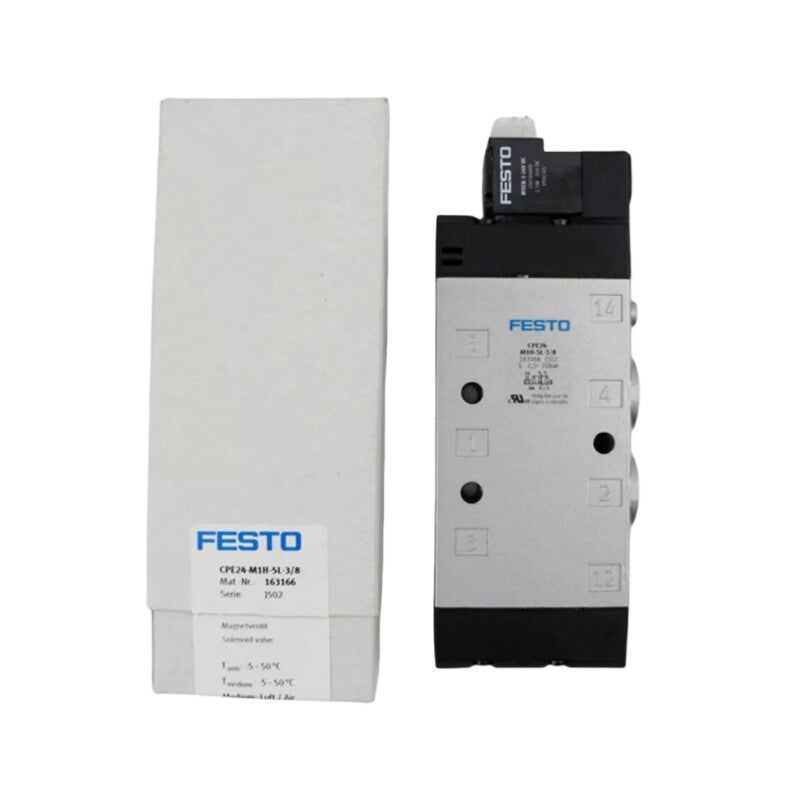

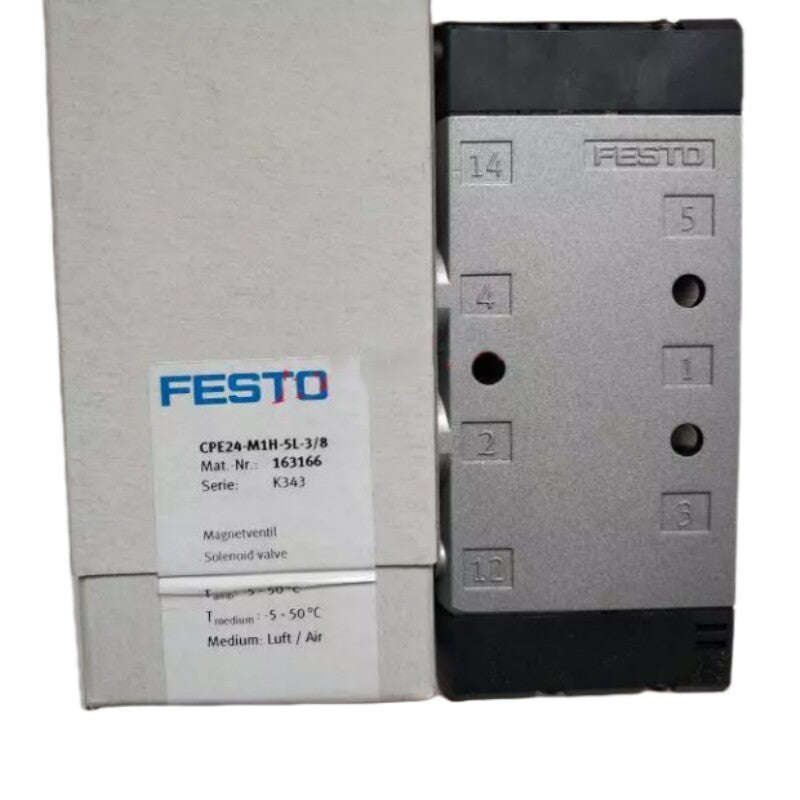

Festo CPE24-M1H-5L-3/8 Air Solenoid Valve 24VDC G3/8 2900L/min
Available in stock (200)
Regular price
$88.18
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Festo |
| Model Number | CPE24-M1H-5L-3/8 |
| Product Category | Air Solenoid Valve |
| Part Number | 163166 |
| Valve Function | 5/2-Way, Monostable |
| Actuation Type | Electrical |
| Construction Width | 24 mm |
| Normal Nominal Flow Rate | 2900 l/min |
| Pneumatic Working Port | G3/8 |
| Operating Voltage | 24 VDC |
| Operating Pressure | 2.5-10 bar |
| Structural Design | Piston Gate Valve |
| Reset Method | Pneumatic Spring |
| Nominal Width | 11 mm |
| Protection Rating | IP65 with Plug Socket |
| Sealing Principle | Soft |
| Mounting Position | Any |
| Type of Control | Pilot-Controlled |
| Pilot Air Supply | Internal |
| Flow Direction | Non-Reversible |
| Switching Time On | 40 ms |
| Switching Time Off | 50 ms |
| Duty Cycle | 100% |
| Coil Characteristics | 24 VDC, 1.5 W |
| Permissible Voltage Fluctuation | -15% / +10% |
| Operating Medium | Compressed Air to ISO 8573-1:2010 [7:4:4] |
Key Features
2900L/min Nominal Flow
Festo specifies a normal nominal flow rate of 2900 l/min under the documented DIN 1343 reference conditions.
24VDC Electrical Actuation
The valve uses a 24 VDC operating voltage with documented coil characteristics of 1.5 W.
G3/8 Working Port
The documented pneumatic working-port size is G3/8 with an 11 mm nominal valve width.
2.5-10bar Operating Pressure
The documented operating-pressure range extends from 2.5 to 10 bar.
40ms On Switching Time
The published switching data specifies an on switching time of 40 ms and an off switching time of 50 ms.
Applications
- Pneumatic cylinder control
- Industrial machine automation
- Compressed-air actuator control
- Material handling equipment
- Packaging machinery pneumatics
- Assembly equipment control
- Production equipment pneumatics
- Industrial directional air control
Purchase Information
We support online purchase of the Festo CPE24-M1H-5L-3/8 Air Solenoid Valve. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Festo CPE24-M1H-5L-3/8?
Festo CPE24-M1H-5L-3/8 is an electrically actuated 5/2-way monostable air solenoid valve with pneumatic spring reset.
What is the part number of CPE24-M1H-5L-3/8?
The documented Festo part number is 163166.
What voltage does CPE24-M1H-5L-3/8 use?
The documented operating voltage is 24 VDC.
What is the nominal flow rate of CPE24-M1H-5L-3/8?
The documented normal nominal flow rate is 2900 l/min under the specified reference conditions.
What working-port size does CPE24-M1H-5L-3/8 use?
The documented pneumatic working-port size is G3/8.
What operating pressure does CPE24-M1H-5L-3/8 support?
The documented operating-pressure range is 2.5 to 10 bar.
What is the valve function of CPE24-M1H-5L-3/8?
Festo specifies a 5/2-way monostable valve function.
How does CPE24-M1H-5L-3/8 reset?
The documented reset method is a pneumatic spring.
What are the switching times of CPE24-M1H-5L-3/8?
The documented on switching time is 40 ms and the off switching time is 50 ms.
What protection rating does CPE24-M1H-5L-3/8 have?
The documented degree of protection is IP65 when used with the specified plug socket.
What applications can CPE24-M1H-5L-3/8 be considered for?
It can be considered for pneumatic actuator and directional compressed-air control applications after the valve function, flow requirement, operating pressure, voltage and port configuration have been checked.
What should be checked before ordering CPE24-M1H-5L-3/8?
Check the complete model and part number, 5/2-way monostable function, 24 VDC coil, G3/8 working ports, 2900 l/min nominal flow, 2.5 to 10 bar operating pressure and pneumatic-system requirements before ordering.
