5/2-Way Monostable Function
The CPE10-M1BH-5L-QS-6 uses a 5/2-way monostable valve function for directional control in pneumatic circuits.

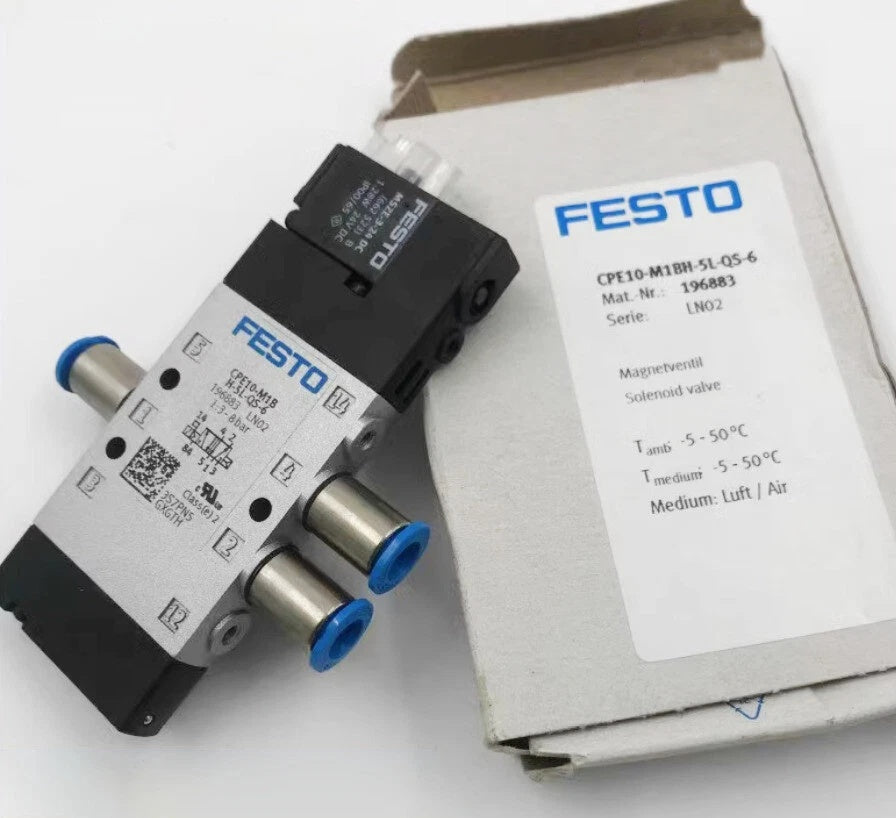

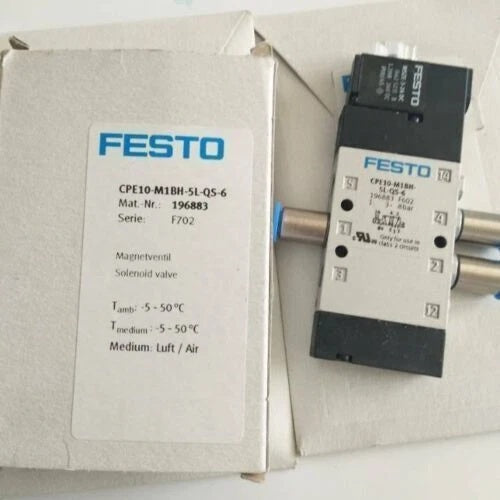

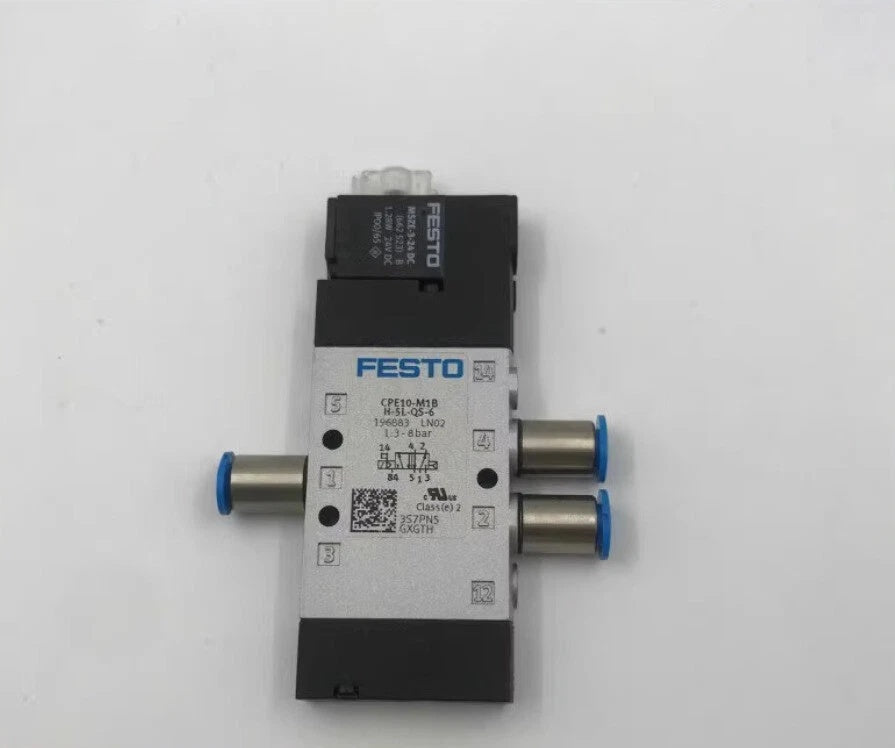

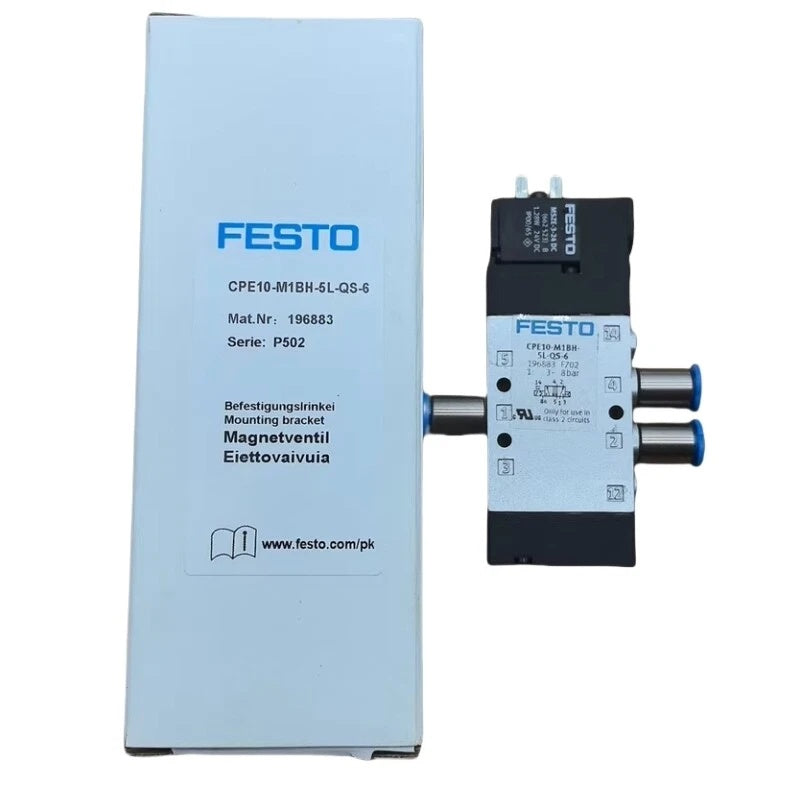

FESTO CPE10-M1BH-5L-QS-6 Solenoid Valve 5/2-Way 24V DC 320 l/min
Available in stock (400)
Regular price
$44.83
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | CPE10-M1BH-5L-QS-6 |
| Product Category | Solenoid Valve |
| Part Number | 196883 |
| Series | CPE10 |
| Valve Function | 5/2-way, monostable |
| Actuation Type | Electrical |
| Width | 10 mm |
| Standard Nominal Flow Rate | 320 l/min |
| Pneumatic Working Port | QS-6 |
| Operating Voltage | 24 V DC |
| Operating Pressure | 3-8 bar |
| Structural Design | Piston gate valve |
| Reset Method | Pneumatic spring |
| Degree of Protection | IP65 with plug socket |
| Nominal Width | 4 mm |
| Exhaust-Air Function | With flow control option |
| Sealing Principle | Soft |
| Mounting Position | Any |
| Manual Override | Non-detenting; detenting via accessory |
| Type of Control | Pilot-controlled |
| Pilot Air Supply | Internal |
| Flow Direction | Non-reversible |
| Switching Time Off | 20 ms |
| Switching Time On | 16 ms |
| Duty Cycle | 100% in combination with holding current reduction |
| Coil Data | 24 V DC, 1.28 W |
| Permissible Voltage Fluctuation | -15%/+10% |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Electrical Connection | 2-pin |
| Mounting Type | With through-hole |
| Pneumatic Port 1 | QS-6 |
| Pneumatic Port 2 | QS-6 |
| Pneumatic Port 3 | M7 |
| Pneumatic Port 4 | QS-6 |
| Pneumatic Port 5 | M7 |
| Seal Material | NBR |
| Housing Material | Die-cast aluminium |
Key Features
24 V DC Actuation
The valve is electrically actuated with a documented operating voltage of 24 V DC and characteristic coil data of 1.28 W.
320 l/min Nominal Flow
The documented standard nominal flow rate is 320 l/min, standardized according to DIN 1343.
QS-6 Working Ports
The pneumatic working ports use QS-6 push-in connections for 6 mm tubing in suitable compressed-air circuits.
Pilot-Controlled Design
The valve uses pilot control with an internal pilot air supply and pneumatic spring reset.
10 mm Valve Width
The CPE10 configuration has a documented width of 10 mm for installation in compact pneumatic control arrangements.
Applications
- Pneumatic directional control circuits
- Pneumatic actuator control
- Automated assembly machinery
- Material handling equipment
- Packaging and processing machinery
- Production automation systems
- Compact compressed-air control circuits
- General industrial pneumatic applications
Purchase Information
We support online purchase of the FESTO CPE10-M1BH-5L-QS-6 Solenoid Valve. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO CPE10-M1BH-5L-QS-6?
It is an electrically actuated pneumatic solenoid valve with a 5/2-way monostable valve function.
What is the FESTO part number?
The documented part number is 196883.
What operating voltage does the valve use?
The documented operating voltage is 24 V DC.
What is the standard nominal flow rate?
The documented standard nominal flow rate is 320 l/min.
What is the operating pressure range?
The documented operating pressure range is 3 to 8 bar.
What pneumatic working connection is used?
The pneumatic working ports use QS-6 push-in connections.
How is the valve reset?
The valve uses a pneumatic spring reset.
What type of control does it use?
The valve is pilot-controlled with an internal pilot air supply.
What is the degree of protection?
The documented degree of protection is IP65 when used with the specified plug socket.
What electrical connection does it use?
The documented electrical connection is 2-pin.
Can CPE10-M1BH-5L-QS-6 replace another CPE10 valve?
It can be considered after the complete model number and technical requirements have been checked, including valve function, operating voltage, pressure range, pneumatic connections, electrical connection and mounting requirements.
What should be checked before ordering?
The electrical, pneumatic, mechanical and installation requirements should be checked before ordering, including the complete model number, 5/2-way monostable function, 24 V DC supply, QS-6 working ports and 3-8 bar operating pressure.
