DeviceNet Fieldbus Interface
The CP-FB11-E provides communication between the FESTO CP installation system and a higher-level DeviceNet control network.
1 / 9
Festo

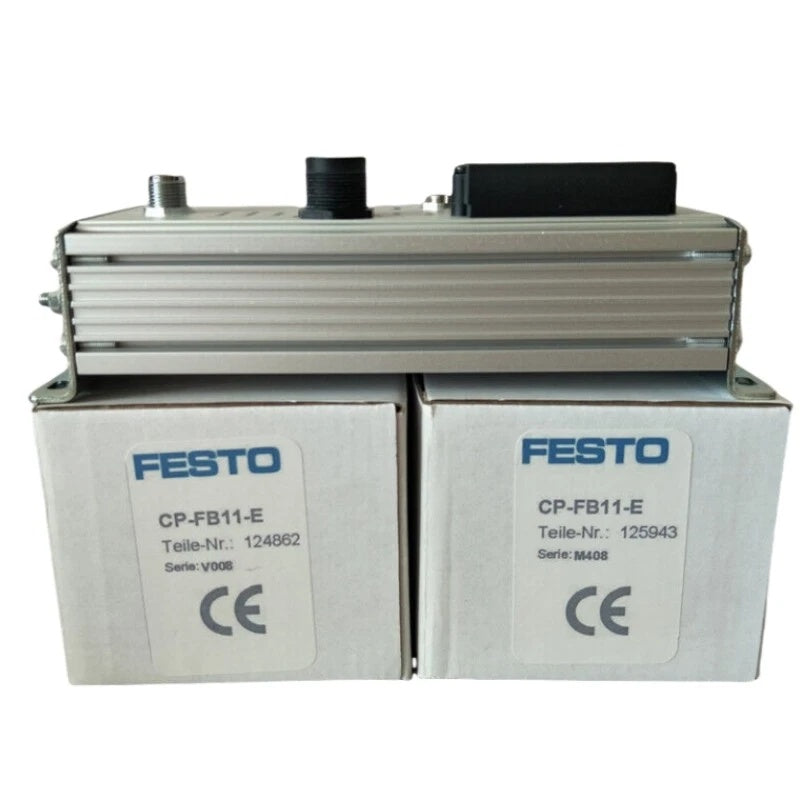

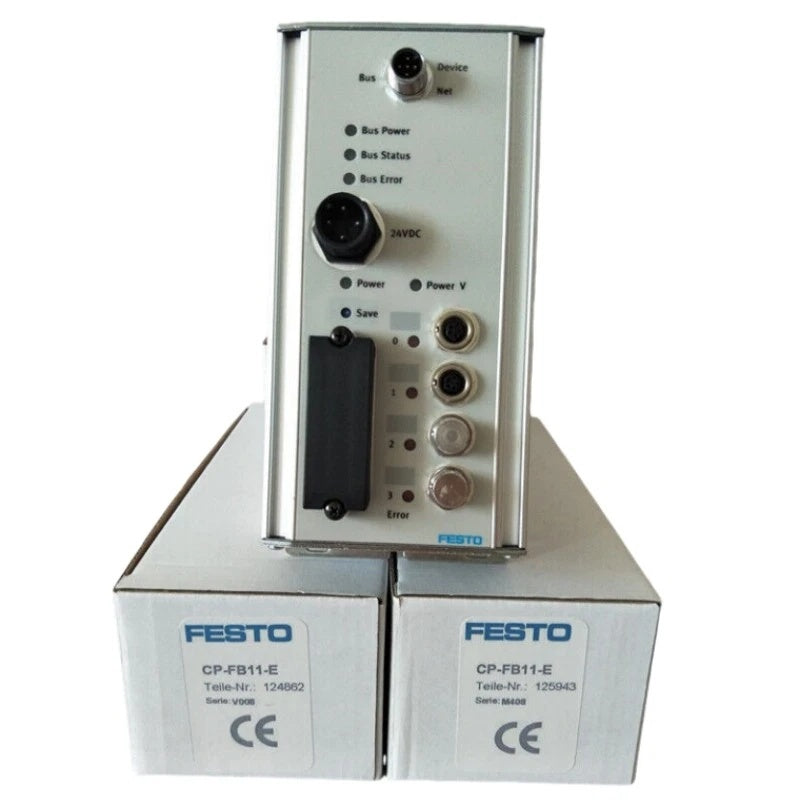

FESTO CP-FB11-E Interface Module DeviceNet 24V DC IP65
PRODUCT PRICE
USD
$639.62
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | FESTO |
| Model Number | CP-FB11-E |
| Product Category | Interface Module |
| Part Number | 18227 |
| Product Type | Fieldbus node / communication interface |
| Fieldbus Protocol | DeviceNet |
| System | CP installation system |
| Baud Rates | 125, 250, 500 kbps |
| Addressing Range | 0-63 |
| Communication Types | Polling, COS, Bit Strobe |
| Maximum Solenoid Coils | 64 |
| Maximum Outputs and Solenoid Coils | 64 |
| Maximum Inputs | 64 |
| Nominal Operating Voltage | 24 V DC |
| Permissible Operating Voltage | 20.4-26.4 V DC |
| Power Failure Buffering | 20 ms |
| Fieldbus Node Current Consumption | 250 mA |
| Degree of Protection | IP65 |
| DeviceNet Connection | 5-pin M12 |
| Dimensions | 196.4 x 88 x 61.5 mm |
| Grid Dimension | 72 mm |
| Product Weight | 950 g |
| Housing Material | Die-cast aluminium |
Key Features
Selectable Baud Rates
The fieldbus node supports 125, 250 and 500 kbps communication rates for integration into suitable DeviceNet networks.
Up to 64 Inputs and Outputs
The CP-FB11-E supports up to 64 digital inputs and 64 digital outputs, including a maximum of 64 solenoid coils.
24 V DC Supply
The documented nominal operating voltage is 24 V DC, with a permissible operating range of 20.4 to 26.4 V DC.
5-Pin M12 DeviceNet Connection
The fieldbus interface uses a documented 5-pin M12 connection for the DeviceNet network.
IP65 Protection
The CP-FB11-E has a documented IP65 degree of protection for installation in suitable industrial automation environments.
Applications
- DeviceNet industrial communication networks
- FESTO CP installation systems
- Distributed pneumatic automation systems
- Valve terminal communication
- Automated assembly machinery
- Material handling equipment
- Packaging and processing machinery
- Machine control and distributed I/O systems
Purchase Information
We support online purchase of the FESTO CP-FB11-E Interface Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO CP-FB11-E?
It is a DeviceNet fieldbus node and interface module for the FESTO CP installation system.
What is the FESTO part number?
The documented part number is 18227.
Which communication protocol does CP-FB11-E support?
The CP-FB11-E supports DeviceNet fieldbus communication.
What baud rates are supported?
The supported baud rates are 125, 250 and 500 kbps.
What is the DeviceNet addressing range?
The documented addressing range is 0 to 63.
What operating voltage does CP-FB11-E use?
The nominal operating voltage is 24 V DC, with a documented permissible range of 20.4 to 26.4 V DC.
How many inputs and outputs can it handle?
The node supports up to 64 digital inputs and 64 digital outputs, including a maximum of 64 solenoid coils.
What DeviceNet connection does it use?
The documented DeviceNet connection is a 5-pin M12 interface.
What is the degree of protection?
The documented degree of protection is IP65.
What is the operating temperature range?
The documented operating temperature range is -5°C to +50°C.
Can CP-FB11-E replace another CP fieldbus node?
It can be considered after the complete model number and technical requirements have been checked. The communication protocol, addressing, baud rate, power supply, connections and CP system configuration should be verified against the existing system requirements.
What should be checked before ordering?
The electrical, communication, mechanical and installation requirements should be checked before ordering, including the complete model number, DeviceNet protocol, 24 V DC supply, network configuration and CP system requirements.
