Compact Cylinder Design
The ADVU/AEVU series provides a compact pneumatic cylinder design for space-saving industrial automation applications.
1 / 10
Festo

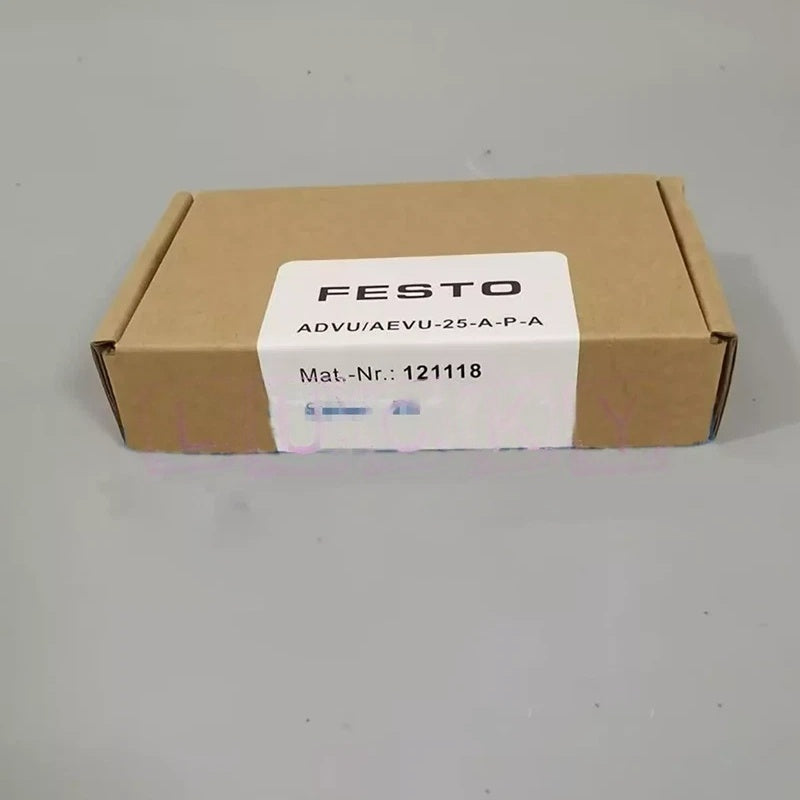

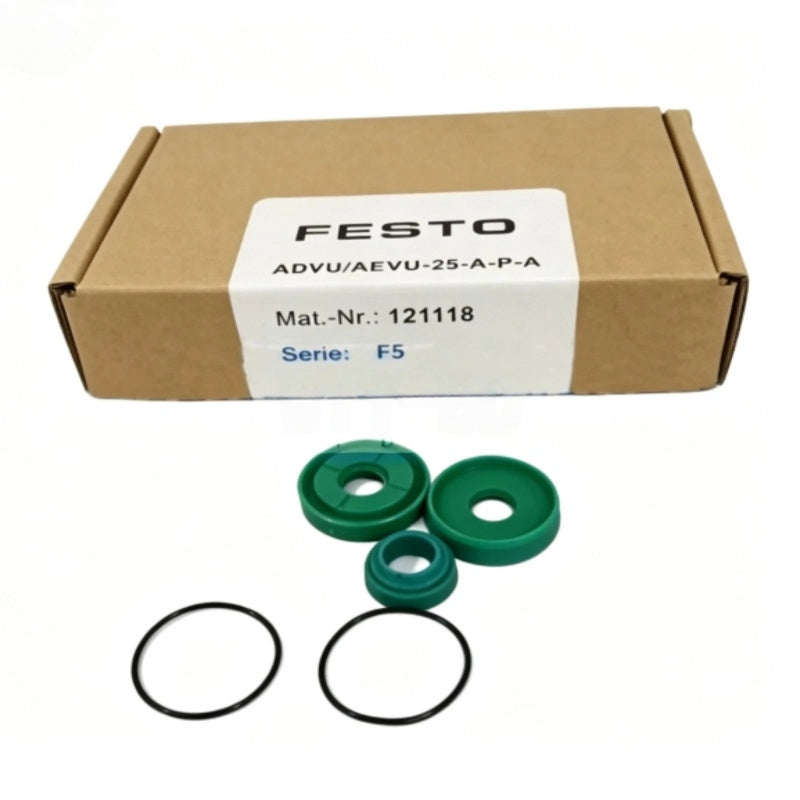

FESTO ADVU/AEVU-25-A-P-A Compact Cylinder 25mm Bore Pneumatic Cylinder
PRODUCT PRICE
USD
$49.80
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | FESTO |
| Model Number | ADVU/AEVU-25-A-P-A |
| Product Category | Compact Cylinder |
| Series | ADVU/AEVU |
| Piston Diameter | 25 mm |
| Mode of Operation | Double-acting |
| Design | Piston cylinder |
| Cushioning | Elastic cushioning rings at both ends |
| Position Sensing | For proximity sensor |
| Mounting Position | Any |
| Operating Pressure | 1-10 bar |
| Operating Medium | Compressed air according to ISO 8573-1:2010 |
| Piston Rod Thread | M10x1.25 |
| Pneumatic Connection | G1/8 |
| Material | Aluminium alloy cylinder barrel |
Key Features
25 mm Bore Size
The cylinder configuration uses a 25 mm piston diameter for pneumatic linear motion.
Double-Acting Operation
The cylinder uses compressed air for powered movement in both extension and retraction directions.
Integrated Cushioning
Elastic cushioning rings at both ends help reduce impact during cylinder movement.
Sensor Ready
The cylinder design supports position sensing with suitable proximity sensors.
Flexible Installation
The documented mounting position allows installation in any orientation.
Applications
- Compact pneumatic automation systems
- Assembly machinery
- Material handling equipment
- Small positioning mechanisms
- Clamping applications
- Packaging machinery
- Machine building equipment
- Industrial pneumatic control systems
Purchase Information
We support online purchase of the FESTO ADVU/AEVU-25-A-P-A Compact Cylinder. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO ADVU/AEVU-25-A-P-A?
It is a compact pneumatic cylinder from the FESTO ADVU/AEVU series with a 25 mm piston diameter.
What is the bore size?
The documented piston diameter is 25 mm.
What operating mode does it use?
The cylinder uses double-acting pneumatic operation.
What is the operating pressure range?
The documented operating pressure range is 1 to 10 bar.
Does it support position sensing?
Yes. The cylinder is designed for use with suitable proximity sensors.
What pneumatic connection is used?
The documented pneumatic connection is G1/8.
What is the piston rod thread?
The documented piston rod thread is M10x1.25.
Can this cylinder replace another compact cylinder?
Replacement should be confirmed by checking bore size, stroke length, mounting dimensions, pneumatic connections and operating requirements.
What should be checked before ordering?
The complete model number, required stroke, pressure range, installation method and sensor requirements should be verified before ordering.
Need help confirming a model?
Send us your part number and technical requirements.
