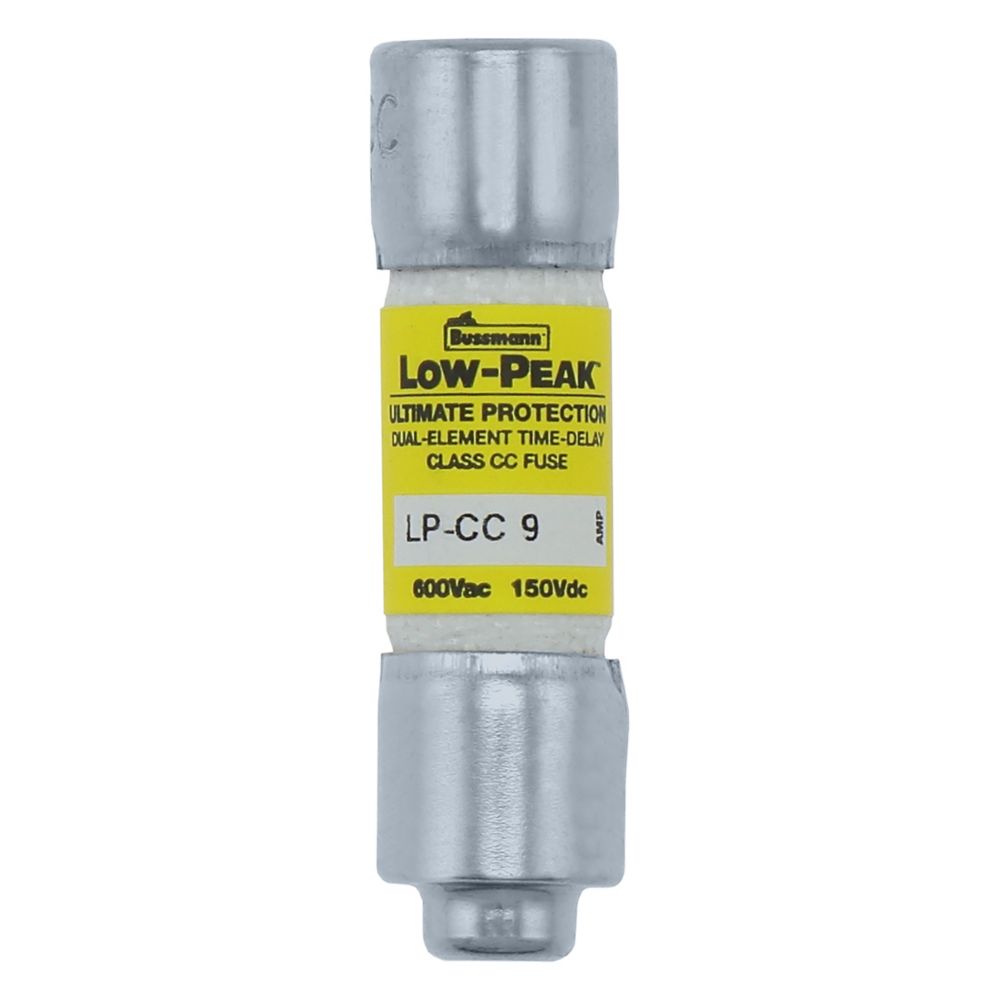

Eaton Bussmann LP-CC-9 Class CC Fuse 9A 600VAC 150VDC

PRODUCT PRICE USD

$6.19

Available to order

Select Option Choose your purchase option

Quantity

Stock: 1000

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.

View Our Return Policy

Payments

Available payment methods

Bank transfer

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Eaton Bussmann
Model Number	LP-CC-9
Product Category	Class CC Fuse
Product Series	Low-Peak LP-CC
Fuse Type	Current-Limiting Time-Delay Fuse
Fuse Class	Class CC
Amperage Rating	9 A
AC Voltage Rating	600 VAC
DC Voltage Rating	150 VDC
AC Interrupt Rating	200 kA RMS Sym.
DC Interrupt Rating	20 kA
Time Delay	12 Seconds Minimum at 200% Rated Current
Special Feature	Rejection Type
Dimensions	10 x 38 mm

Key Features

9A Current Rating

The LP-CC-9 has a documented current rating of 9 A for Class CC circuit-protection applications.

600VAC / 150VDC Rating

Eaton specifies voltage ratings of 600 VAC and 150 VDC for the LP-CC-9 configuration.

200kA AC Interrupt Rating

The LP-CC series specifies an AC interrupt rating of 200 kA RMS symmetrical.

20kA DC Interrupt Rating

The documented DC interrupt rating for the LP-CC series is 20 kA.

Time-Delay Operation

The fuse has a documented time-delay characteristic of at least 12 seconds at 200% of rated current.

Class CC Rejection Design

The LP-CC-9 uses the Class CC rejection-type configuration for use with appropriate Class CC fuse holders.

Applications

Industrial control circuits
Small motor circuits
Relay control circuits
Industrial control panels
Branch circuit protection
Specialized electrical circuits
Industrial machinery circuits
Class CC fuse applications

Purchase Information

We support online purchase of the Eaton Bussmann LP-CC-9 Class CC Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is Eaton Bussmann LP-CC-9?
Eaton Bussmann LP-CC-9 is a Class CC current-limiting time-delay fuse rated at 9 A.

What is the amperage rating of LP-CC-9?
The documented amperage rating is 9 A.

What AC voltage rating does LP-CC-9 have?
The documented AC voltage rating is 600 VAC.

What DC voltage rating does LP-CC-9 have?
The documented DC voltage rating for the 9 A model is 150 VDC.

What is the AC interrupt rating of LP-CC-9?
The documented AC interrupt rating is 200 kA RMS symmetrical.

What is the DC interrupt rating of LP-CC-9?
The documented DC interrupt rating is 20 kA.

Is LP-CC-9 a time-delay fuse?
Yes. The LP-CC-9 is part of the LP-CC Class CC current-limiting time-delay fuse series.

What time-delay characteristic is specified for LP-CC-9?
The documented time-delay characteristic is a minimum of 12 seconds at 200% of rated current.

What are the dimensions of LP-CC-9?
The documented LP-CC fuse dimensions are approximately 10 mm in diameter and 38 mm in length.

Does LP-CC-9 use a rejection-type configuration?
Yes. The LP-CC series uses a Class CC rejection feature intended for appropriate Class CC fuse holders.

What applications can LP-CC-9 be considered for?
It can be considered for industrial controls, small motor and relay circuits, specialized circuits and other Class CC circuit-protection applications after the electrical requirements have been checked.

What should be checked before ordering LP-CC-9?
Check the complete model number, 9 A rating, 600 VAC or 150 VDC circuit requirement, Class CC holder configuration, interrupt rating and required time-delay characteristics before ordering.
