Eaton Bussmann

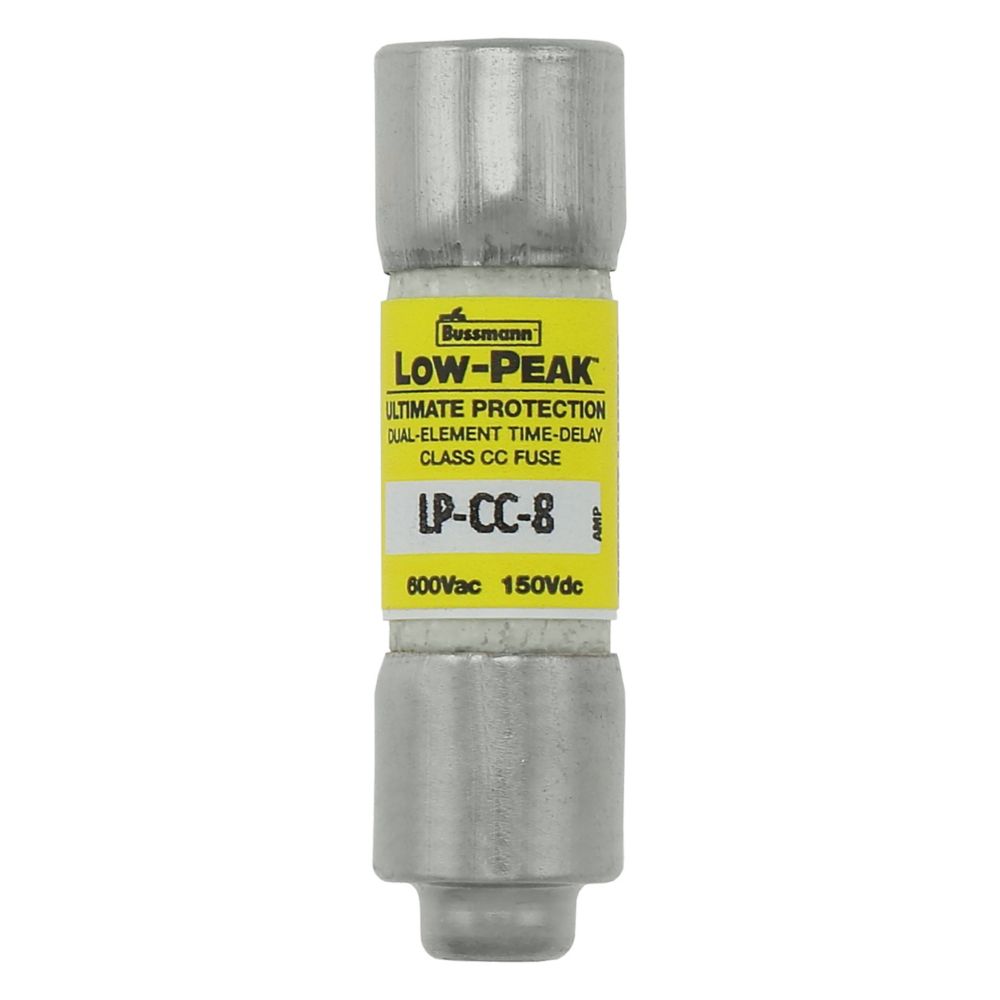

Eaton Bussmann LP-CC-8 Class CC Fuse 8A 600VAC 150VDC

PRODUCT PRICE USD

$6.19

Available to order

Select Option Choose your purchase option

Quantity

Stock: 1000

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.

View Our Return Policy

Payments

Available payment methods

Bank transfer

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Eaton Bussmann
Model Number	LP-CC-8
Product Category	Class CC Fuse
Product Series	Low-Peak LP-CC
Fuse Type	Current-Limiting Time-Delay Fuse
Fuse Class	Class CC
Amperage Rating	8 A
AC Voltage Rating	600 VAC
DC Voltage Rating	150 VDC
AC Interrupt Rating	200 kAIC at 600 VAC
DC Interrupt Rating	20 kAIC at 150 VDC
Response Time	12 Seconds at 200% Rated Current
Number of Elements	Dual
Connection	Ferrule End x Ferrule End
Fuse Indicator	Non-Indicating
Tube Material	Melamine
Special Feature	Rejection Style
Length	38.1 mm
Height	10.4 mm
Width	10.4 mm

Key Features

8A Current Rating

The LP-CC-8 has a documented current rating of 8 A for Class CC circuit-protection applications.

600VAC / 150VDC Rating

Eaton specifies voltage ratings of 600 VAC and 150 VDC for the LP-CC-8.

200kA AC Interrupt Rating

The documented interrupt rating is 200 kAIC at the specified 600 VAC rating.

20kA DC Interrupt Rating

The documented DC interrupt rating is 20 kAIC at the specified 150 VDC rating.

Time-Delay Operation

The LP-CC-8 uses a documented response time of 12 seconds at 200% of rated current.

Class CC Rejection Design

The LP-CC-8 uses a Class CC rejection-style configuration for applicable Class CC fuse holders.

Applications

Specialized electrical circuits
Industrial control circuits
Industrial control panels
Small motor circuits
Relay control circuits
Branch circuit protection
Industrial machinery circuits
Class CC fuse applications

Purchase Information

We support online purchase of the Eaton Bussmann LP-CC-8 Class CC Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is Eaton Bussmann LP-CC-8?
Eaton Bussmann LP-CC-8 is an 8 A Class CC current-limiting time-delay fuse with AC and DC voltage ratings.

What is the amperage rating of LP-CC-8?
The documented amperage rating is 8 A.

What AC voltage rating does LP-CC-8 have?
The documented AC voltage rating is 600 VAC.

What DC voltage rating does LP-CC-8 have?
The documented DC voltage rating is 150 VDC.

What is the AC interrupt rating of LP-CC-8?
The documented interrupt rating is 200 kAIC at 600 VAC.

What is the DC interrupt rating of LP-CC-8?
The documented interrupt rating is 20 kAIC at 150 VDC.

Is LP-CC-8 a time-delay fuse?
Yes. Eaton identifies the LP-CC-8 as a current-limiting time-delay Class CC fuse.

What response time is specified for LP-CC-8?
The documented response time is 12 seconds at 200% of rated current.

What connection configuration does LP-CC-8 use?
The documented connection is ferrule end to ferrule end.

What material is used for the LP-CC-8 fuse tube?
Eaton specifies a melamine tube.

What applications can LP-CC-8 be considered for?
Eaton identifies specialized circuits and industrial control as applications. It can also be considered for appropriate Class CC protection systems after the circuit current, voltage and interrupt requirements have been checked.

What should be checked before ordering LP-CC-8?
Check the complete model number, 8 A current rating, 600 VAC or 150 VDC circuit requirement, Class CC fuse-holder configuration, interrupt rating and required time-delay characteristics before ordering.
