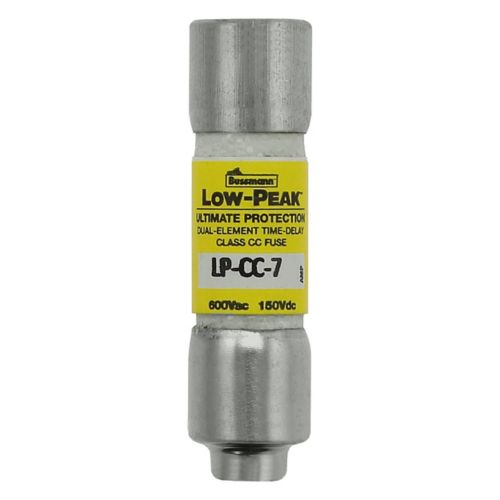

Eaton Bussmann LP-CC-7 Class CC 7A 600V time-delay fuse

Eaton Bussmann LP-CC-7 Class CC Fuse 7A 600VAC 150VDC

Eaton Bussmann LP-CC-7 Class CC Fuse 7A 600VAC 150VDC

Fast Quote
Global Shipping
Bulk Order Support

Available in stock (1000)

$3.90

~~$0.00~~

Shipping calculated at checkout.

Quantity: 1PC

1PC 10PCS

Request a Quote

In Stock
Free Returns And Exchanges Within 30 days
Bulk purchases are eligible for price discounts.

Brand	Eaton Bussmann
Model Number	LP-CC-7
Product Category	Class CC Fuse
Product Series	Low-Peak LP-CC
Fuse Type	Current-Limiting Time-Delay Fuse
Fuse Class	Class CC
Amperage Rating	7 A
AC Voltage Rating	600 VAC
DC Voltage Rating	150 VDC
AC Interrupt Rating	200 kAIC at 600 VAC
DC Interrupt Rating	20 kAIC at 150 VDC
Time Delay	12 Seconds at 200% Rated Current
Number of Elements	Dual
Connection	Ferrule End x Ferrule End
Fuse Indicator	Non-Indicating
Tube Material	Melamine
Special Feature	Rejection Style
Dimensions	Approx. 10.3 x 38.1 mm

Key Features

7A Current Rating

The LP-CC-7 has a documented current rating of 7 A for Class CC circuit-protection applications.

600VAC / 150VDC Rating

Eaton specifies voltage ratings of 600 VAC and 150 VDC for the LP-CC-7.

200kA AC Interrupt Rating

The documented interrupt rating is 200 kAIC at the specified 600 VAC rating.

20kA DC Interrupt Rating

The documented DC interrupt rating is 20 kAIC at the specified 150 VDC rating.

Time-Delay Operation

The LP-CC-7 uses a documented time-delay characteristic of 12 seconds at 200% of rated current.

Class CC Rejection Design

The LP-CC-7 uses a Class CC rejection-style configuration for applicable Class CC fuse holders.

Applications

Specialized electrical circuits
Industrial control circuits
Industrial control panels
Small motor circuits
Relay control circuits
Branch circuit protection
Industrial machinery circuits
Class CC fuse applications

Purchase Information

We support online purchase of the Eaton Bussmann LP-CC-7 Class CC Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is Eaton Bussmann LP-CC-7?
Eaton Bussmann LP-CC-7 is a 7 A Class CC current-limiting time-delay fuse with AC and DC voltage ratings.

What is the amperage rating of LP-CC-7?
The documented amperage rating is 7 A.

What AC voltage rating does LP-CC-7 have?
The documented AC voltage rating is 600 VAC.

What DC voltage rating does LP-CC-7 have?
The documented DC voltage rating is 150 VDC.

What is the AC interrupt rating of LP-CC-7?
The documented interrupt rating is 200 kAIC at 600 VAC.

What is the DC interrupt rating of LP-CC-7?
The documented interrupt rating is 20 kAIC at 150 VDC.

Is LP-CC-7 a time-delay fuse?
Yes. Eaton identifies LP-CC-7 as a current-limiting time-delay Class CC fuse.

What time-delay characteristic is specified for LP-CC-7?
The documented response time is 12 seconds at 200% of rated current.

What connection configuration does LP-CC-7 use?
The documented connection is ferrule end to ferrule end.

What are the dimensions of LP-CC-7?
The documented dimensions are approximately 10.3 mm in diameter and 38.1 mm in length.

What applications can LP-CC-7 be considered for?
Eaton identifies specialized circuits and industrial control as applications. It can also be considered within appropriate Class CC protection systems after circuit current, voltage and protection requirements have been checked.

What should be checked before ordering LP-CC-7?
Check the complete model number, 7 A current rating, 600 VAC or 150 VDC circuit requirement, Class CC fuse-holder configuration, interrupt rating and required time-delay characteristics before ordering.
