Eaton Bussmann

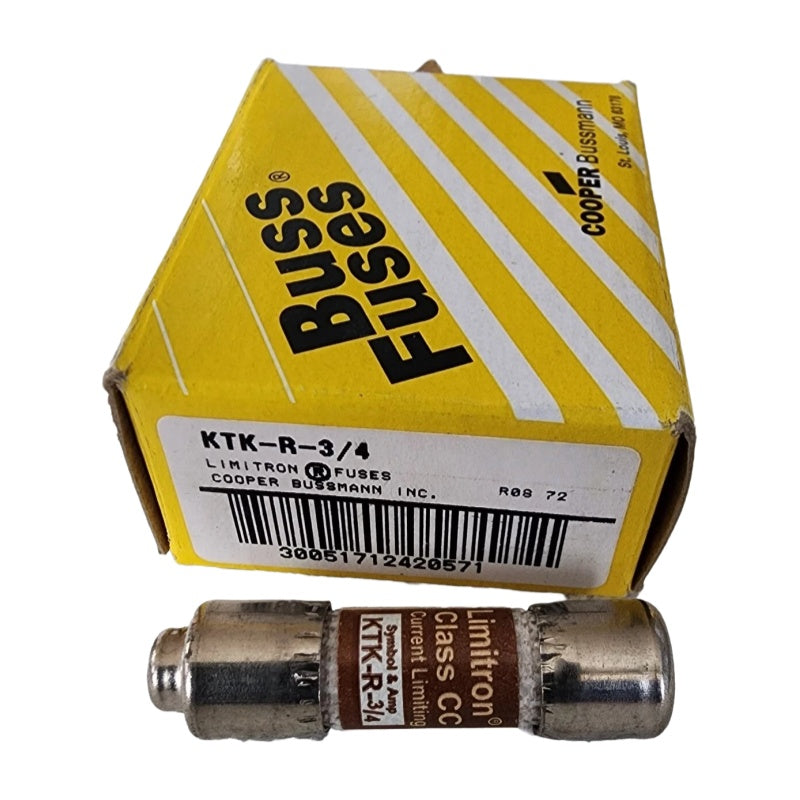

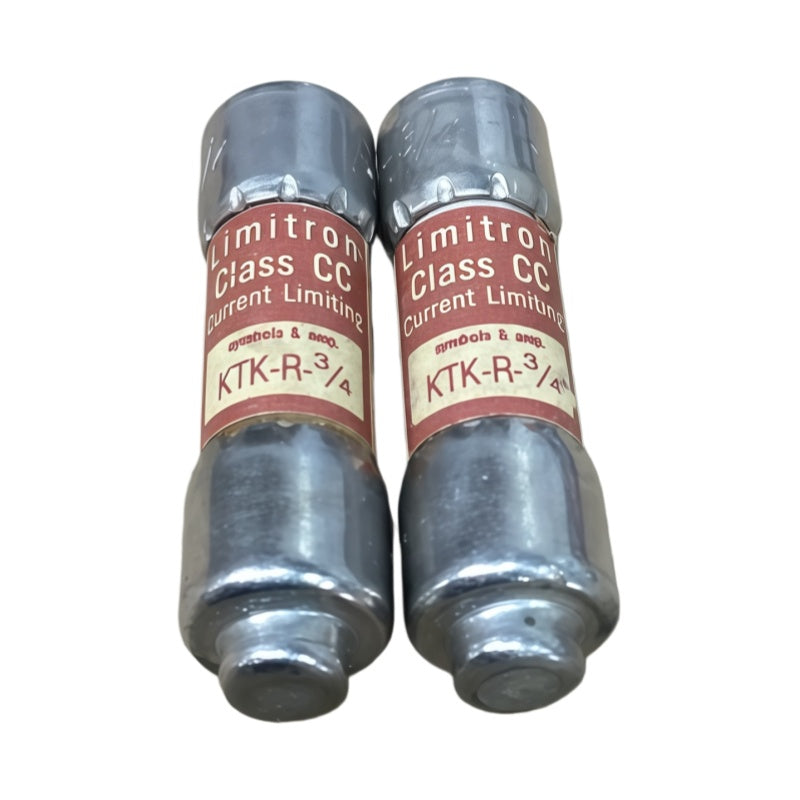

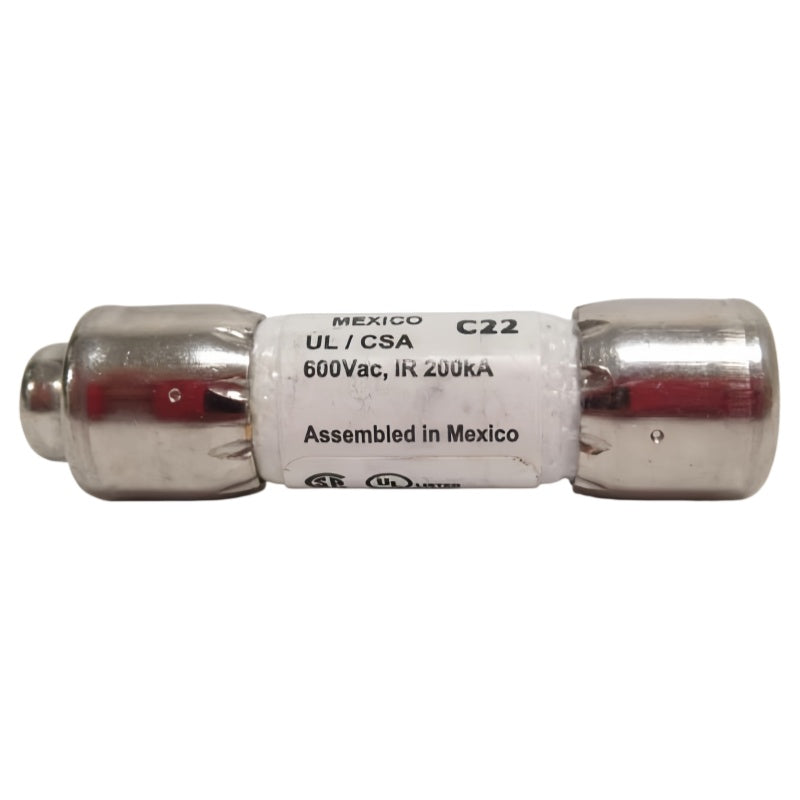

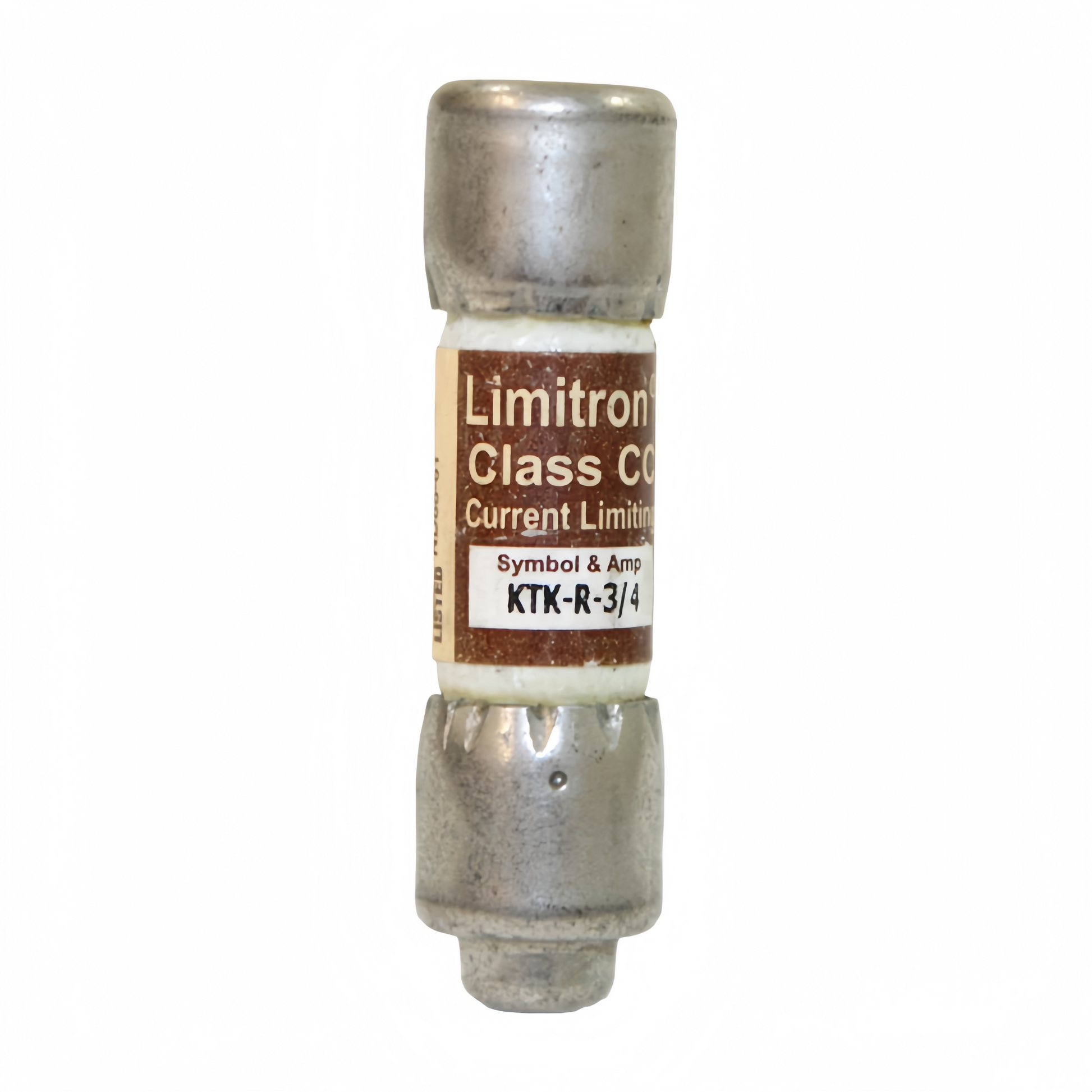

Eaton Bussmann KTK-R-3/4 Class CC Fuse 0.75A 600VAC 200kA

PRODUCT PRICE USD

$6.19

Available to order

Select Option Choose your purchase option

Quantity

Stock: 1000

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.

View Our Return Policy

Payments

Available payment methods

Bank transfer

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Eaton Bussmann
Model Number	KTK-R-3/4
Product Category	Class CC Fuse
Product Series	LIMITRON KTK-R
Fuse Type	Current-Limiting Fast-Acting Fuse
Fuse Class	Class CC
Amperage Rating	0.75 A
Voltage Rating	600 VAC
Interrupt Rating	200 kA RMS Sym.
Mounting Type	Cartridge
Terminal Type	Ferrule
Tube Material	Melamine
Special Feature	Rejection Type
Diameter	10.3 mm
Length	38.1 mm

Key Features

0.75A Current Rating

The KTK-R-3/4 has a documented current rating of 0.75 A for Class CC circuit-protection applications.

600VAC Rating

The documented voltage rating for the KTK-R-3/4 is 600 VAC.

200kA Interrupt Rating

The documented interrupt rating is 200 kA RMS symmetrical.

Fast-Acting Operation

The KTK-R-3/4 is specified as a current-limiting fast-acting Class CC fuse.

Ferrule Terminals

The documented cartridge configuration uses ferrule terminals with a 10.3 mm diameter body.

Rejection Type

The KTK-R series uses a rejection-type Class CC configuration for appropriate fuse holders.

Applications

Specialized electrical circuits
Industrial control circuits
Industrial control panels
Industrial machinery circuits
Isolated in-line fuse holders
Street lighting circuits
Branch circuit protection
Class CC fuse applications

Purchase Information

We support online purchase of the Eaton Bussmann KTK-R-3/4 Class CC Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is Eaton Bussmann KTK-R-3/4?
Eaton Bussmann KTK-R-3/4 is a 0.75 A, 600 VAC Class CC current-limiting fast-acting fuse.

What type of product is KTK-R-3/4?
KTK-R-3/4 is a Class CC current-limiting fast-acting cartridge fuse from the LIMITRON KTK-R series.

What is the amperage rating of KTK-R-3/4?
The documented amperage rating is 0.75 A.

What voltage rating does KTK-R-3/4 have?
The documented voltage rating is 600 VAC.

What is the interrupt rating of KTK-R-3/4?
The documented interrupt rating is 200 kA RMS symmetrical.

Is KTK-R-3/4 a fast-acting fuse?
Yes. The KTK-R series is specified as current-limiting fast-acting Class CC fuses.

What terminal type does KTK-R-3/4 use?
The documented terminal type is ferrule.

What material is used for the KTK-R-3/4 fuse tube?
The documented tube material is melamine.

What are the dimensions of KTK-R-3/4?
The documented dimensions are approximately 10.3 mm in diameter and 38.1 mm in length.

What applications can KTK-R-3/4 be considered for?
It can be considered for specialized circuits, industrial controls and panels, isolated in-line fuse holders and other suitable Class CC circuit-protection applications after the electrical requirements have been checked.

What should be verified before using KTK-R-3/4 in an existing system?
The complete model number, 0.75 A current rating, 600 VAC rating, Class CC fuse-holder configuration and circuit-protection requirements should be verified against the existing system requirements.

What should be checked before ordering KTK-R-3/4?
Check the complete model number, 0.75 A current rating, 600 VAC rating, Class CC fuse-holder configuration and required 200 kA interrupt rating before ordering.
