Eaton Bussmann

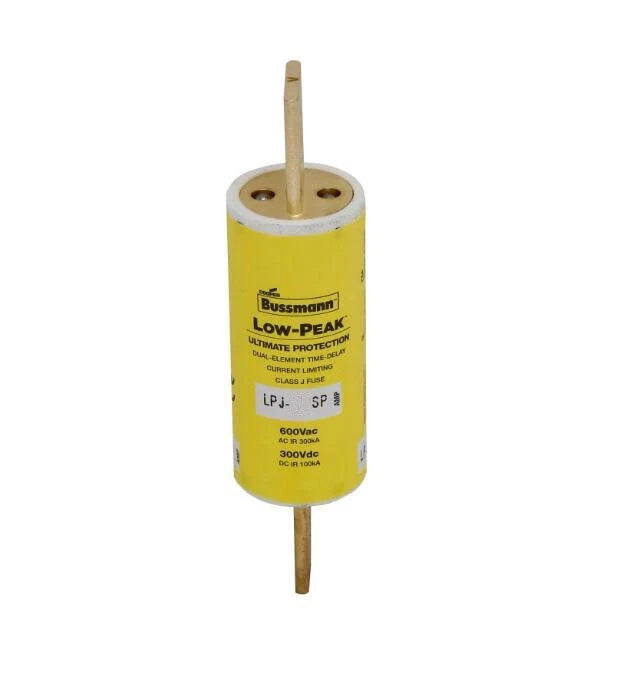

Bussmann LPJ-90SP Class J Fuse

SKU: LL1-BSM-LPJ-90SP

$34.36

Available

PRODUCT GALLERY 01 / 1

✓ Product images for part identification

Eaton Bussmann

Bussmann LPJ-90SP Class J Fuse

SKU: LL1-BSM-LPJ-90SP

PRODUCT PRICE USD

$34.36

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	LPJ-90SP
Product Category	Class J Fuse
Amperage Rating	90 A
Voltage Rating	600 VAC / 300 VDC
Interrupt Rating	300 kA at 600 VAC / 100 kA at 300 VDC
Fuse Class	Class J
Fuse Type	Dual-Element, Time-Delay, Current-Limiting
Response Time	10 seconds at 500% rated current
Connection	Blade end x blade end
Fuse Indicator	Non-indicating
Certifications	UL Listed, CSA Certified

Key Features

Dual-Element Time-Delay

Dual-element construction provides time-delay performance for inductive loads while maintaining current-limiting protection during fault conditions.

Current-Limiting Design

Limits let-through current under short-circuit conditions to help protect downstream equipment in industrial circuits.

High Interrupting Rating

300 kA interrupting rating at 600 VAC and 100 kA at 300 VDC supports application in high available fault current systems.

Class J Blade-Style Format

Blade-end connection is used for higher current Class J applications requiring bolt-on or blade-style mounting.

AC/DC Voltage Rating

Rated for 600 VAC and 300 VDC circuits, allowing use in a range of industrial power and control applications.

Applications

Branch circuit protection
Industrial control panels
Motor branch circuits
Power distribution panelboards
Machinery disconnects
HVAC equipment circuits
Transformer protection
General-purpose industrial circuits

Purchase Information

We support online purchase of the Bussmann LPJ-90SP Class J Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann LPJ-90SP? The LPJ-90SP is a 90 A Class J dual-element time-delay current-limiting fuse rated for 600 VAC and 300 VDC.

What is the voltage rating of the LPJ-90SP? It is rated for 600 VAC and 300 VDC.

What is the interrupting rating of the LPJ-90SP? The fuse has a 300 kA interrupting rating at 600 VAC and 100 kA at 300 VDC.

Is the LPJ-90SP a time-delay fuse? Yes. It is a dual-element time-delay fuse with a response time of 10 seconds at 500% rated current.

Is the LPJ-90SP current-limiting? Yes. The LPJ series is a current-limiting fuse design.

Does the LPJ-90SP have a blown-fuse indicator? No. The LPJ-90SP is a non-indicating fuse.

What type of connection does the LPJ-90SP use? The LPJ-90SP uses blade-end connections.

What certifications does the LPJ-90SP carry? The LPJ-90SP is UL Listed and CSA Certified.

What applications is the LPJ-90SP suitable for? It is commonly used for branch circuit protection, industrial control panels, motor branch circuits, and power distribution panelboards.

What should be checked before ordering the LPJ-90SP? Check the circuit amperage, AC or DC voltage, available fault current, Class J fuse holder or blade mounting requirements, and whether an indicating or non-indicating fuse is required for the installation.
