Bussmann LPJ-8SP Class J Time-Delay Fuse

SKU: LL1-BSM-LPJ-8SP

$18.42

Available

PRODUCT GALLERY 01 / 1

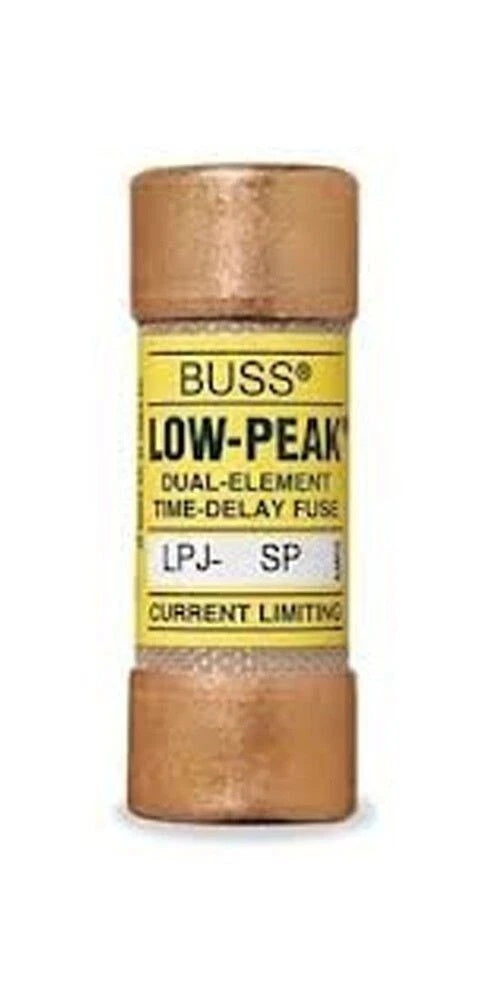

Bussmann LPJ-8SP Class J Time-Delay Fuse

✓ Product images for part identification

Eaton Bussmann

Bussmann LPJ-8SP Class J Time-Delay Fuse

SKU: LL1-BSM-LPJ-8SP

PRODUCT PRICE USD

$18.42

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	LPJ-8SP
Product Category	Class J Time-Delay Fuse
Fuse Class	Class J
Amperage Rating	8 A
Voltage Rating	600 Vac, 300 Vdc
Interrupt Rating	300 kAIC at 600 Vac / 100 kAIC Vdc
Response Time	10 sec at 500%
Fuse Type	Time delay, current-limiting
Number of Elements	Dual
Fuse Indicator	Non-indicating
Connection	Ferrule end x ferrule end
Product Length/Depth	2.25 in
Product Diameter	0.81 in
Body Material	Melamine
Fuse Size (Metric)	20.6 mm x 57.2 mm

Key Features

Class J Dual-Element Time Delay

Dual-element, time-delay current-limiting fuse with a 10-second delay at 500% rated current for motor and high in-rush protection.

300 kA Interrupt Rating at 600 Vac

300 kAIC interrupting rating at 600 Vac and 100 kAIC at 300 Vdc for effective fault current limitation.

8 A Current Rating

8 A continuous current rating for compatible branch circuit and motor protection applications.

Metric and Imperial Dimensions

Fuse size is 20.6 mm x 57.2 mm (13/16 in x 2-1/4 in) for compatibility with standard Class J holders.

Non-Indicating Body

Non-indicating fuse design for holder-mounted installations without visual status indication.

Melamine Construction

Melamine body material for the cylindrical Class J fuse format.

Applications

Motor branch circuit protection
High in-rush current load protection
Industrial control panel fuse protection
Class J fuse holder applications
Branch circuit overcurrent protection
Transformer and solenoid protection
Power distribution equipment
Compatible 600 Vac and 300 Vdc circuits

Purchase Information

We support online purchase of the Bussmann LPJ-8SP Class J Time-Delay Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann LPJ-8SP? The LPJ-8SP is a Bussmann Series Class J time-delay, dual-element current-limiting fuse rated 8 A at 600 Vac and 300 Vdc.

What is the voltage rating of LPJ-8SP? It is rated 600 Vac and 300 Vdc.

What is the interrupt rating of LPJ-8SP? The interrupt rating is 300 kAIC at 600 Vac and 100 kAIC Vdc.

Is LPJ-8SP a time-delay fuse? Yes, it has a 10-second time delay at 500% rated current.

Does LPJ-8SP have dual elements? Yes, it is a dual-element fuse.

Is LPJ-8SP current-limiting? Yes, the fuse is current-limiting.

Is LPJ-8SP indicating? No, it is non-indicating.

What is the body size of LPJ-8SP? The body measures 0.81 in in diameter and 2.25 in in length (20.6 mm x 57.2 mm).

What body material does LPJ-8SP use? The body material is melamine.

What connections does LPJ-8SP use? It uses ferrule end x ferrule end connections.

What should be checked before ordering LPJ-8SP? Verify the 8 A rating, 600 Vac/300 Vdc voltage, Class J holder compatibility, and whether metric or imperial dimensions are required.
