Eaton Bussmann

Bussmann LPJ-6SP Class J Time-Delay Fuse

SKU: LL1-BSM-LPJ-6SP

$18.42

Available

PRODUCT GALLERY 01 / 1

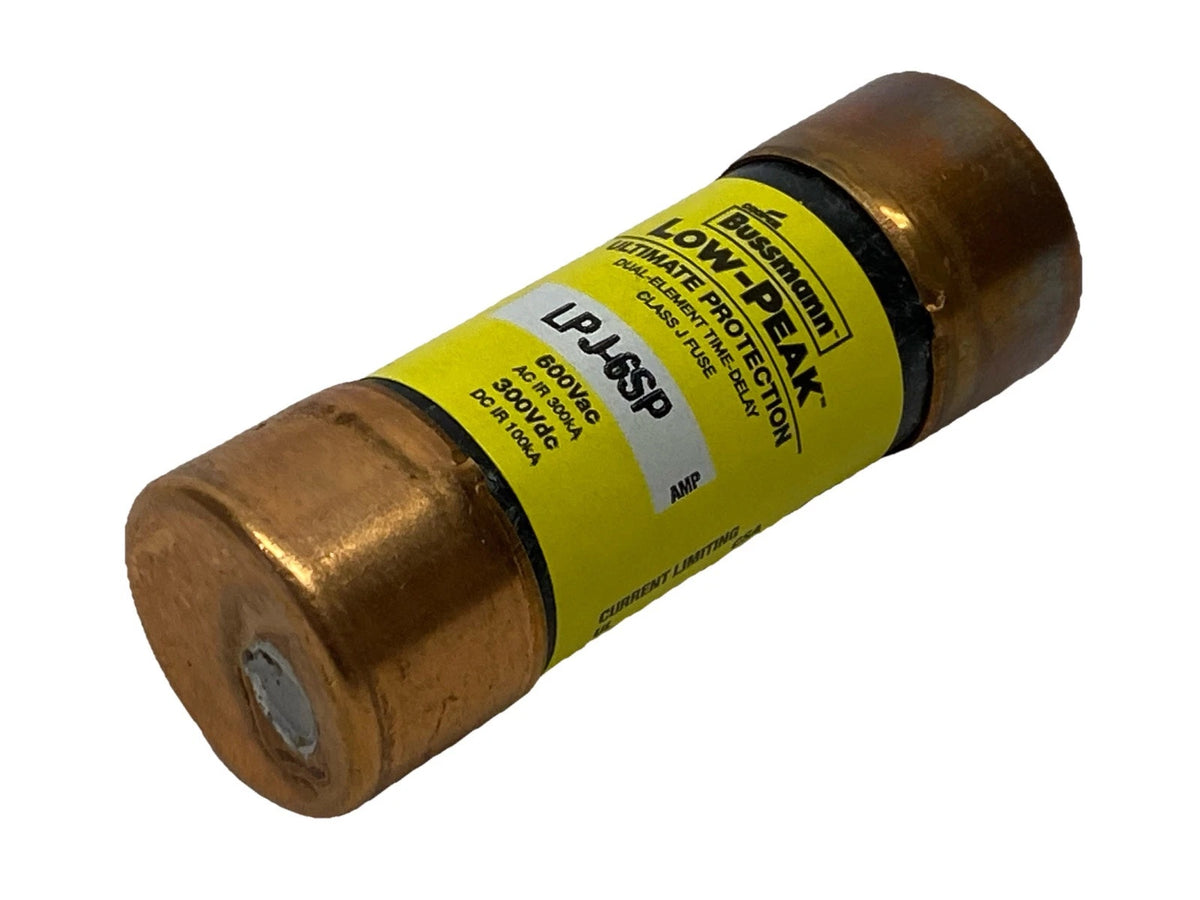

Bussmann LPJ-6SP Class J Time-Delay Fuse

✓ Product images for part identification

Eaton Bussmann

Bussmann LPJ-6SP Class J Time-Delay Fuse

SKU: LL1-BSM-LPJ-6SP

PRODUCT PRICE USD

$18.42

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	LPJ-6SP
Product Category	Class J Time-Delay Fuse
Fuse Class	Class J
Amperage Rating	6 A
Voltage Rating	600 Vac, 300 Vdc
Interrupt Rating	300 kAIC at 600 Vac / 100 kAIC Vdc
Response Time	10 sec at 500%
Fuse Type	Time delay, current-limiting
Number of Elements	Dual
Fuse Indicator	Non-indicating
Connection	Ferrule end x ferrule end
Product Length/Depth	2.25 in
Product Diameter	0.81 in
Body Material	Melamine
Approvals	CSA, UL

Key Features

Class J Time-Delay Fuse

Dual-element, time-delay current-limiting fuse with a 10-second delay at 500% rated current for motor and high in-rush loads.

300 kA Interrupt Rating at 600 Vac

300 kAIC interrupting rating at 600 Vac and 100 kAIC at 300 Vdc for robust fault current protection.

6 A Current Rating

6 A continuous current rating for compatible branch circuits and motor protection applications.

Melamine Cylindrical Body

Melamine body material in standard Class J 0.81 in x 2.25 in dimensions for holder mounting.

Non-Indicating Construction

Non-indicating design for standard fuse holder installations without visual indication.

CSA and UL Approvals

Carries CSA and UL approvals for use in compatible North American electrical systems.

Applications

Motor branch circuit protection
High in-rush current load protection
Industrial control panel fuse protection
Class J fuse holder applications
Branch circuit overcurrent protection
Transformer and solenoid protection
Power distribution equipment
Compatible 600 Vac and 300 Vdc circuits

Purchase Information

We support online purchase of the Bussmann LPJ-6SP Class J Time-Delay Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann LPJ-6SP? The LPJ-6SP is a Bussmann Series Class J time-delay, dual-element current-limiting fuse rated 6 A at 600 Vac and 300 Vdc.

What is the voltage rating of LPJ-6SP? It is rated 600 Vac and 300 Vdc.

What is the interrupt rating of LPJ-6SP? The interrupt rating is 300 kAIC at 600 Vac and 100 kAIC Vdc.

Is LPJ-6SP a time-delay fuse? Yes, it has a 10-second time delay at 500% rated current.

Does LPJ-6SP have dual elements? Yes, it is a dual-element fuse.

Is LPJ-6SP current-limiting? Yes, the fuse is current-limiting.

Is LPJ-6SP indicating? No, it is non-indicating.

What is the body material of LPJ-6SP? The body material is melamine.

What is the body size of LPJ-6SP? The body measures 0.81 in in diameter and 2.25 in in length.

What approvals does LPJ-6SP carry? It carries CSA and UL approvals.

What should be checked before ordering LPJ-6SP? Confirm the 6 A rating, 600 Vac/300 Vdc voltage, Class J fuse holder compatibility, and required CSA/UL approval.
