Eaton Bussmann

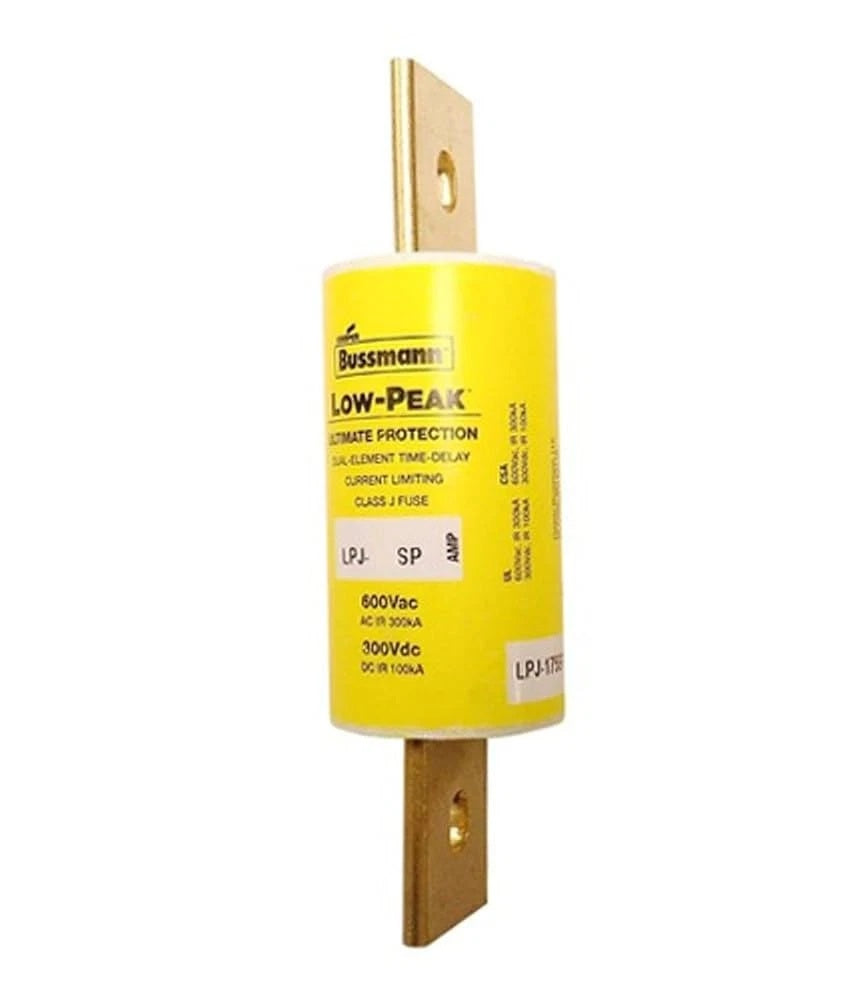

Bussmann LPJ-600SP Class J Fuse

SKU: LL1-BSM-LPJ-600SP

$115.24

Available

PRODUCT GALLERY 01 / 1

✓ Product images for part identification

Eaton Bussmann

Bussmann LPJ-600SP Class J Fuse

SKU: LL1-BSM-LPJ-600SP

PRODUCT PRICE USD

$115.24

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	LPJ-600SP
Product Category	Class J Fuse
Fuse Class	Class J
Fuse Type	Time-Delay, Dual-Element, Current-Limiting
Current Rating	600 A
Voltage Rating	600 VAC / 300 VDC
Interrupting Rating	300 kA at 600 VAC; 100 kA at 300 VDC
Response Time	10 seconds minimum at 500% rated current
Fuse Indicator	Non-Indicating
Connection	Bolted Blade End x Bolted Blade End
Body Style	Blade
Dimensions	Approx. 2.5 in diameter x 8 in length
Weight	Approx. 1.39 lb
Certifications	UL Listed, CSA Certified, CE Marked, RoHS Compliant

Key Features

600 A Class J Rating

600 A current rating at 600 VAC / 300 VDC for large feeder and service applications.

300 kA Interrupting Capacity

Published 300 kA interrupting rating at 600 VAC for high fault-current distribution systems.

Dual-Element Time-Delay

Provides a minimum 10-second delay at 500% rated current for high in-rush industrial loads.

Current-Limiting Construction

Class J current-limiting body to assist in limiting short-circuit let-through energy.

Bolted Blade Connection

Bolted blade end x bolted blade end terminations for fixed mounting.

Applications

Main service and large feeder protection
Industrial plant power distribution
Switchboards and distribution panels
Large motor and transformer branch circuits
High available fault current installations
AC/DC systems within 600 VAC / 300 VDC ratings

Purchase Information

We support online purchase of the Bussmann LPJ-600SP Class J Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann LPJ-600SP? The LPJ-600SP is a Class J time-delay, dual-element current-limiting fuse rated 600 A at 600 VAC / 300 VDC.

What is the interrupting rating of the LPJ-600SP? The published interrupting rating is 300 kA at 600 VAC and 100 kA at 300 VDC.

Is the LPJ-600SP a time-delay fuse? Yes. It is a dual-element time-delay fuse with a minimum 10-second response at 500% rated current.

Does the LPJ-600SP have a DC voltage rating? Yes. The LPJ-600SP is rated 300 VDC with a 100 kA DC interrupting rating.

Is the LPJ-600SP indicating? No, the LPJ-600SP is a non-indicating fuse.

What connections does the LPJ-600SP use? It uses bolted blade end x bolted blade end connections.

What certifications does the LPJ-600SP carry? The fuse is UL Listed, CSA Certified, CE Marked, and RoHS Compliant.

What are the dimensions of the LPJ-600SP? Published dimensions are approximately 2.5 inches in diameter by 8 inches in length.
