Eaton Bussmann

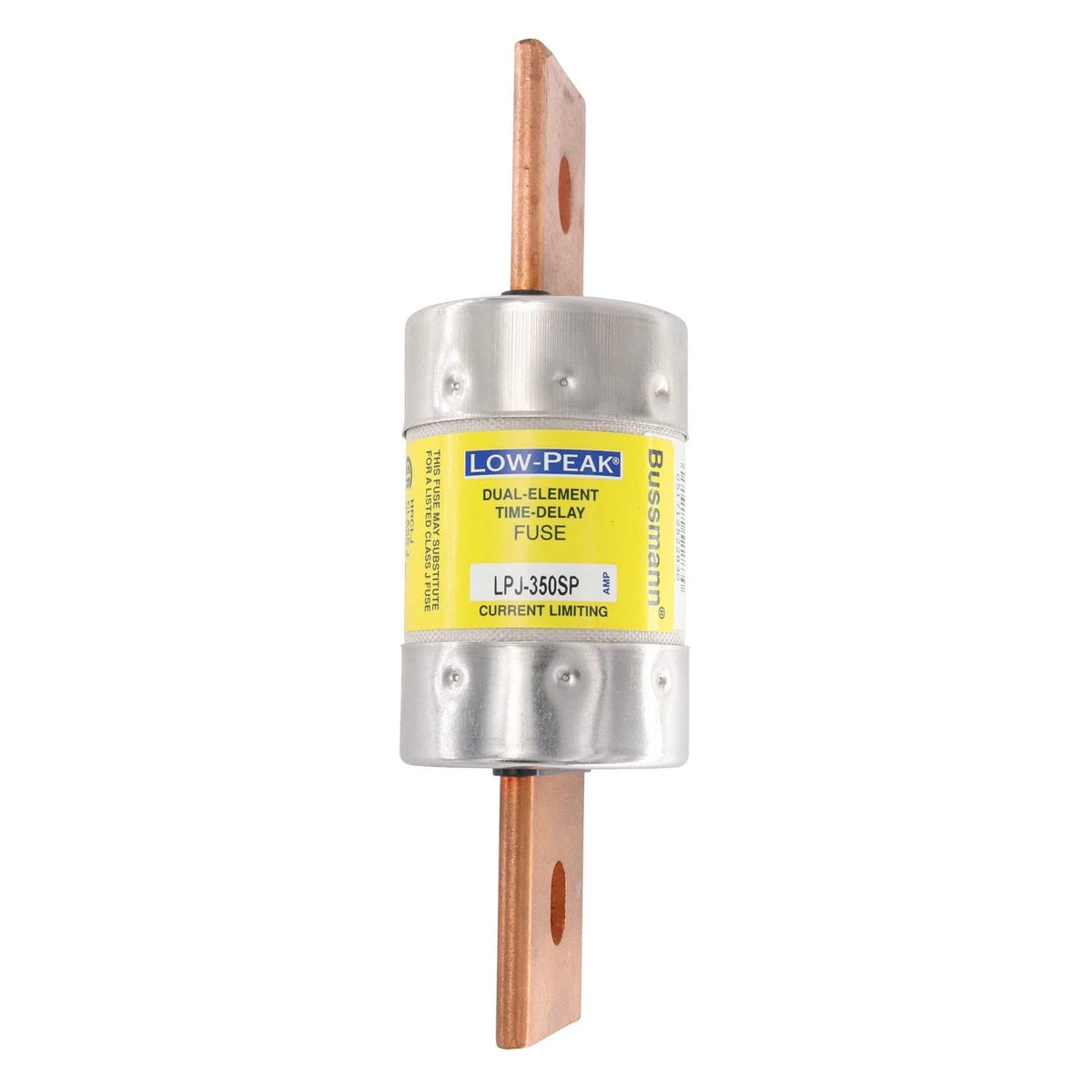

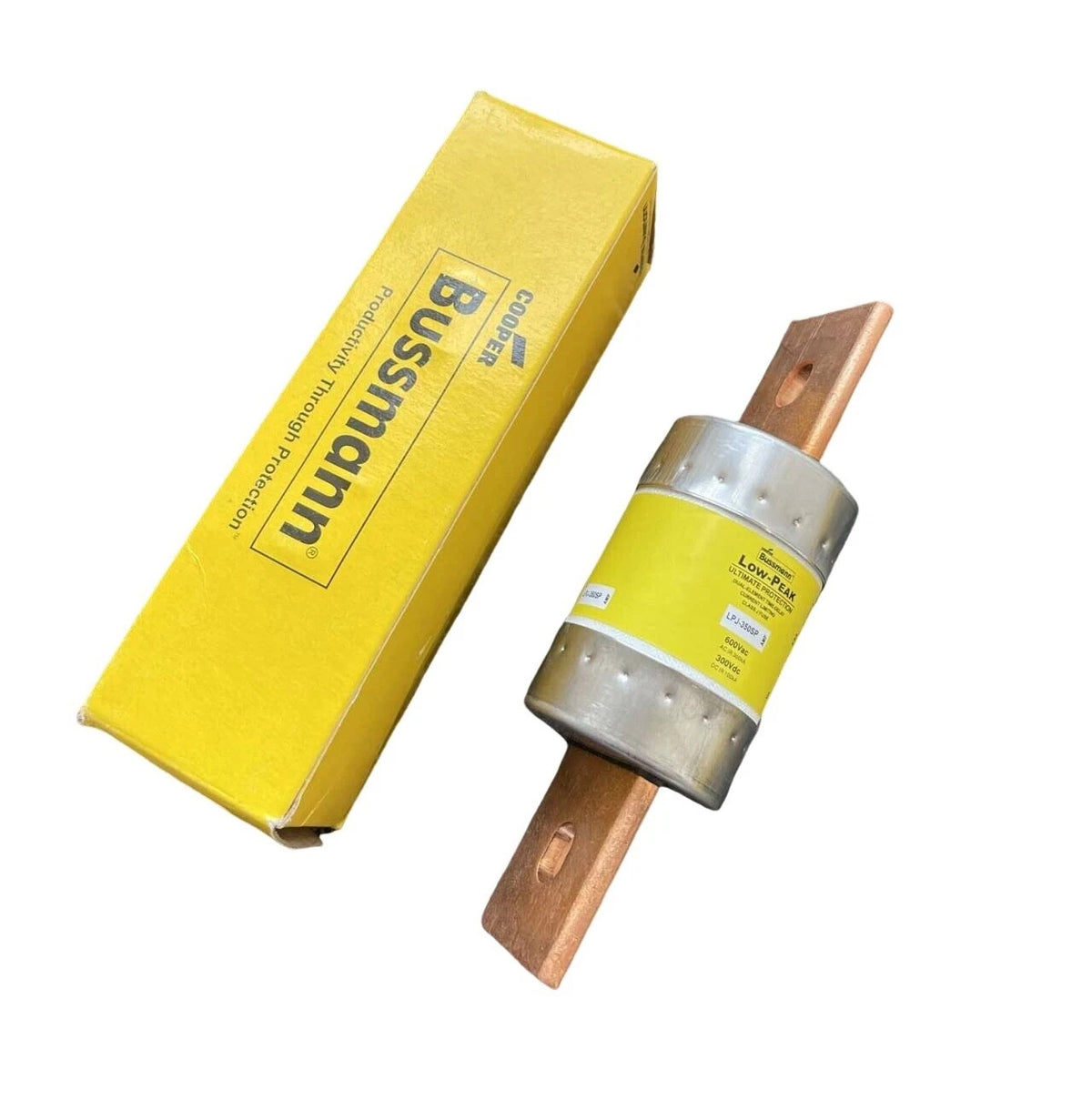

Bussmann LPJ-350SP Class J Fuse

SKU: LL1-BSM-LPJ-350SP

$67.80

Available

PRODUCT GALLERY 01 / 2

✓ Product images for part identification

Eaton Bussmann

Bussmann LPJ-350SP Class J Fuse

SKU: LL1-BSM-LPJ-350SP

PRODUCT PRICE USD

$67.80

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	LPJ-350SP
Product Category	Class J Fuse
Fuse Class	Class J
Fuse Type	Time-Delay, Dual-Element, Current-Limiting
Current Rating	350 A
Voltage Rating	600 VAC / 300 VDC
Interrupting Rating	300 kA at 600 VAC; 100 kA at 300 VDC
Response Time	10 seconds minimum at 500% rated current
Fuse Indicator	Non-Indicating
Connection	Bolted Blade End x Bolted Blade End
Body Style	Blade
Dimensions	Approx. 2.13 in diameter x 7.13 in length
Weight	Approx. 1.5 lb
Certifications	UL Listed, CSA Certified, CE Marked, RoHS Compliant

Key Features

350 A Class J Protection

Rated 350 A at 600 VAC / 300 VDC within the Class J fuse standard for branch and feeder circuits.

300 kA AC Interrupting Capacity

Published 300 kA interrupting rating at 600 VAC supports circuits with high available fault current.

Dual-Element Time-Delay Performance

Provides a minimum 10-second delay at 500% rated current to accommodate high in-rush loads.

Current-Limiting Construction

Class J current-limiting design assists in limiting let-through energy under short-circuit conditions.

Bolted Blade Connection

Bolted blade ends are designed for fixed mounting in compatible Class J fuse applications.

Applications

Industrial power distribution feeders
Motor circuits with high starting currents
Switchboards and panelboards using Class J fuses
Facility main and sub-feeder protection
Circuits requiring 600 VAC or 300 VDC ratings
High available fault current locations within published ratings

Purchase Information

We support online purchase of the Bussmann LPJ-350SP Class J Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann LPJ-350SP? The LPJ-350SP is a Class J time-delay, dual-element current-limiting fuse rated 350 A at 600 VAC / 300 VDC.

What is the interrupt rating of the LPJ-350SP? The published interrupt rating is 300 kA at 600 VAC and 100 kA at 300 VDC.

Is the LPJ-350SP a time-delay fuse? Yes. It is a dual-element time-delay fuse with a minimum response time of 10 seconds at 500% rated current.

Does the LPJ-350SP have a DC rating? Yes. The DC rating is 300 VDC with a 100 kA DC interrupt rating.

Is the LPJ-350SP indicating? No, the LPJ-350SP is a non-indicating fuse.

What terminal style does the LPJ-350SP use? The fuse uses bolted blade end x bolted blade end connections.

What certifications apply to the LPJ-350SP? The LPJ-350SP is UL Listed, CSA Certified, CE Marked, and RoHS Compliant.

What are the approximate dimensions of the LPJ-350SP? Published dimensions are approximately 2.13 inches in diameter by 7.13 inches in length.
