Eaton Bussmann

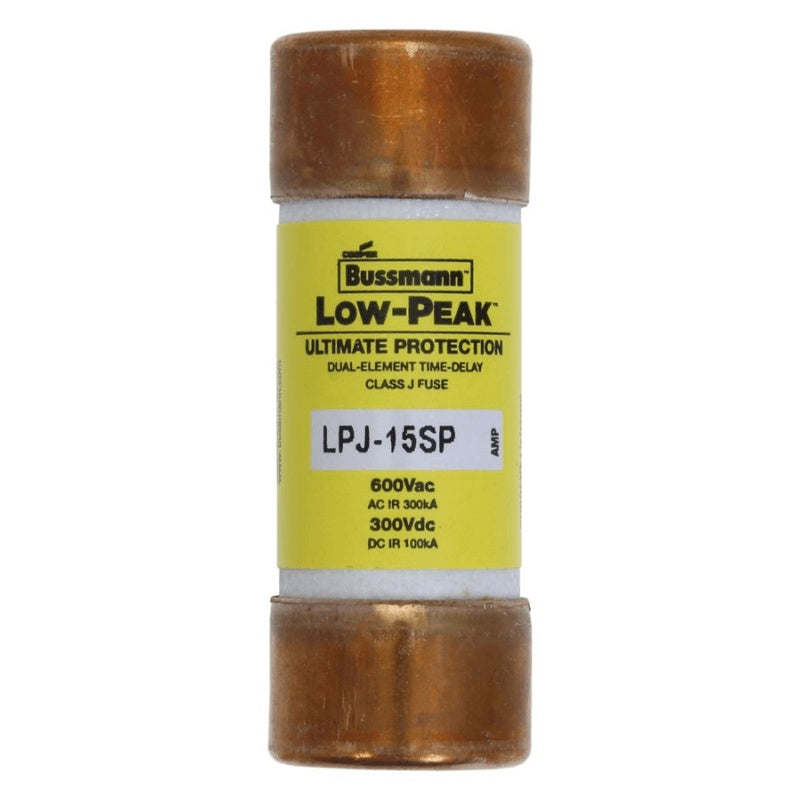

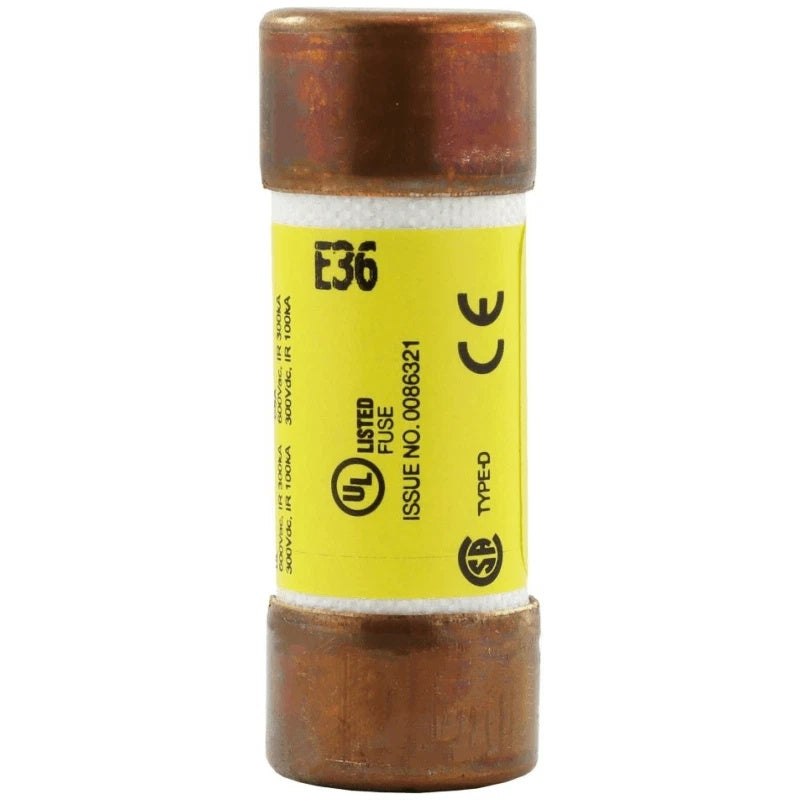

Bussmann LPJ-15SP Class J Time-Delay Fuse

SKU: LL1-BSM-LPJ-15SP

$18.42

Available

PRODUCT GALLERY 01 / 2

Bussmann LPJ-15SP Class J Time-Delay Fuse

✓ Product images for part identification

Eaton Bussmann

Bussmann LPJ-15SP Class J Time-Delay Fuse

SKU: LL1-BSM-LPJ-15SP

PRODUCT PRICE USD

$18.42

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	LPJ-15SP
Product Category	Class J Time-Delay Fuse
Amperage Rating	15 A
Voltage Rating	600 Vac, 300 Vdc
Interrupt Rating	300 kA at 600 Vac; 100 kA at 300 Vdc
Response Time	10 sec at 500% rated current
Fuse Class	Class J
Fuse Type	Time-delay, current-limiting
Element	Dual
Connection	Ferrule end x ferrule end
Fuse Indicator	Non-indicating
Dimensions	0.810 in Dia x 2.250 in L (20.57 mm x 57.15 mm)
Body Material	Melamine
Approvals	CE Marked, RoHS Compliant, UL, CSA
Special Features	High in-rush current motor protection

Key Features

Time-Delay Performance

Provides a minimum 10-second time delay at 500% of rated current, allowing temporary overloads and transient surges to be tolerated without nuisance opening.

Dual-Element Construction

Utilizes two separate elements to handle high in-rush currents and provide overload protection within a single fuse body.

Current-Limiting Design

Limits let-through current under short-circuit conditions to help reduce equipment damage and improve protection coordination.

High Interrupt Rating

Rated 300 kA at 600 Vac and 100 kA at 300 Vdc for application on systems with high available fault currents.

Class J Rejection Feature

Class J dimensions prevent substitution with fuses of lower voltage or interrupting ratings, supporting correct replacement practices.

Non-Indicating, Ferrule Ends

Non-indicating cylindrical body with ferrule end connections for use in compatible Class J fuse holders and blocks.

Applications

Motor branch circuit protection
Motor control center protection
Industrial control panel feeders
Transformer primary protection
HVAC equipment branch circuits
Pump and compressor circuits
General-purpose branch circuit protection
Facilities with high available fault current

Purchase Information

We support online purchase of the Bussmann LPJ-15SP Class J Time-Delay Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann LPJ-15SP? The Bussmann LPJ-15SP is a 15 A Class J time-delay, dual-element current-limiting fuse rated 600 Vac and 300 Vdc.

What is the amperage rating of the LPJ-15SP? The LPJ-15SP has an amperage rating of 15 A.

What is the voltage rating of the LPJ-15SP? The fuse is rated 600 Vac and 300 Vdc.

What is the interrupt rating of the LPJ-15SP? The interrupt rating is 300 kA at 600 Vac and 100 kA at 300 Vdc.

What is the time-delay characteristic of the LPJ-15SP? The LPJ-15SP provides a minimum 10-second time delay at 500% of its rated current.

What does Class J mean for this fuse? Class J is a UL fuse classification with physical dimensions that prevent replacement by fuses with lower voltage or interrupting ratings.

Is the LPJ-15SP indicating? No, the LPJ-15SP is a non-indicating fuse.

What are the dimensions of the LPJ-15SP? The fuse measures 0.810 in (20.57 mm) in diameter and 2.250 in (57.15 mm) in length.

What approvals does the LPJ-15SP carry? The LPJ-15SP is CE Marked, RoHS Compliant, and listed by UL and CSA.

What body material does the LPJ-15SP use? The fuse body is made of melamine.

What is the LPJ-15SP typically used for? It is commonly applied for motor branch circuit protection and other circuits that experience high in-rush currents.

What should be checked before ordering the LPJ-15SP? Confirm the required amperage, voltage, interrupt rating, Class J fuse holder compatibility, and whether a non-indicating fuse is suitable for the installation.
