110 A Class J Rating
The LPJ-110SP is the 110 A configuration in the Bussmann LPJ Low-Peak Class J fuse series.

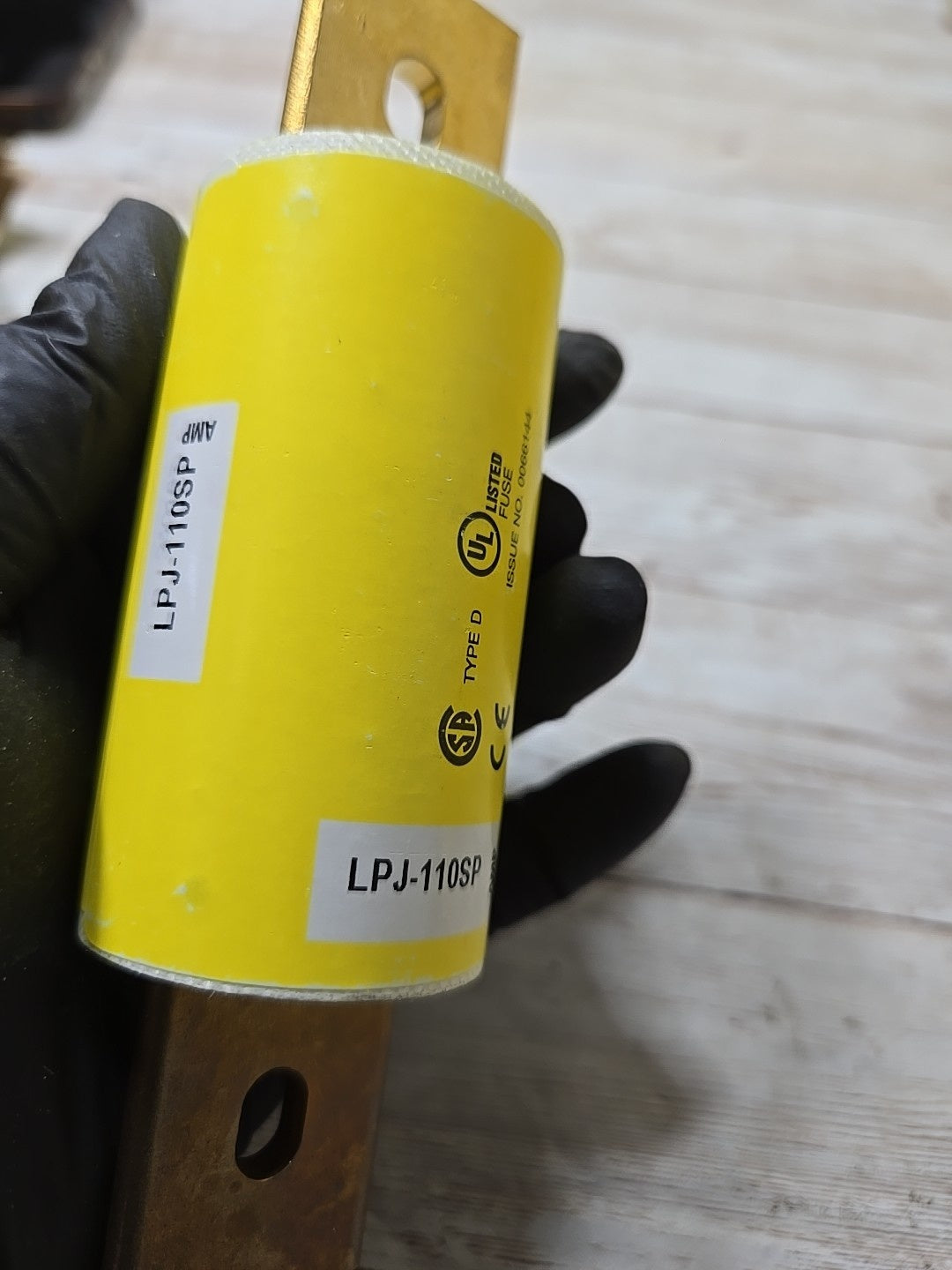

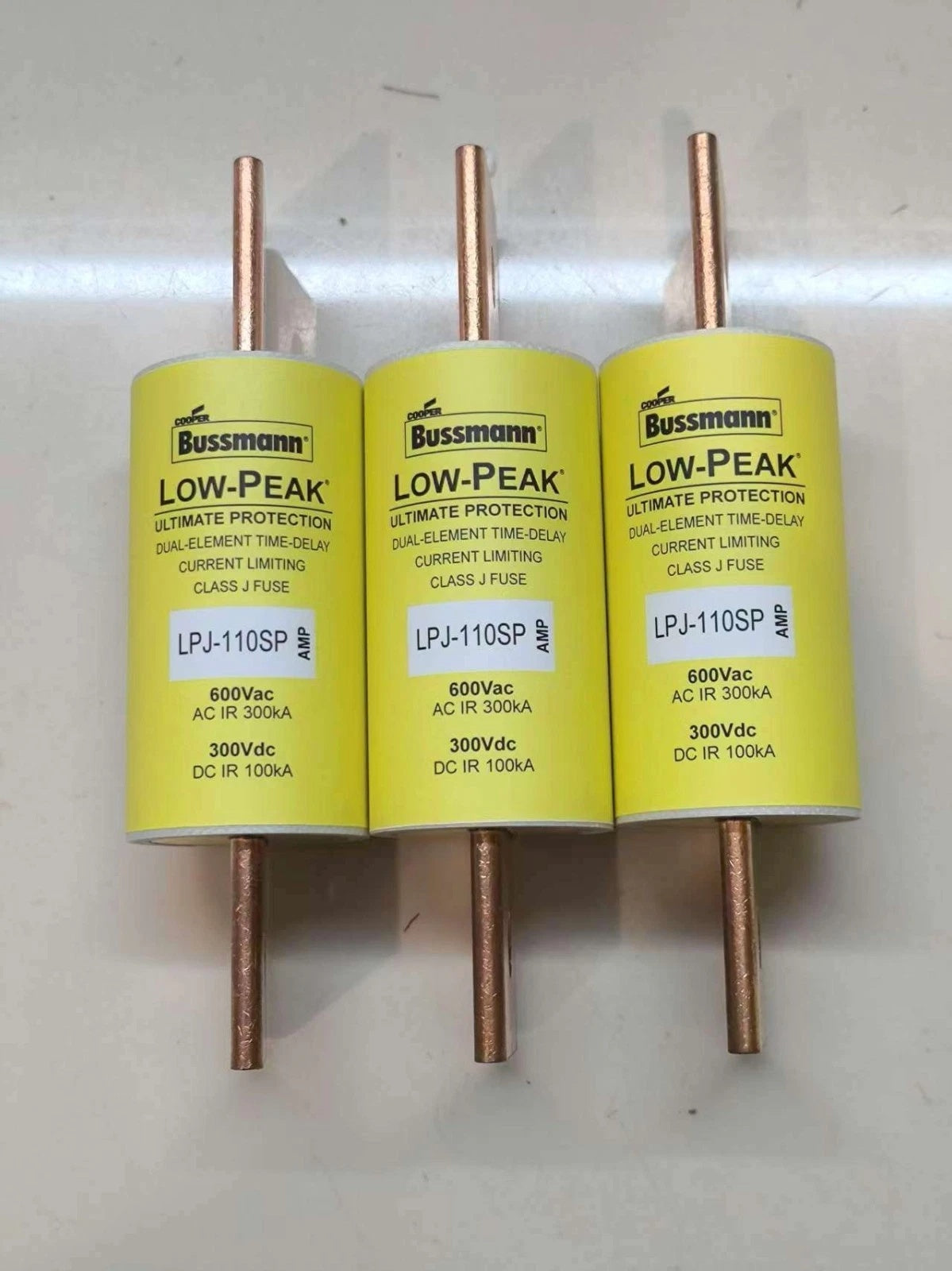

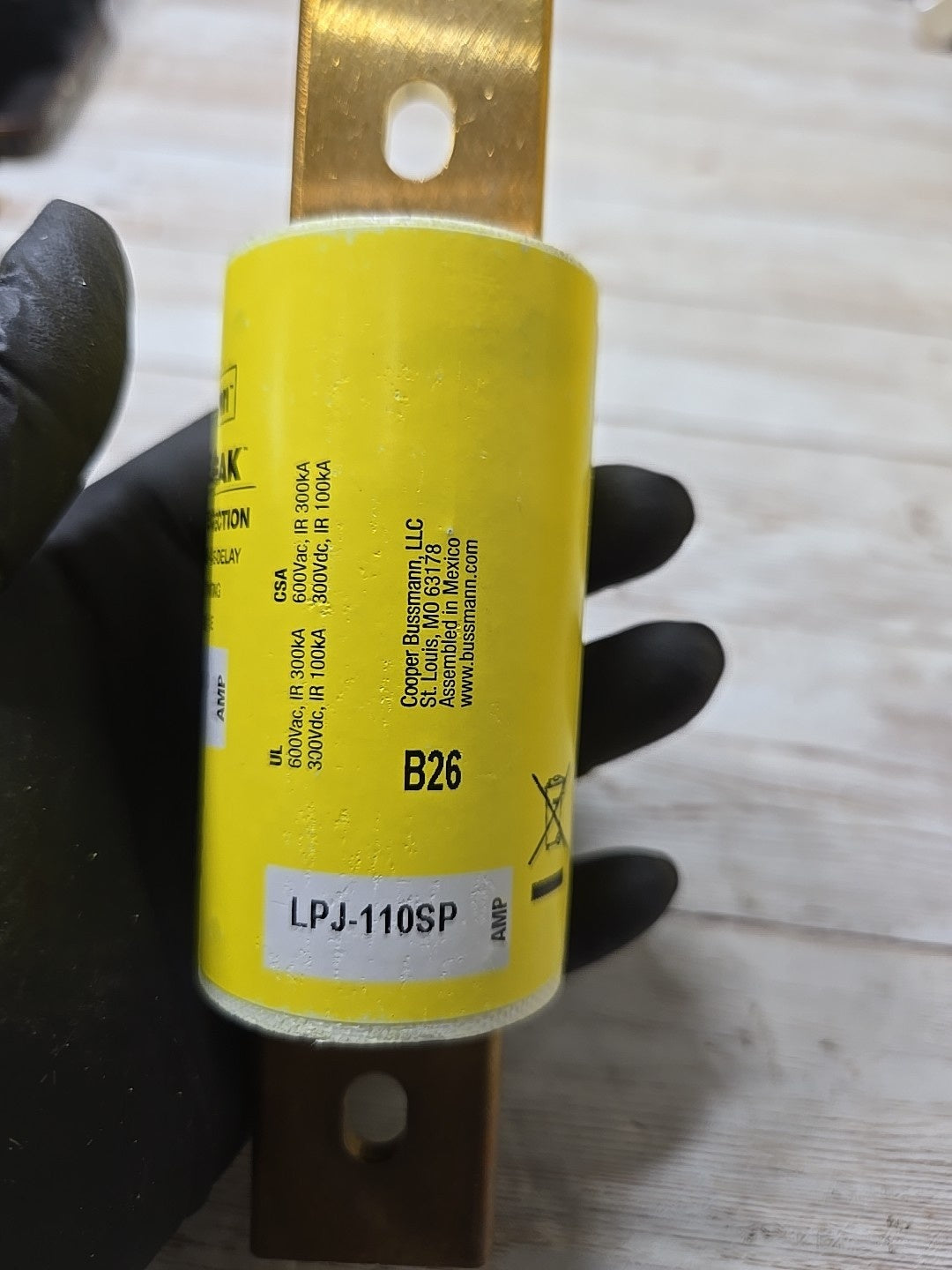

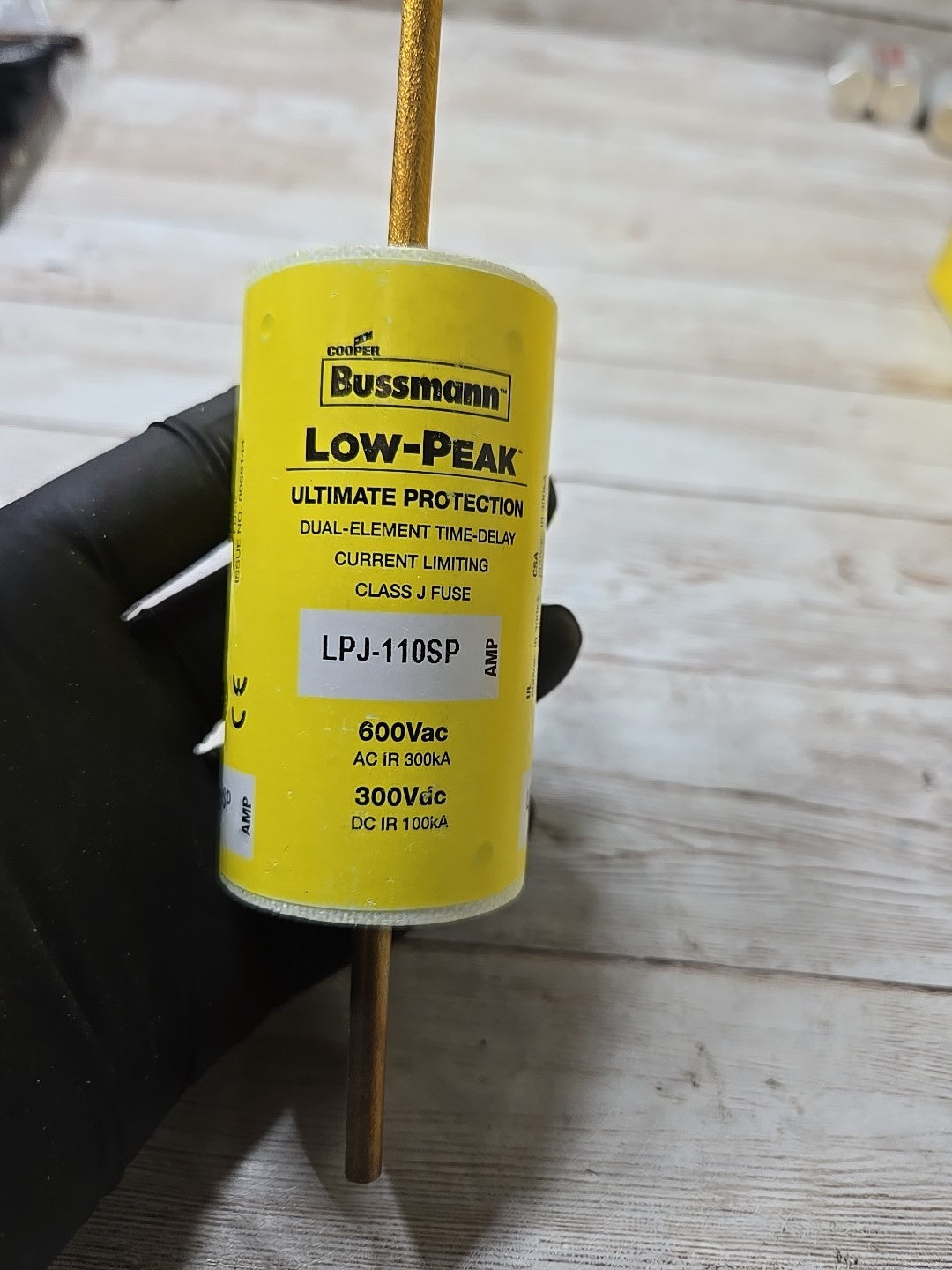

Bussmann LPJ-110SP Class J Fuse 110A 600VAC 300VDC Time-Delay
Available in stock (1000)
Regular price
$45.49
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Bussmann |
| Model Number | LPJ-110SP |
| Product Category | Class J Fuse |
| Series | LPJ Low-Peak |
| Fuse Type | Dual-Element Time-Delay Current-Limiting Fuse |
| Current Rating | 110 A |
| AC Voltage Rating | 600 VAC |
| DC Voltage Rating | 300 VDC |
| Fuse Class | Class J |
| AC Interrupting Rating | 300 kA RMS Symmetrical |
| DC Interrupting Rating | 100 kA |
| Time Delay | 10 Seconds Minimum at 500% Rated Current |
| Connection | Blade End × Blade End |
| Fuse Indicator | Non-Indicating |
| Product Length | 5.75 in |
| Product Height | 1.5 in |
| Product Width | 1.5 in |
| Product Weight | 0.8 lb |
| Certifications | UL Listed; CSA Certified |
| Environmental Compliance | RoHS Compliant |
Key Features
600 VAC and 300 VDC
The LPJ-110SP is rated for electrical circuits up to 600 VAC and 300 VDC.
Dual-Element Time-Delay
Separate overload and short-circuit elements provide time-delay characteristics for circuits with high inrush currents.
Current-Limiting Class J Design
The LPJ series combines Class J construction with current-limiting characteristics for branch circuit protection.
High Interrupting Ratings
The documented interrupting ratings are 300 kA RMS symmetrical on AC circuits and 100 kA on DC circuits.

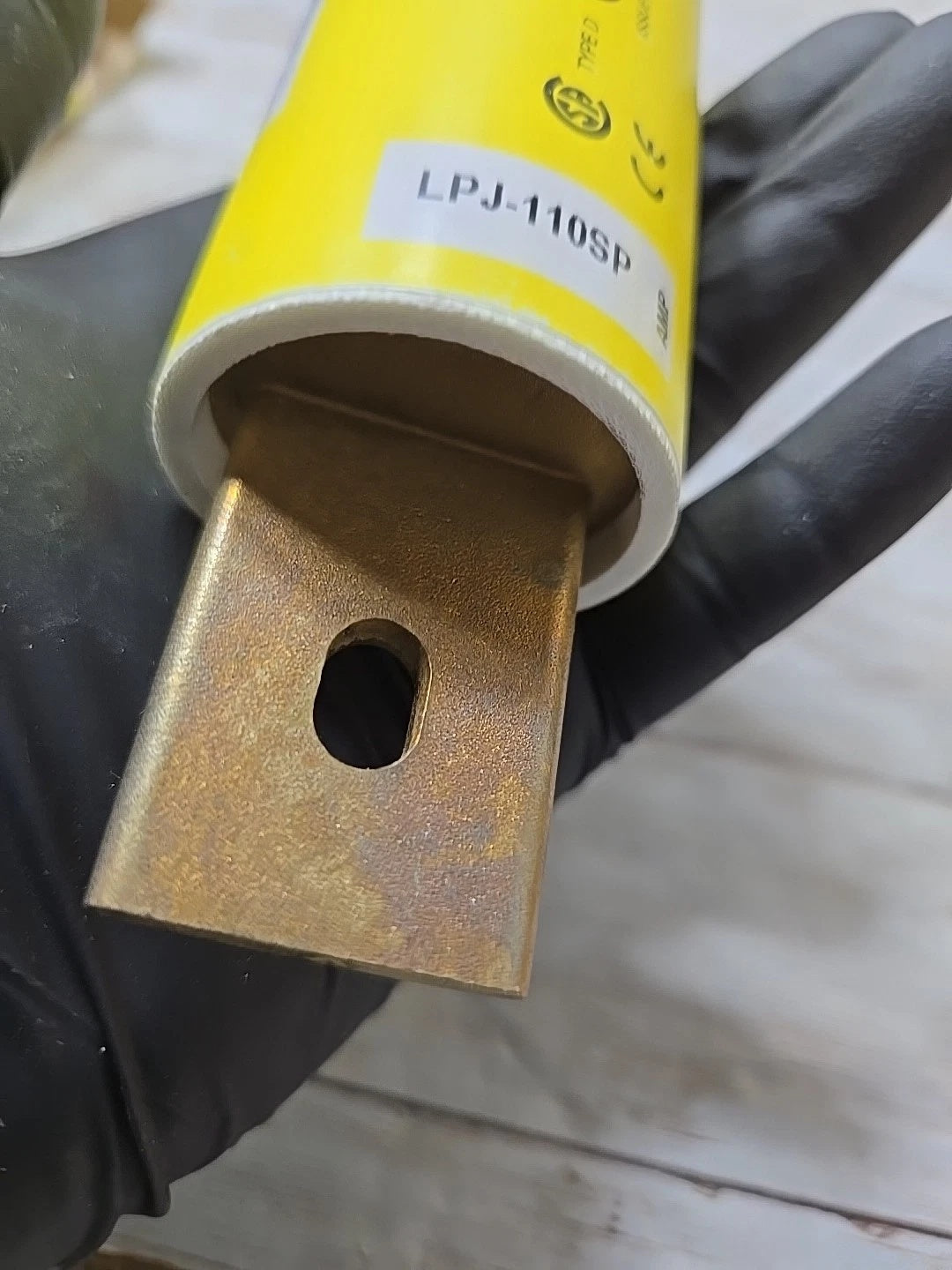

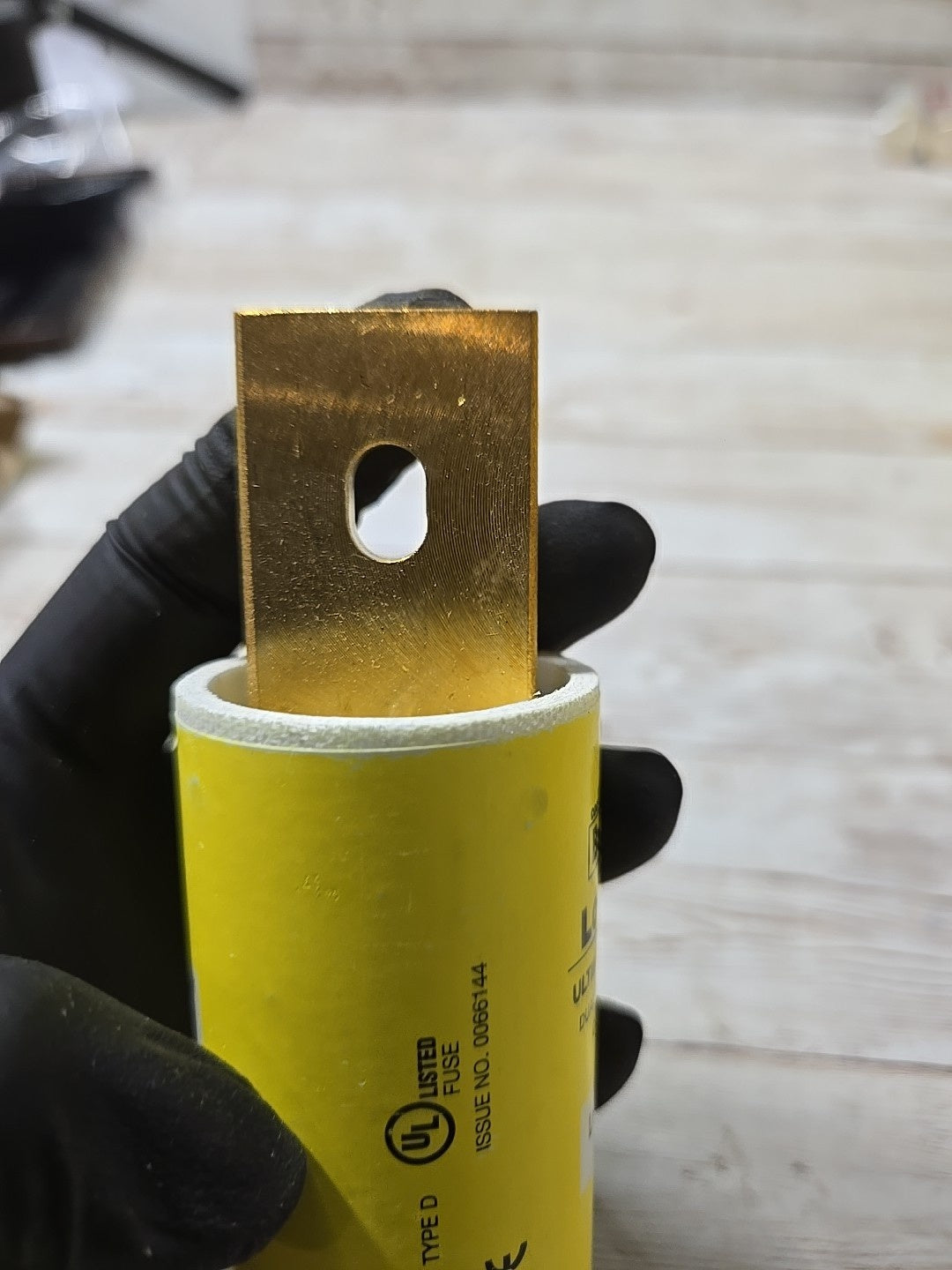

Blade-End Connection
The 110 A LPJ-110SP uses blade-end connections and is specified as a non-indicating fuse.
Applications
- Power panelboards
- Branch circuit breaker panelboard mains
- Machinery disconnects
- Motor branch circuits
- Industrial distribution equipment
- High-inrush electrical loads
Purchase Information
We support online purchase of the Bussmann LPJ-110SP Class J Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Bussmann LPJ-110SP?
Bussmann LPJ-110SP is a 110 A dual-element time-delay current-limiting Class J fuse from the LPJ Low-Peak series.
What is the current rating of LPJ-110SP?
The documented current rating is 110 A.
What is the AC voltage rating?
The documented AC voltage rating is 600 VAC.
What is the DC voltage rating?
The documented DC voltage rating is 300 VDC.
What is the AC interrupting rating?
The documented AC interrupting rating is 300 kA RMS symmetrical.
What is the DC interrupting rating?
The documented DC interrupting rating is 100 kA.
Is LPJ-110SP a time-delay fuse?
Yes. The LPJ series provides a minimum 10-second time delay at 500% of rated current.
What fuse class is LPJ-110SP?
The LPJ-110SP is a Class J current-limiting fuse.
Does LPJ-110SP have a visual indicator?
No. The LPJ-110SP is specified as a non-indicating fuse.
What connection type does LPJ-110SP use?
The documented connection is blade end to blade end.
What are the dimensions of LPJ-110SP?
The documented dimensions are 5.75 inches in length, 1.5 inches in height and 1.5 inches in width.
What should be checked before ordering LPJ-110SP?
Check the LPJ-110SP model number, 110 A current rating, required 600 VAC or 300 VDC voltage rating, Class J requirement, blade-end connection and required interrupting rating before purchasing.
