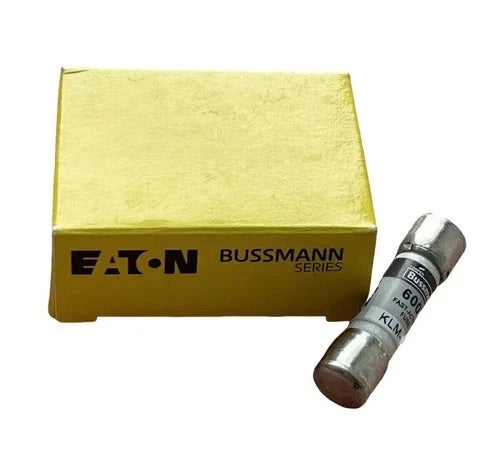

Bussmann KLM-9 Fuse

SKU: LL1-BSM-KLM-9

$12.98

Available

PRODUCT GALLERY 01 / 1

✓ Product images for part identification

Eaton Bussmann

Bussmann KLM-9 Fuse

SKU: LL1-BSM-KLM-9

PRODUCT PRICE USD

$12.98

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	KLM-9
Product Category	Fast-Acting Midget Fuse
Series	KLM / Limitron
Fuse Type	Fast-Acting Supplemental Fuse
Amperage Rating	9 A
Voltage Rating	600 Vac / 600 Vdc
Interrupt Rating (AC)	100 kAIC at 600 Vac
Interrupt Rating (DC)	50 kAIC at 600 Vdc
Fuse Size	13/32 in x 1-1/2 in (10.3 mm x 38.1 mm)
Package / Case	5AG Midget, Cylindrical
Body Material	Melamine Tube
Endcap Material	Nickel-Plated Bronze
Connection	Ferrule End x Ferrule End
Indicator	Non-Indicating
Electrical Characteristics	110% Rating: 4 Hours Minimum; 135% AC Rating: Opens Within 1 Hour
Compliances	UL Listed (Std. 248-14, Guide JDYX, File E19180); CSA Certified (C22.2 No. 248.14, Class 1422-01, File 53787); CE; RoHS Compliant
Typical Applications	DC Control Circuits Requiring Fast-Acting Fuses; PV Systems up to 600 Vdc

Key Features

9 A Fast-Acting Supplemental Protection

Provides a 9 A rating for fast-acting supplemental overcurrent protection in compatible circuits.

600 Vac / 600 Vdc Dual Voltage Capability

Rated for 600 Vac and 600 Vdc, supporting AC control and DC applications including PV systems up to 600 Vdc.

100 kA AC / 50 kA DC Interrupting

Published interrupt ratings for high available fault current applications within the fuse rating.

13/32 in x 1-1/2 in Midget Format

5AG midget dimensions allow use in compatible fuse holders, blocks, and DIN-rail mounted assemblies.

Melamine Tube and Nickel-Plated Endcaps

Constructed with a melamine tube body and nickel-plated bronze endcaps, per the KLM technical data sheet.

DC Supplemental Fuse Application

Documented as a full-range DC supplemental fuse for DC control circuits and PV systems up to 600 Vdc.

Applications

DC control circuits requiring fast-acting fuses
PV systems up to 600 Vdc
AC control circuits rated up to 600 Vac
Industrial control panels with supplemental fusing
Compatible midget fuse holders and modular blocks
OEM equipment requiring 5AG 13/32 in x 1-1/2 in fuses
Supplemental overcurrent protection in electrical assemblies
Renewable energy DC circuits within the published voltage rating

Purchase Information

We support online purchase of the Bussmann KLM-9 Fast-Acting Midget Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann KLM-9? The KLM-9 is a 9 A fast-acting supplemental midget fuse in the Bussmann KLM series.

What are the AC and DC voltage ratings? 600 Vac and 600 Vdc.

What interrupt rating is published for KLM-9? 100 kAIC at 600 Vac and 50 kAIC at 600 Vdc.

What is the size of KLM-9? 13/32 in x 1-1/2 in (10.3 mm x 38.1 mm), 5AG midget package.

Is KLM-9 indicating? No, it is non-indicating.

What are the tube and endcap materials? Melamine tube body and nickel-plated bronze endcaps.

What are the time-current characteristics? 110% of rating: carries for 4 hours minimum; 135% AC rating: opens within 1 hour.

What standards does KLM-9 comply with? UL Listed (Std. 248-14, Guide JDYX, File E19180), CSA Certified (C22.2 No. 248.14, Class 1422-01, File 53787), CE marked, and RoHS compliant.

Can KLM-9 be applied in DC control circuits? Yes. The KLM series is documented for DC control circuits requiring fast-acting fuses, as well as PV systems up to 600 Vdc.

What should be verified before ordering KLM-9? Confirm the 9 A current requirement, 600 Vac/600 Vdc system voltage, available fault current versus the interrupt rating, fuse holder compatibility with the 13/32 in x 1-1/2 in size, and required agency approvals.
