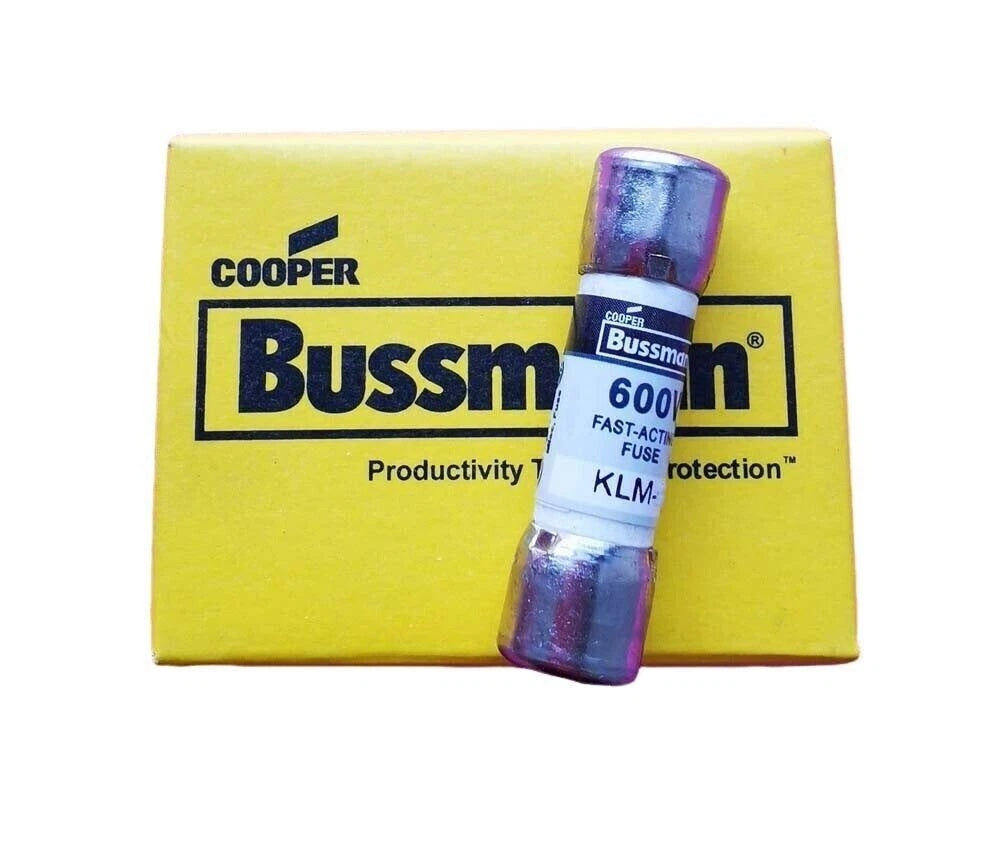

Bussmann KLM-7 Fuse

SKU: LL1-BSM-KLM-7

$12.98

Available

PRODUCT GALLERY 01 / 1

✓ Product images for part identification

Eaton Bussmann

Bussmann KLM-7 Fuse

SKU: LL1-BSM-KLM-7

PRODUCT PRICE USD

$12.98

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	KLM-7
Product Category	Fast-Acting Midget Fuse
Series	KLM / Limitron
Fuse Type	Fast-Acting Supplemental Fuse
Amperage Rating	7 A
Voltage Rating	600 Vac / 600 Vdc
Interrupt Rating (AC)	100 kAIC at 600 Vac
Interrupt Rating (DC)	50 kAIC at 600 Vdc
Fuse Size	13/32 in x 1-1/2 in (10.3 mm x 38.1 mm)
Package / Case	5AG Midget, Cylindrical
Body Material	Melamine Tube
Endcap Material	Nickel-Plated Bronze
Connection	Ferrule End x Ferrule End
Indicator	Non-Indicating
Electrical Characteristics	110% Rating: 4 Hours Minimum; 135% AC Rating: Opens Within 1 Hour
Compliances	UL Listed (Std. 248-14, Guide JDYX, File E19180); CSA Certified (C22.2 No. 248.14, Class 1422-01, File 53787); CE; RoHS Compliant
Typical Applications	DC Control Circuits Requiring Fast-Acting Fuses; PV Systems up to 600 Vdc

Key Features

7 A Fast-Acting Supplemental Rating

Provides 7 A fast-acting supplemental protection within the KLM midget fuse family.

600 Vac / 600 Vdc Voltage Rating

Dual AC/DC voltage rating supports control and DC applications up to 600 V, including PV systems within the documented range.

100 kAIC AC / 50 kAIC DC Interrupting

Published interrupt ratings for short-circuit protection in compatible electrical systems.

13/32 in x 1-1/2 in Midget Size

Standard 5AG midget footprint for use in compatible fuse holders, blocks, and DIN-rail assemblies.

Melamine Tube Construction

Melamine tube body and nickel-plated bronze endcaps as specified in KLM technical documentation.

DC Supplemental Fuse

Documented full-range DC supplemental fuse suitable for DC control circuits and PV systems up to 600 Vdc.

Applications

DC control circuits requiring fast-acting supplemental fuses
PV systems up to 600 Vdc
AC control circuits up to 600 Vac
Industrial control panels using midget fuses
Compatible 5AG fuse holders and modular blocks
OEM equipment with 13/32 in x 1-1/2 in fuse requirements
Supplemental overcurrent protection in electrical assemblies
Renewable energy DC circuits within the published voltage rating

Purchase Information

We support online purchase of the Bussmann KLM-7 Fast-Acting Midget Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann KLM-7? The KLM-7 is a 7 A fast-acting supplemental midget fuse from the Bussmann KLM series.

What is the voltage rating? 600 Vac and 600 Vdc.

What interrupt rating does KLM-7 provide? 100 kAIC at 600 Vac and 50 kAIC at 600 Vdc.

What is the physical size of KLM-7? 13/32 in x 1-1/2 in (10.3 mm x 38.1 mm), 5AG midget package.

Is KLM-7 indicating? No, it is non-indicating.

What are the endcap and tube materials? Nickel-plated bronze endcaps and a melamine tube body.

What are the electrical characteristics at 110% and 135%? 110% of rating: carries for 4 hours minimum; 135% AC rating: opens within 1 hour.

What standards and approvals apply to KLM-7? UL Listed (Std. 248-14, Guide JDYX, File E19180), CSA Certified (C22.2 No. 248.14, Class 1422-01, File 53787), CE marked, and RoHS compliant.

Can KLM-7 be used in DC photovoltaic systems? The KLM series is documented for PV systems up to 600 Vdc, in addition to DC control circuits, when applied within the published ratings and applicable standards.

What should be confirmed before purchasing KLM-7? Confirm the 7 A current requirement, 600 Vac/600 Vdc system voltage, fault current level against the 100 kA/50 kA interrupt rating, holder compatibility with the midget size, and any required agency listings for the installation.
