Eaton Bussmann

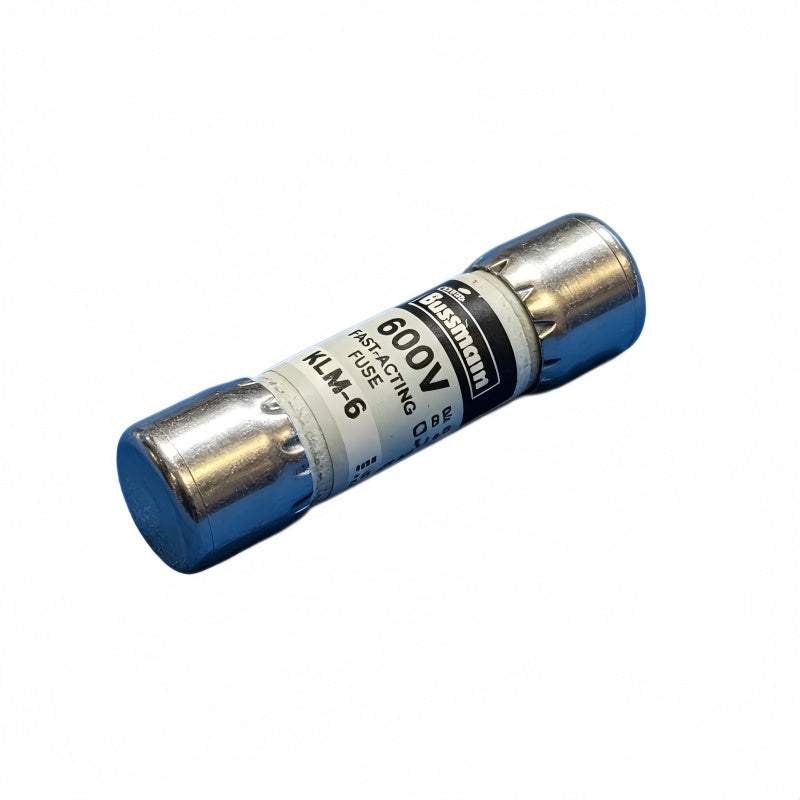

Bussmann KLM-6 Fuse

SKU: LL1-BSM-KLM-6

$12.98

Available

PRODUCT GALLERY 01 / 1

✓ Product images for part identification

Eaton Bussmann

Bussmann KLM-6 Fuse

SKU: LL1-BSM-KLM-6

PRODUCT PRICE USD

$12.98

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	KLM-6
Product Category	Fast-Acting Midget Fuse
Series	KLM / Limitron
Fuse Type	Fast-Acting Supplemental Fuse
Amperage Rating	6 A
Voltage Rating	600 Vac / 600 Vdc
Interrupt Rating (AC)	100 kAIC at 600 Vac
Interrupt Rating (DC)	50 kAIC at 600 Vdc
Fuse Size	13/32 in x 1-1/2 in (10.3 mm x 38.1 mm)
Package / Case	5AG Midget, Cylindrical
Body Material	Melamine Tube
Endcap Material	Nickel-Plated Bronze
Connection	Ferrule End x Ferrule End
Indicator	Non-Indicating
Electrical Characteristics	110% Rating: 4 Hours Minimum; 135% AC Rating: Opens Within 1 Hour
Compliances	UL Listed (Std. 248-14, Guide JDYX, File E19180); CSA Certified (C22.2 No. 248.14, Class 1422-01, File 53787); CE; RoHS Compliant
Typical Applications	DC Control Circuits Requiring Fast-Acting Fuses; PV Systems up to 600 Vdc

Key Features

6 A Fast-Acting Supplemental Fuse

Rated 6 A for fast-acting supplemental protection in AC and DC control circuits.

600 Vac / 600 Vdc Dual Rating

Published voltage rating covers both 600 Vac and 600 Vdc applications, including DC control and PV circuits up to 600 Vdc.

100 kAIC Interrupt Rating at 600 Vac

High interrupting capacity of 100 kAIC at 600 Vac and 50 kAIC at 600 Vdc for fault current protection.

Standard Midget Dimensions

13/32 in x 1-1/2 in (10.3 mm x 38.1 mm) 5AG package compatible with midget fuse holders and blocks.

Melamine and Nickel-Plated Construction

Melamine tube body with nickel-plated bronze endcaps per KLM series technical data.

Full-Range DC Supplemental Use

Documented as a full-range DC supplemental fuse for DC control circuits and PV systems up to 600 Vdc.

Applications

DC control circuits requiring fast-acting fuses
PV systems up to 600 Vdc
AC control circuits rated up to 600 Vac
Supplemental overcurrent protection in industrial panels
Compatible midget fuse holders and DIN-rail blocks
Equipment requiring 5AG 13/32 in x 1-1/2 in fuses
OEM electrical assemblies with supplemental fusing
Renewable energy DC circuits within the documented voltage range

Purchase Information

We support online purchase of the Bussmann KLM-6 Fast-Acting Midget Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann KLM-6? The KLM-6 is a 6 A fast-acting supplemental midget fuse in the Bussmann KLM series.

What are the AC and DC voltage ratings? 600 Vac and 600 Vdc.

What is the interrupt rating of KLM-6? 100 kAIC at 600 Vac and 50 kAIC at 600 Vdc.

What size fuse is KLM-6? 13/32 in x 1-1/2 in (10.3 mm x 38.1 mm), 5AG midget.

Does KLM-6 have an indicating feature? No. The KLM series is non-indicating.

What materials are used in the body and endcaps? Melamine tube body with nickel-plated bronze endcaps.

What are the published time-current characteristics? Carries 110% of rating for 4 hours minimum; at 135% AC rating, opens within 1 hour.

What approvals does KLM-6 hold? UL Listed (Std. 248-14, Guide JDYX, File E19180), CSA Certified (C22.2 No. 248.14, Class 1422-01, File 53787), CE, and RoHS compliant.

Can KLM-6 be used in PV systems? The KLM series is documented for PV systems up to 600 Vdc, subject to the application requirements and applicable installation standards.

What should be checked before ordering KLM-6? Verify the 6 A load current, AC or DC system voltage up to 600 V, available fault current against the 100 kA/50 kA interrupt rating, fuse holder compatibility with the midget size, and required UL/CSA approvals for the installation.
