2 A Fast-Acting Protection
KLM series fast-acting supplemental fuse rated 2 A for DC control and photovoltaic circuits.
Eaton Bussmann
Bussmann KLM-2 Fuse
$12.98
Available
PRODUCT GALLERY
01 / 2

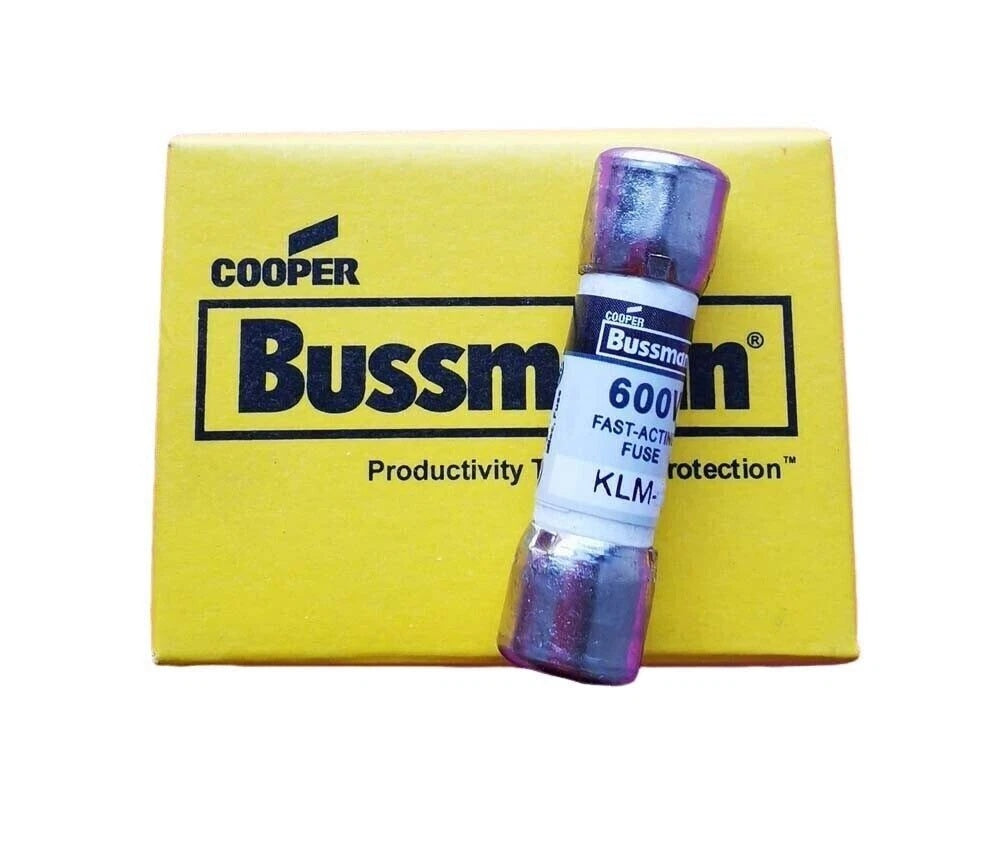

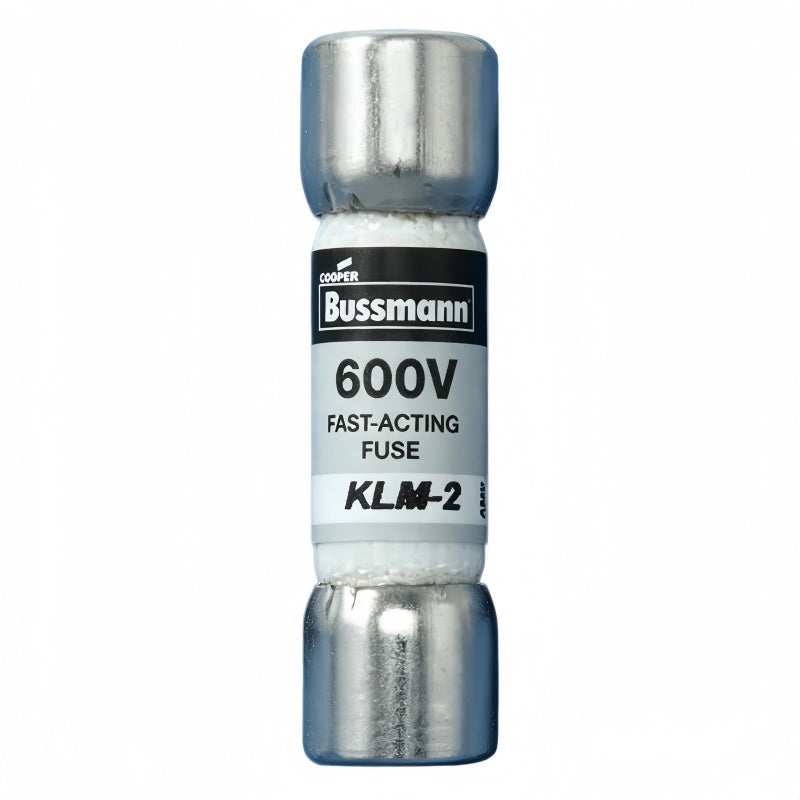

Product images for part identification
Eaton Bussmann
Bussmann KLM-2 Fuse
PRODUCT PRICE
USD
$12.98
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Bussmann |
| Model Number | KLM-2 |
| Product Category | Fuse |
| Series | KLM |
| Amperage Rating | 2 A |
| Voltage Rating | 600 Vac, 600 Vdc |
| Interrupt Rating | 100 kAIC at 600 Vac / 50 kAIC at 600 Vdc |
| Fuse Type | Fast-Acting, Supplemental |
| Fuse Indicator | Non-indicating |
| Connection | Ferrule end x ferrule end |
| Body Material | Melamine tube |
| Endcap Material | Nickel-plated bronze |
| Fuse Size | 13/32 in x 1-1/2 in (10 x 38 mm) |
| Compliances | CE Marked, RoHS Compliant |
Key Features
600 Vac / 600 Vdc Rating
Dual voltage rating for AC and DC control applications.
100 kAIC / 50 kAIC Interrupt
High interrupting capacity at 600 Vac and 600 Vdc respectively.
Melamine Body and Bronze Endcaps
Industrial-grade melamine tube with nickel-plated bronze endcaps.
Non-Indicating
Non-indicating construction for supplemental fuse applications.
Midget Ferrule-End Size
13/32 in x 1-1/2 in format for standard fuse holders.
Applications
- DC control circuits
- DC photovoltaic systems
- Supplemental circuit protection
- Industrial control panels
- DC power distribution equipment
- Solar energy systems
- OEM control assemblies
- Maintenance replacement
Purchase Information
We support online purchase of the Bussmann KLM-2 Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Bussmann KLM-2? The KLM-2 is a 2 A fast-acting supplemental fuse from the KLM series.
What are the voltage ratings of the KLM-2? 600 Vac and 600 Vdc.
What is the interrupt rating of the KLM-2? 100 kAIC at 600 Vac and 50 kAIC at 600 Vdc.
Is the KLM-2 indicating? No, it is non-indicating.
What is the amperage rating? 2 A.
What size fuse is the KLM-2? 13/32 in x 1-1/2 in (10 x 38 mm) midget ferrule-end.
What materials are used in the KLM-2? Melamine tube and nickel-plated bronze endcaps.
What circuits is the KLM-2 designed for? DC control circuits and DC photovoltaic systems for supplemental protection.
Is the KLM-2 CE marked and RoHS compliant? Yes, it is CE marked and RoHS compliant.
What should be checked before buying the KLM-2? Verify the 2 A rating, voltage compatibility, interrupt capacity, and fuse holder requirements.
Need help confirming a model?
Send us your part number and technical requirements.
