Eaton Bussmann

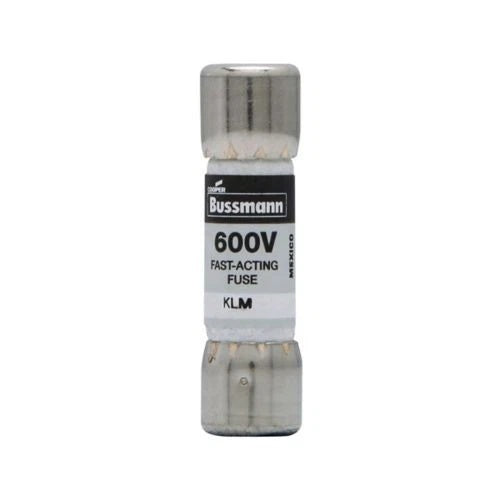

Bussmann KLM-1/4 Fuse

SKU: LL1-BSM-KLM-1/4

$46.68

Available

PRODUCT GALLERY 01 / 1

✓ Product images for part identification

Eaton Bussmann

Bussmann KLM-1/4 Fuse

SKU: LL1-BSM-KLM-1/4

PRODUCT PRICE USD

$46.68

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	KLM-1/4
Product Category	Fuse
Series	Limitron KLM
Fuse Class	Midget
Amperage Rating	0.25 A (1/4 A)
Voltage Rating AC	600 Vac
Voltage Rating DC	600 Vdc
Interrupt Rating AC	100 kAIC at 600 Vac
Interrupt Rating DC	50 kAIC at 600 Vdc
Action	Fast-acting
Body Material	Melamine tube
Endcap Material	Nickel-plated bronze
Fuse Indicator	Non-indicating
Product Weight	0.18 lb
Compliances	RoHS Compliant, CE Marked

Key Features

0.25 A Dual AC/DC Fuse

The KLM-1/4 is a 0.25 A midget fuse rated for 600 Vac and 600 Vdc applications.

100 kAIC AC / 50 kAIC DC Interrupt

Eaton publishes interrupt ratings of 100 kAIC at 600 Vac and 50 kAIC at 600 Vdc.

Limitron Fast-Acting Series

The KLM-1/4 is a fast-acting fuse within the Limitron KLM series.

Melamine Tube Body

The fuse is constructed with a melamine tube and nickel-plated bronze endcaps.

DC Circuit Suitability

Eaton documentation lists DC control circuits and DC photovoltaic systems among the applications for the KLM series.

Applications

DC control circuits
DC photovoltaic systems
Industrial control panels
Supplemental overcurrent protection
600 Vac control circuits requiring fast-acting fuses
600 Vdc circuits requiring 50 kAIC interruption

Purchase Information

We support online purchase of the Bussmann KLM-1/4 Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann KLM-1/4? The KLM-1/4 is an Eaton Bussmann Series Limitron KLM fast-acting midget fuse rated 0.25 A at 600 Vac and 600 Vdc.

What is the amperage rating of the KLM-1/4? The KLM-1/4 is rated 0.25 A (1/4 A).

What are the voltage ratings of the KLM-1/4? Eaton specifies 600 Vac and 600 Vdc voltage ratings.

What is the interrupt rating at 600 Vac? The interrupt rating is 100 kAIC at 600 Vac.

What is the interrupt rating at 600 Vdc? The interrupt rating is 50 kAIC at 600 Vdc.

Is the KLM-1/4 fast-acting? Yes. The KLM series is described as fast-acting.

What material is the KLM-1/4 body? The fuse uses a melamine tube with nickel-plated bronze endcaps.

Does the KLM-1/4 have a visual indicator? No. The KLM-1/4 is non-indicating.

What applications are associated with the KLM-1/4? Eaton documentation lists DC control circuits and DC photovoltaic systems.

What is the product weight of the KLM-1/4? The published product weight is 0.18 lb.

Is the KLM-1/4 RoHS compliant? Yes. Eaton lists RoHS compliance and CE marking.
