110-200 A Rating
The JM60200-3CR modular fuse block has a documented amperage rating range of 110 to 200 A.

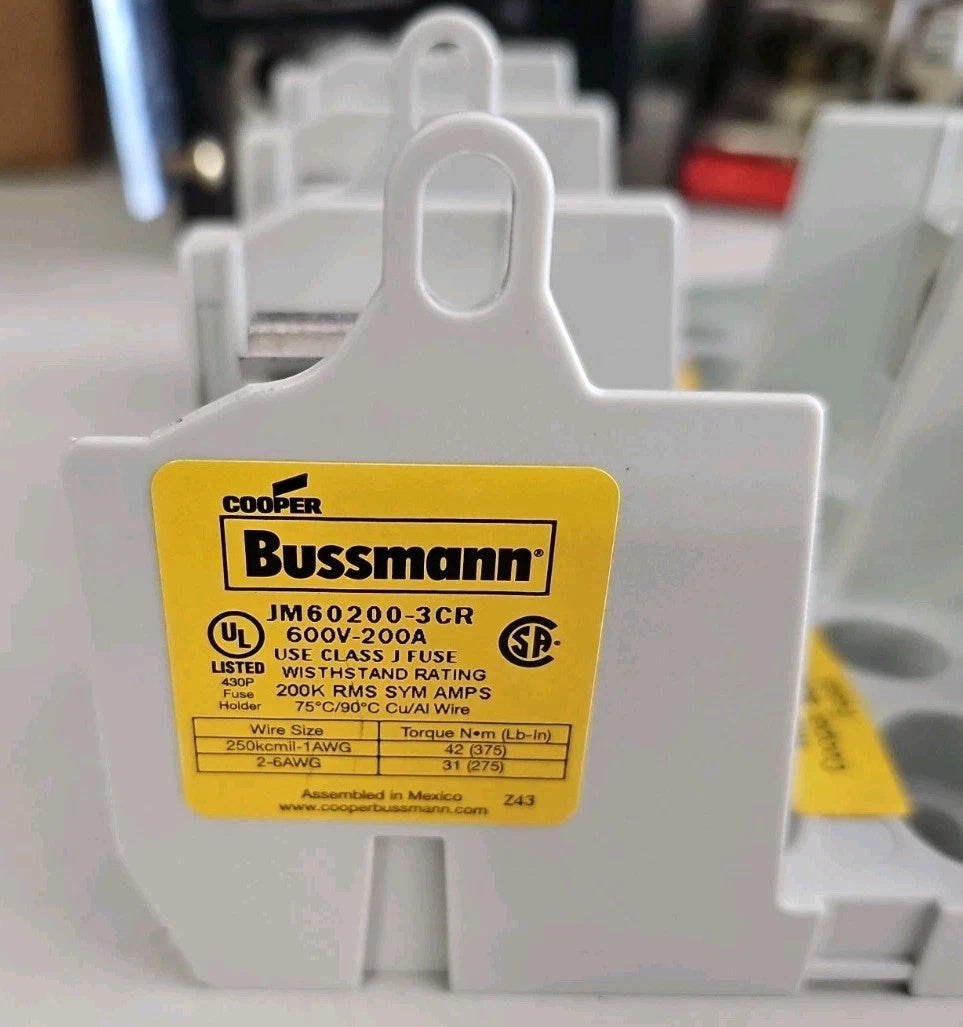

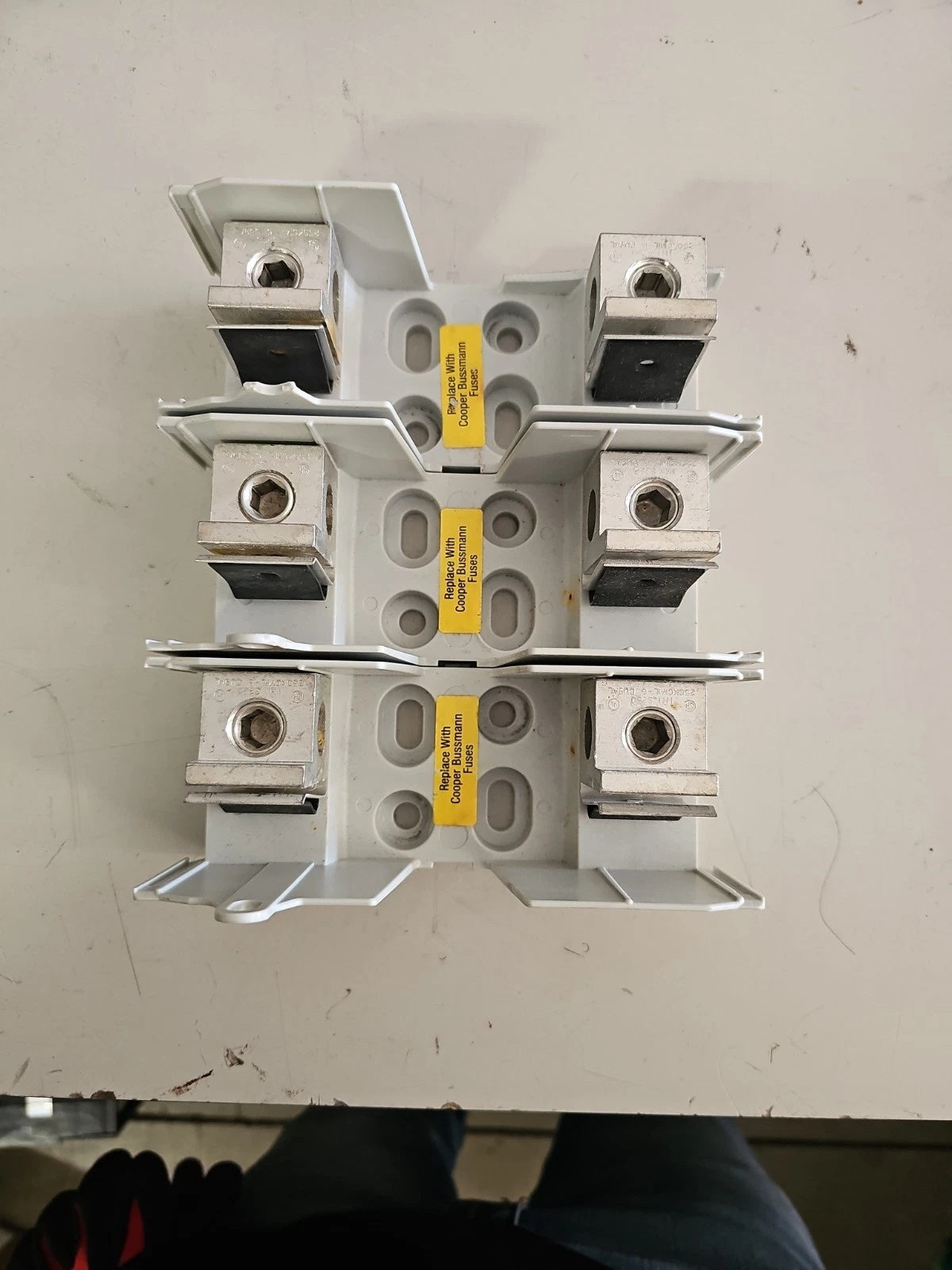

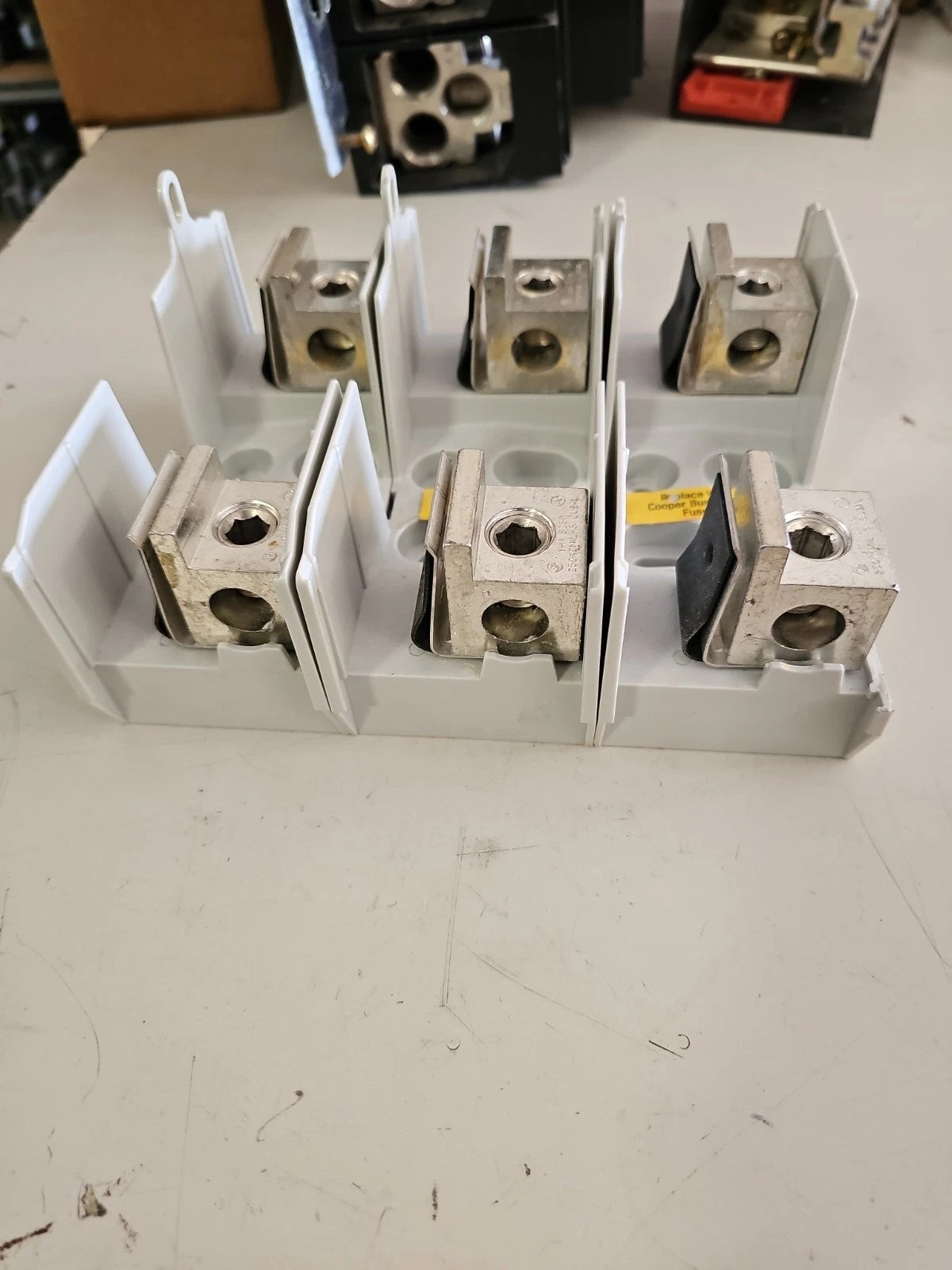

Bussmann JM60200-3CR Class J Fuse Block 110-200A 600V 3-Pole Fuse Holder
Available in stock (2000)
Regular price
$358.98
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Bussmann |
| Model Number | JM60200-3CR |
| Product Category | Class J Fuse Block |
| Product Type | Modular Fuse Block |
| Series | JM |
| Fuse Class | Class J |
| Amperage Rating | 110-200 A |
| Voltage Rating | 600 V |
| Number of Poles | Three-Pole |
| Interrupt Rating | 200 kAIC |
| Short-Circuit Rating | 200 kA |
| Connection | Knife Blade End × Knife Blade End |
| Special Features | CR |
| Product Length/Depth | 7.25 in |
| Product Height | 3.76 in |
| Product Width | 6.25 in |
| Product Weight | 2.42 lb |
| Compliance | RoHS Compliant, CE Marked |
| Certifications | UL Listed, CSA Certified |
Key Features
600 V Rating
The fuse block has a documented voltage rating of 600 V for Class J fuse applications.
Three-Pole Configuration
The JM60200-3CR provides a three-pole configuration for mounting Class J fuses.
Class J Design
The fuse block is designed around the dimensional and connection requirements of Class J fuses.
200 kA Short-Circuit Rating
The documented short-circuit rating is 200 kA, with an interrupt rating of 200 kAIC.
Knife Blade Connections
The JM60200-3CR uses knife blade end to knife blade end fuse connections.
Applications
- Class J fuse mounting
- Industrial control panels
- Electrical distribution panels
- Industrial machinery circuits
- Feeder circuit protection assemblies
- Branch circuit protection assemblies
- Power distribution equipment
- Electrical equipment panels
Purchase Information
We support online purchase of the Bussmann JM60200-3CR Class J Fuse Block. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Bussmann JM60200-3CR?
Bussmann JM60200-3CR is a JM series modular fuse block designed for Class J fuse applications.
What is the amperage rating of JM60200-3CR?
The documented amperage rating range is 110 to 200 A.
What is the voltage rating of JM60200-3CR?
The documented voltage rating is 600 V.
How many poles does JM60200-3CR have?
The JM60200-3CR is a three-pole modular fuse block.
What fuse class is JM60200-3CR designed for?
It is designed for Class J fuses.
What is the short-circuit rating of JM60200-3CR?
The documented short-circuit rating is 200 kA.
What is the interrupt rating of JM60200-3CR?
The documented interrupt rating is 200 kAIC.
What connection type does JM60200-3CR use?
The documented fuse connection is knife blade end to knife blade end.
What are the dimensions of JM60200-3CR?
The documented dimensions are 7.25 inches length/depth, 3.76 inches height and 6.25 inches width.
What is the weight of JM60200-3CR?
The documented product weight is 2.42 lb.
What certifications are listed for JM60200-3CR?
The product is listed with UL and CSA certifications and is also documented as CE Marked and RoHS Compliant.
What should be checked before ordering JM60200-3CR?
Check the complete JM60200-3CR catalog number, required 110-200 A range, 600 V rating, three-pole configuration, Class J fuse requirements, connection arrangement and equipment specifications before purchasing.
