Eaton Bussmann

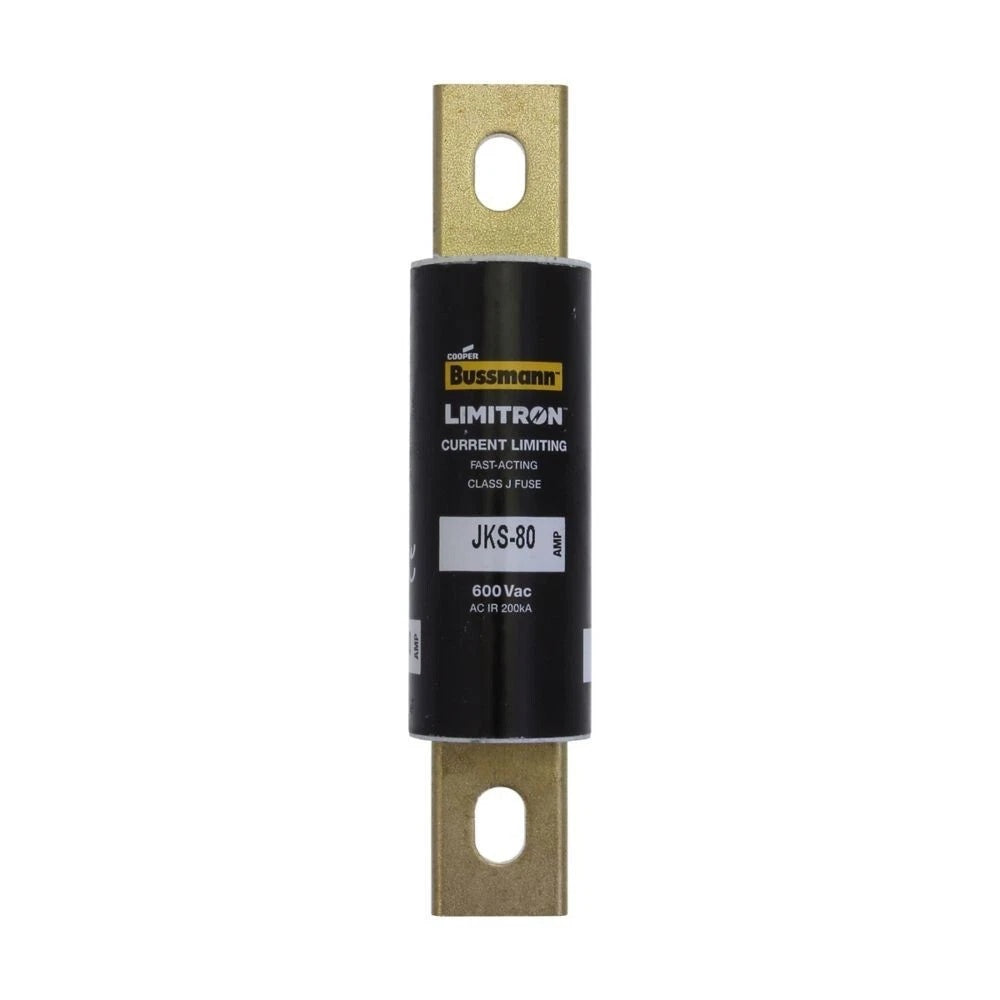

Bussmann JKS-80 Fuse

SKU: LL1-BSM-JKS-80

$55.63

Available

PRODUCT GALLERY 01 / 1

✓ Product images for part identification

Eaton Bussmann

Bussmann JKS-80 Fuse

SKU: LL1-BSM-JKS-80

PRODUCT PRICE USD

$55.63

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	JKS-80
Product Category	Fuse
Amperage Rating	80 A
Voltage Rating	600 Vac
Interrupting Rating	200 kAIC at 600 Vac
Fuse Class	Class J
Fuse Speed	Fast-Acting
Current-Limiting	Yes
Connection	Bolted blade end x bolted blade end
Number of Elements	1
Fuse Indicator	Non-indicating
Compliances	CE Marked, RoHS Compliant, UL Listed, CSA Certified

Key Features

Fast-Acting Class J Protection

Provides fast-acting response for Class J branch circuit protection in compatible industrial applications.

Current-Limiting Design

Current-limiting construction helps reduce let-through energy under fault conditions within its published ratings.

200 kAIC Interrupting Rating

Published interrupting rating of 200 kAIC at 600 Vac supports use in circuits with high available fault currents.

600 Vac Voltage Rating

Rated for 600 Vac applications with an 80 A amperage rating.

Bolted Blade End Connection

Bolted blade end configuration for 70 A and higher Class J fuse applications.

UL and CSA Listed

UL Listed per Standard 248-8 and CSA Certified per C22.2 No. 248.8 for Class J fuses.

Applications

Industrial control panels
Machinery disconnects
Power panelboards
Branch circuit protection
Motor circuit branch protection
Transformer protection in compatible circuits
General-purpose industrial equipment
Control system maintenance projects

Purchase Information

We support online purchase of the Bussmann JKS-80 Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann JKS-80? The JKS-80 is a Bussmann Series Class J fast-acting, current-limiting fuse rated 80 A at 600 Vac.

What is the voltage rating of JKS-80? The voltage rating is 600 Vac.

What is the amperage rating of JKS-80? The amperage rating is 80 A.

What is the interrupting rating of JKS-80? The interrupting rating is 200 kAIC at 600 Vac.

What fuse class is JKS-80? JKS-80 is a Class J fuse.

Is JKS-80 fast-acting? Yes. JKS-80 is a fast-acting fuse.

Is JKS-80 current-limiting? Yes. JKS-80 is a current-limiting fuse.

What connection type does JKS-80 use? JKS-80 uses bolted blade end x bolted blade end connections.

What compliances apply to JKS-80? JKS-80 is CE Marked, RoHS Compliant, UL Listed per Standard 248-8, and CSA Certified per C22.2 No. 248.8.

Can JKS-80 be used in motor circuits? It can be considered for motor branch circuit protection after verifying the full circuit requirements and applicable code requirements.

What should be checked before ordering JKS-80? Check the complete catalog number, amperage rating, voltage rating, interrupt rating, fuse class, holder compatibility, and applicable electrical code requirements.
