Eaton Bussmann

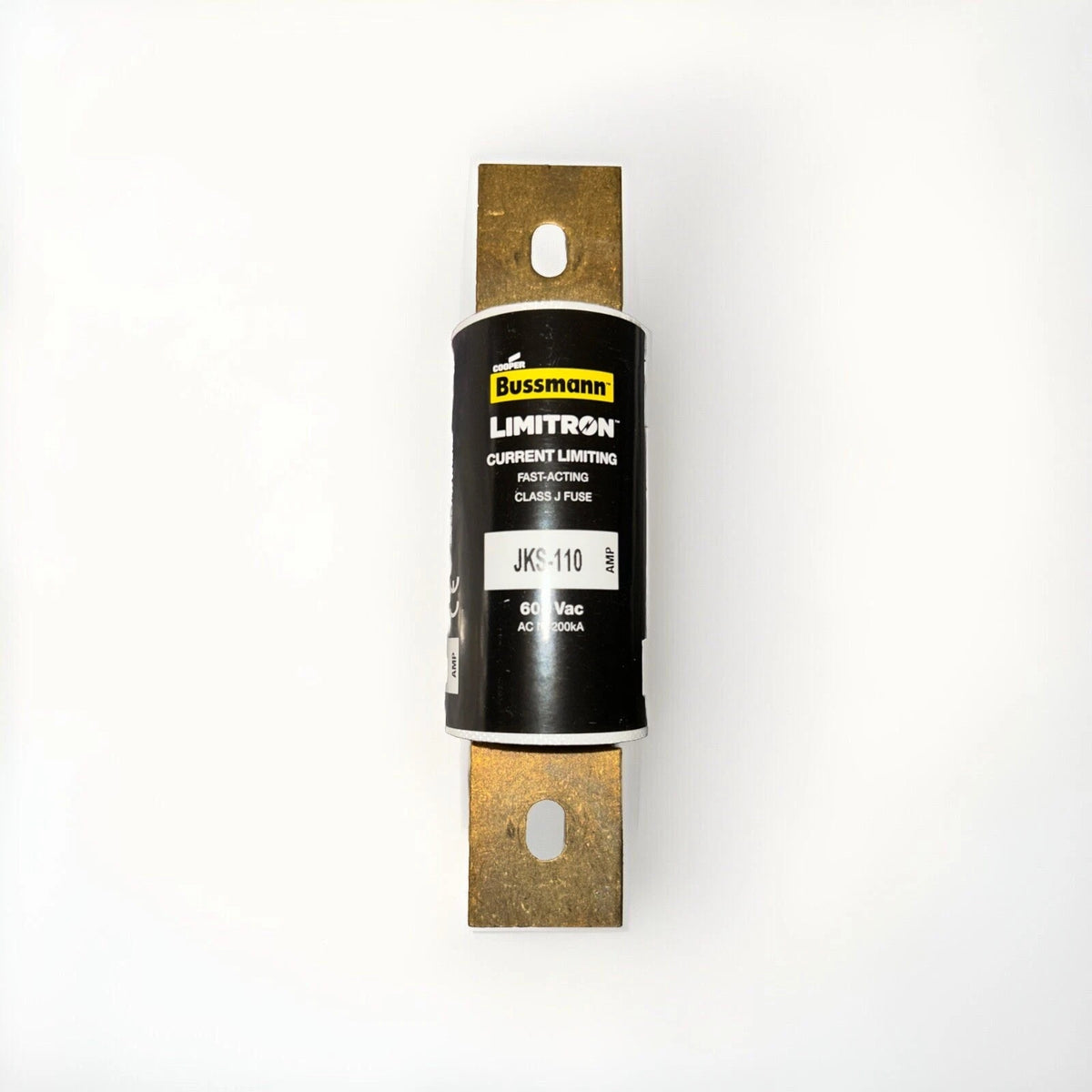

Bussmann JKS-110 Fuse

SKU: LL1-BSM-JKS-110

$67.80

Available

PRODUCT GALLERY 01 / 1

✓ Product images for part identification

Eaton Bussmann

Bussmann JKS-110 Fuse

SKU: LL1-BSM-JKS-110

PRODUCT PRICE USD

$67.80

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	JKS-110
Product Category	Fuse
Series	Limitron JKS
Fuse Class	Class J
Amperage Rating	110 A
Voltage Rating	600 Vac
Interrupt Rating	200 kAIC at 600 Vac
Action	Fast-acting, current-limiting
Connection Type	Bolted blade end x bolted blade end
Fuse Indicator	Non-indicating
Number of Elements	1
Product Length	5.75 in
Product Diameter	1.5 in
Product Weight	0.855 lb
Compliances	RoHS Compliant

Key Features

Class J Fast-Acting Design

The JKS-110 is a Class J fast-acting fuse designed for current-limiting protection in industrial circuits rated up to 600 Vac.

200 kAIC Interrupt Rating

Published specifications identify a 200 kAIC interrupting rating at 600 Vac for the JKS-110.

Current-Limiting Construction

The Limitron JKS series is described as current-limiting, intended to help limit short-circuit currents in compatible electrical systems.

Bolted Blade Terminals

This fuse uses bolted blade end connections on both ends for installation in compatible fuse holders or mounting configurations.

Non-Indicating Body

The JKS-110 is a non-indicating fuse; it does not include a visual blown-fuse indicator.

Applications

Industrial power panelboards
Machinery disconnects
Branch circuit protection in compatible equipment
Motor circuit protection where Class J fuses are specified
Control panel fuse protection
Electrical distribution equipment requiring 600 Vac Class J fuses

Purchase Information

We support online purchase of the Bussmann JKS-110 Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann JKS-110? The JKS-110 is an Eaton Bussmann Series Class J fast-acting, current-limiting fuse rated 110 A at 600 Vac.

What is the voltage rating of the JKS-110? The published voltage rating is 600 Vac.

What is the interrupt rating of the JKS-110? The interrupt rating is 200 kAIC at 600 Vac.

Is the JKS-110 fast-acting? Yes. Eaton documentation describes the JKS series as fast-acting.

Is the JKS-110 current-limiting? Yes. Eaton documentation identifies the JKS series as current-limiting.

What Class is the JKS-110? The JKS-110 is a Class J fuse.

Does the JKS-110 have a blown-fuse indicator? No. Eaton specifies the JKS-110 as non-indicating.

What type of connections does the JKS-110 have? Eaton specifies bolted blade end x bolted blade end connections.

What are the physical dimensions of the JKS-110? Eaton lists a product length/depth of 5.75 in and a product height and width of 1.5 in.

What is the product weight of the JKS-110? The published product weight is 0.855 lb.

Where is the JKS-110 commonly used? Eaton documentation lists power panelboards and machinery disconnects among the applications for the JKS series.
