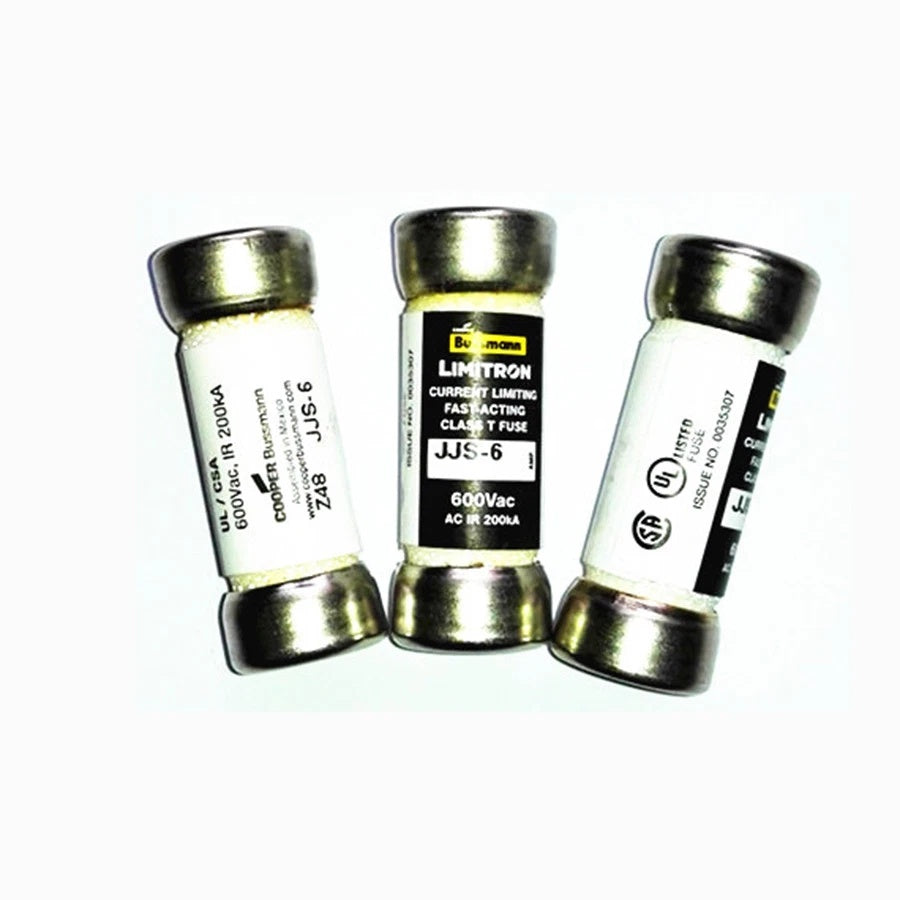

Bussmann C Class T Fuse

PRODUCT PRICE USD

$23.76

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Shop with confidence

Bulk orders & part matching

Contact our team for quantity requests and help confirming your part number.

Contact our team

Service Guarantee

Shipping

Free standard shipping within the U.S.

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Returns

30 days returns. Seller pays for return shipping.

View return policy

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	JJS-6
Product Category	Class T Fuse
Fuse Class	Class T
Fuse Type	Very Fast-Acting, Current-Limiting
Current Rating	6 A
Voltage Rating	600 VAC
Interrupting Rating	200 kA at 600 VAC
Fuse Indicator	Non-Indicating
Connection	Ferrule End x Ferrule End
Body Style	Cartridge, Cylindrical
Dimensions	Approx. 0.56 in diameter x 1.5 in length
Weight	Approx. 0.15 lb
Certifications	UL Listed, CSA Certified, CE Marked

Key Features

6 A Class T Fuse

6 A current rating at 600 VAC in a very fast-acting Class T body.

200 kA at 600 VAC

Published 200 kA interrupting rating for Class T circuits with high prospective fault current.

Current-Limiting Very Fast-Acting

Very fast-acting response with current limitation for component short-circuit protection.

Compact Cylindrical Construction

Space-saving design for panels where Class T fuse size is critical.

Ferrule Ends

Ferrule end x ferrule end terminations for compatible Class T fuse holders.

Applications

VFD line protection in compact enclosures
Industrial branch circuit protection
Control panel short-circuit protection
Space-restricted distribution equipment
Multi-family meter stacks
Circuits specifying very fast-acting Class T fuses

Purchase Information

We support online purchase of the Bussmann JJS-6 Class T Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann JJS-6? The JJS-6 is a Class T very fast-acting current-limiting fuse rated 6 A at 600 VAC.

What is the interrupt rating of the JJS-6? The published interrupt rating is 200 kA at 600 VAC.

Is the JJS-6 a time-delay fuse? No. The JJS-6 is very fast-acting and does not incorporate intentional time delay.

Does the JJS-6 have a DC voltage rating? The published voltage rating is 600 VAC. A DC rating is not specified for this catalog number in the cited source.

Is the JJS-6 indicating? No, the JJS-6 is non-indicating.

What terminal style does the JJS-6 use? Ferrule end x ferrule end connections.

What certifications does the JJS-6 hold? The JJS-6 is UL Listed, CSA Certified, and CE Marked.

What are the approximate dimensions of the JJS-6? Published dimensions are approximately 0.56 inches in diameter by 1.5 inches in length.
