Eaton Bussmann

Bussmann JJS-500 Fuse

SKU: LL1-BSM-JJS-500

$256.47

Available

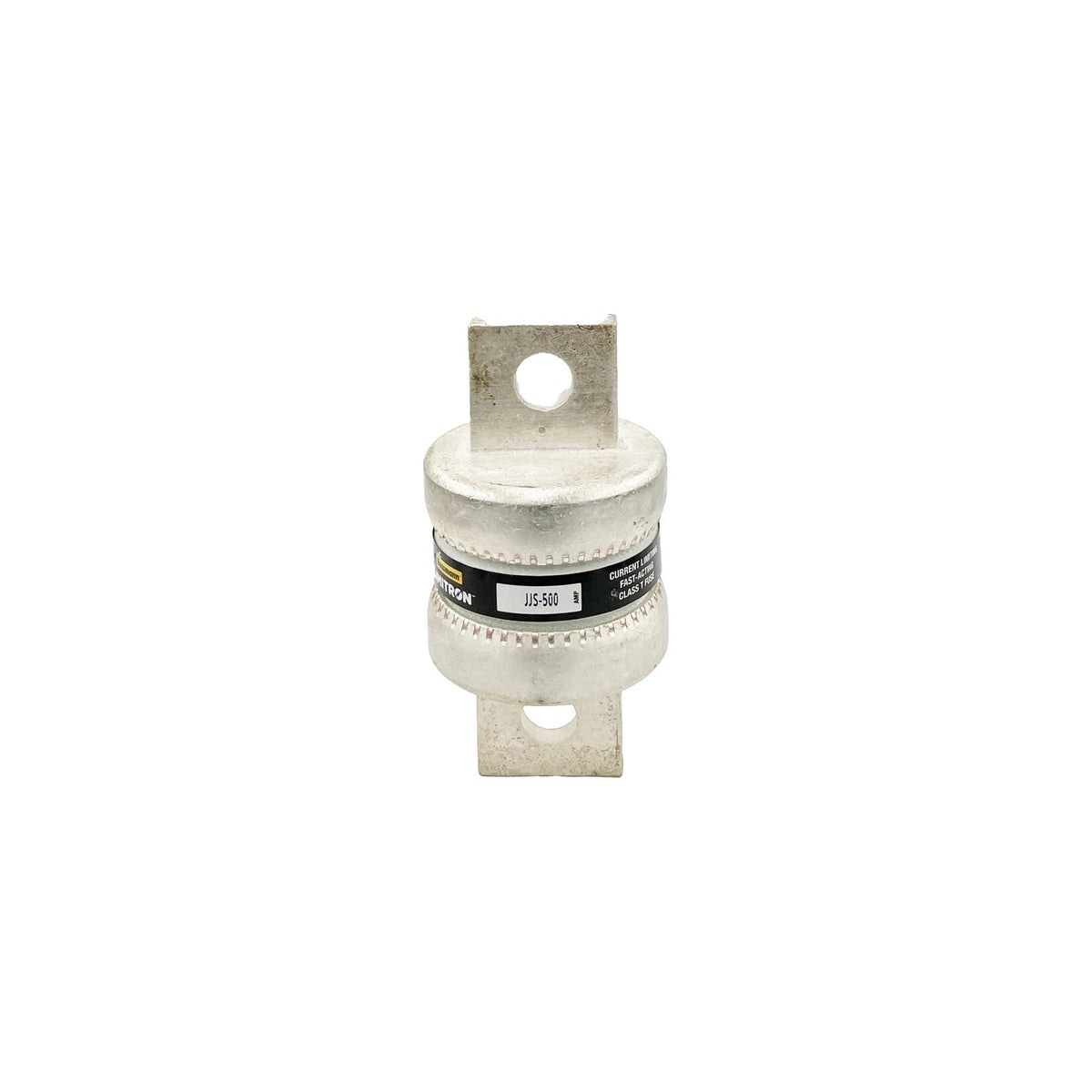

PRODUCT GALLERY 01 / 1

✓ Product images for part identification

Eaton Bussmann

Bussmann JJS-500 Fuse

SKU: LL1-BSM-JJS-500

PRODUCT PRICE USD

$256.47

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	JJS-500
Product Category	Class T Fuse
Series	Limitron T-Tron JJS
Amperage Rating	500 A
Voltage Rating	600 VAC
Interrupt Rating	200 kAIC at 600 Vac
Fuse Class	Class T
Action	Very Fast-Acting
Current-Limiting	Yes
Indication	Non-Indicating
Connection	Bolted Blade End x Bolted Blade End
Product Length	3.98 in
Compliances	CE Marked, RoHS Compliant
Packaging Type	Standard

Key Features

Class T Current-Limiting Design

Class T current-limiting construction helps limit let-through energy during short-circuit events for downstream equipment protection.

200 kAIC Interrupt Rating

Rated for 200 kAIC at 600 Vac, suitable for large-capacity electrical systems requiring high short-circuit current protection.

Very Fast-Acting Performance

The JJS series is classified as very fast-acting, providing rapid response to overcurrent conditions in sensitive circuits.

Bolted Blade Terminals

Bolted blade end connections on both ends provide secure electrical contact in compatible fuse holders and mounting configurations.

Non-Indicating Body

Non-indicating design without a visual blown-fuse indicator, suited for installations where remote or indirect monitoring is used.

Compact Footprint

Eaton identifies the JJS series as having a small footprint, supporting space-efficient panel layouts in industrial enclosures.

Applications

VFD line protection
Motor branch circuit protection
Industrial control panels
Distribution equipment with high available fault current
Transformer protection in industrial facilities
General-purpose branch circuit protection requiring Class T fuses
Large-capacity electrical systems needing 200 kAIC interrupting rating

Purchase Information

We support online purchase of the Bussmann JJS-500 Class T Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann JJS-500? The JJS-500 is a 500 A, 600 VAC Class T very fast-acting current-limiting fuse from the Eaton Bussmann JJS series.

What is the voltage rating of the JJS-500? The voltage rating is 600 VAC.

What is the interrupt rating of the JJS-500? The interrupt rating is 200 kAIC at 600 Vac.

Is the JJS-500 current-limiting? Yes, the JJS series is a current-limiting fuse design.

What action speed does the JJS-500 use? The JJS series is classified as very fast-acting.

What type of connection does the JJS-500 have? It has bolted blade end connections on both ends.

Is the JJS-500 indicating? No, it is a non-indicating fuse.

What are the physical dimensions of the JJS-500? The product length is 3.98 in.

Is the JJS-500 RoHS compliant? Yes, Eaton lists the JJS-500 as CE Marked and RoHS Compliant.

What applications is the JJS-500 suitable for? It is commonly used for VFD line protection, motor branch circuits, and industrial distribution equipment requiring Class T fuses.

What should be checked before ordering? Verify the required amperage rating, 600 VAC system voltage, 200 kAIC interrupting requirement, fuse holder compatibility with bolted blade terminals, and available panel space for the 3.98 in fuse body.
