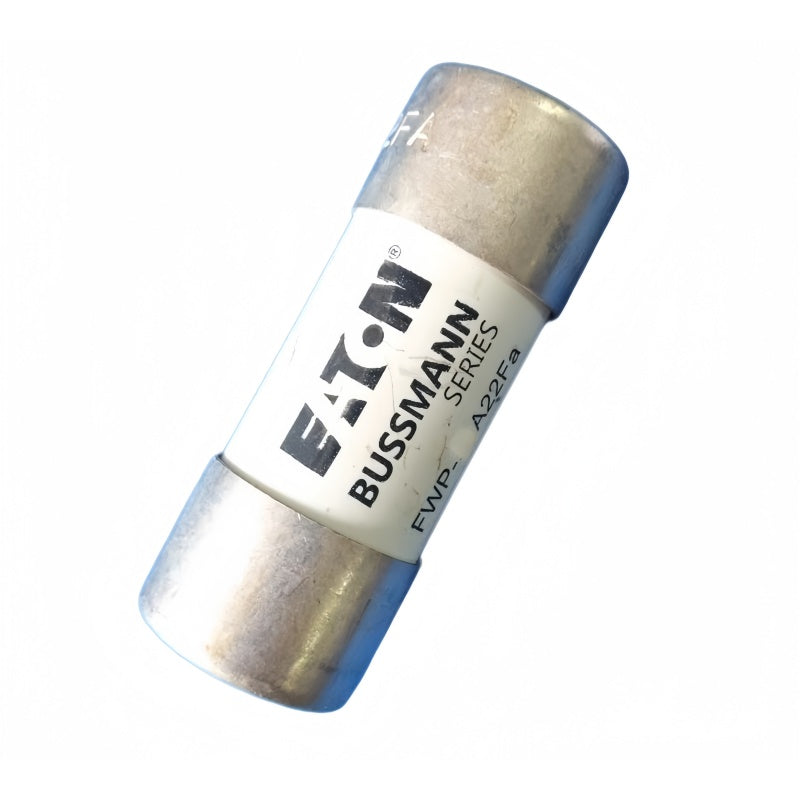

Bussmann FWP-100A22F High-Speed Fuse

SKU: LL1-BSM-FWP-100A22F

$14.22

Available

PRODUCT GALLERY 01 / 1

✓ Product images for part identification

Eaton Bussmann

Bussmann FWP-100A22F High-Speed Fuse

SKU: LL1-BSM-FWP-100A22F

PRODUCT PRICE USD

$14.22

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	FWP-100A22F
Product Category	High-Speed Fuse
Series	FWP
Current Rating	100 A
Voltage Rating AC	700 V (IEC)
Voltage Rating DC	700 V (UL)
Interrupt Rating AC	200 kAIC
Interrupt Rating DC	50 kAIC
Fuse Class	Class aR
Fuse Size	22 x 58 mm
Connection Type	Ferrule end x ferrule end
Indication	Non-Indicating
Body Material	Ceramic
Watt Losses	16.5 W
Frequency Rating	45 to 62 Hz

Key Features

100 A Ferrule High-Speed Fuse

Class aR fuse rated 100 A in a 22 x 58 mm ferrule-style cylindrical body.

700 VAC / 700 VDC Rating

Dual voltage rating for AC and DC semiconductor protection applications.

200 kAIC AC Interrupt Rating

High interrupting capacity for AC fault current limitation in industrial power circuits.

22 x 58 mm Ferrule Package

Larger ferrule body accommodates 100 A rating for holder-mounted installations.

Ceramic Construction

Ceramic body for high-energy fault interruption performance.

Non-Indicating Design

Non-indicating fuse for applications where local blown-fuse indication is not required.

Applications

Semiconductor short-circuit protection
DC common bus protection
DC drive protection
Power converter and rectifier protection
High-current industrial power electronics
AC/DC drive circuits
Fuse holder installations in control panels
Reduced voltage starter circuits

Purchase Information

We support online purchase of the Bussmann FWP-100A22F High-Speed Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann FWP-100A22F? The FWP-100A22F is a 100 A Bussmann FWP series high-speed fuse in a 22 x 58 mm ferrule body.

What is the voltage rating of FWP-100A22F? It is rated 700 VAC (IEC) and 700 VDC (UL).

What is the interrupt rating of FWP-100A22F? The interrupt rating is 200 kAIC AC and 50 kAIC DC.

What size is the FWP-100A22F? It uses a 22 x 58 mm cylindrical body with ferrule end connections.

Is FWP-100A22F indicating? No, it is non-indicating.

What is the watt loss of FWP-100A22F? The published watt loss is 16.5 W.

What frequency range does FWP-100A22F support? The frequency rating range is 45 to 62 Hz.

What material is the FWP-100A22F body? The body is ceramic.

What applications is FWP-100A22F intended for? It is applied for semiconductor protection, DC common bus, DC drives, and power converters/rectifiers.

What should be confirmed before ordering FWP-100A22F? Check 100 A current rating, AC and DC voltage requirements, Class aR coordination, 22 x 58 mm holder compatibility, and complete catalog number.
