Eaton Bussmann

Bussmann FWH-800A High-Speed Fuse

SKU: LL1-BSM-FWH-800A

$92.18

Available

PRODUCT GALLERY 01 / 1

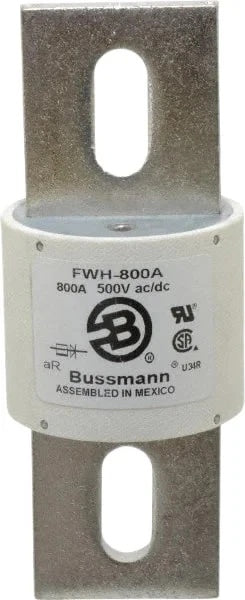

✓ Product images for part identification

Eaton Bussmann

Bussmann FWH-800A High-Speed Fuse

SKU: LL1-BSM-FWH-800A

PRODUCT PRICE USD

$92.18

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	FWH-800A
Product Category	High-Speed Fuse
Series	FWH
Current Rating	800 A RMS
Voltage Rating AC	700 V (UL), 690 V (IEC), 500 VAC
Voltage Rating DC	500 VDC
Interrupt Rating AC	200 kAIC at 1000 VAC
Interrupt Rating DC	50 kAIC at 500 VDC
Fuse Class	High-Speed
Mounting Type	Stud
Connection Type	Blade end x blade end
Indication	Non-Indicating
Watt Losses	129 W
Product Weight	1.96 lb

Key Features

800 A RMS High-Current Rating

High-speed fuse rated 800 A RMS for large industrial power circuits requiring high-current semiconductor protection.

500 VAC / 500 VDC Rating

Dual voltage rating supports AC and DC bus protection in high-power drive and converter systems.

200 kAIC Interrupt at 1000 VAC

Published interrupt rating of 200 kAIC at 1000 VAC for high available fault current applications.

Stud-Mount Blade Terminals

Blade end x blade end connections with stud mounting for bolted busbar installations.

High-Power Watt Loss

129 W watt loss rating for thermal design considerations in high-current assemblies.

Non-Indicating Fuse

Non-indicating construction for high-current systems where fuse status is monitored separately.

Applications

High-current semiconductor protection
DC common bus protection
Large DC drive circuits
Power converter and rectifier protection
High-power industrial rectifier systems
Stud-mount busbar fuse installations
AC/DC high-current power assemblies
Heavy industrial power electronics

Purchase Information

We support online purchase of the Bussmann FWH-800A High-Speed Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann FWH-800A? The FWH-800A is a Bussmann FWH series high-speed fuse rated 800 A RMS for high-current industrial protection.

What is the voltage rating of FWH-800A? It is rated 700 VAC (UL), 690 VAC (IEC), 500 VAC, and 500 VDC.

What is the interrupt rating of FWH-800A? The interrupt rating is 200 kAIC at 1000 VAC and 50 kAIC at 500 VDC.

What is the mounting type of FWH-800A? It is a stud-mount fuse with blade end x blade end connections.

What is the watt loss of FWH-800A? The published watt loss is 129 W.

What is the weight of FWH-800A? The product weight is approximately 1.96 lb.

Is FWH-800A indicating? No, it is non-indicating.

What applications use FWH-800A? It is used for semiconductor protection, DC common bus, DC drives, and power converters/rectifiers.

What certifications does FWH-800A carry? It is CE Marked, RoHS Compliant, UL Recognized, and CSA Certified.

What should be verified before ordering FWH-800A? Confirm 800 A RMS load, 500 VDC or 500-700 VAC system voltage, high fault current coordination, stud-mount busbar dimensions, and complete catalog number.
