Eaton Bussmann

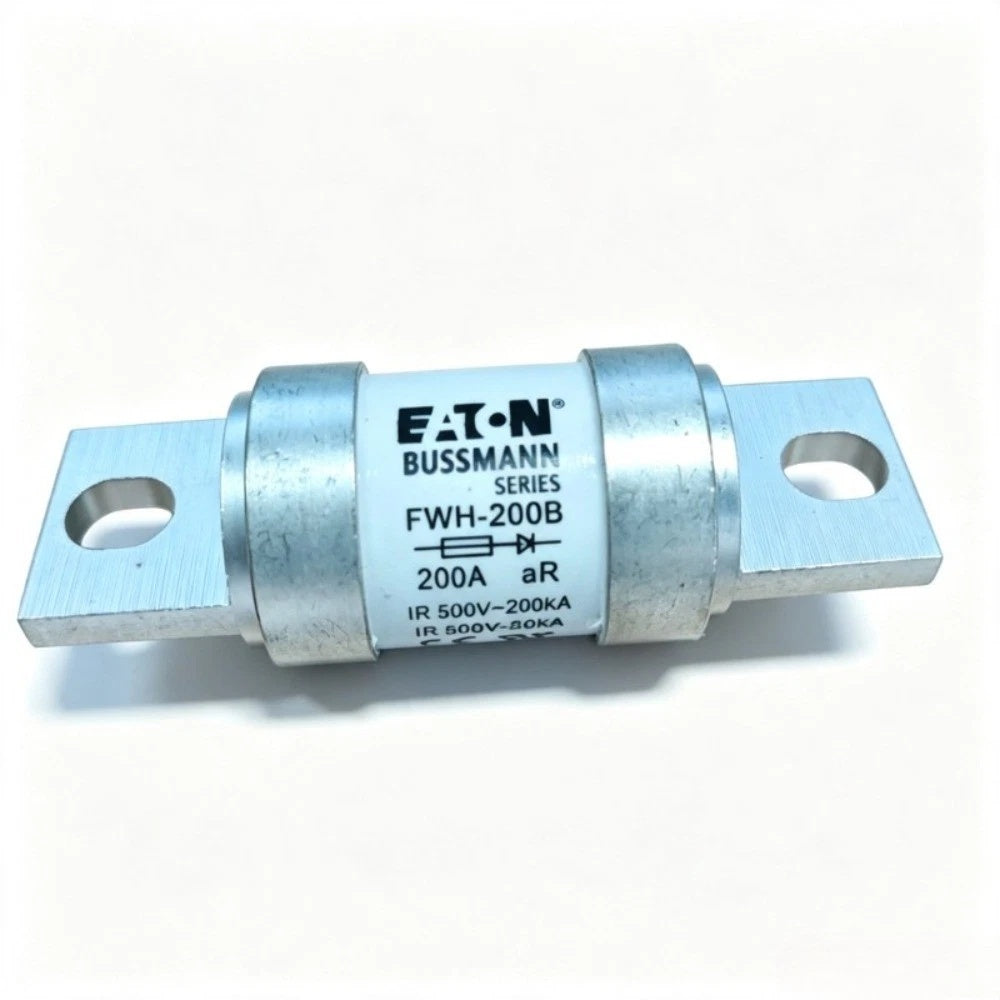

Bussmann FWH-200B Fuse

SKU: LL1-BSM- FWH-200B

$38.75

Available

PRODUCT GALLERY 01 / 1

✓ Product images for part identification

Eaton Bussmann

Bussmann FWH-200B Fuse

SKU: LL1-BSM- FWH-200B

PRODUCT PRICE USD

$38.75

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	FWH-200B
Product Category	Fuse
Series	Eaton Bussmann FWH
Fuse Type	High Speed Cylindrical Fuse
Rated Current	200 A
Rated Voltage AC	500 V
Rated Voltage DC	500 V
Breaking Capacity	200 kAIC at 300 VDC / 50 kAIC at 300 VDC
Utilization Category	Class aR
Pre-arc I2t	1900 A2s
Clearing I2t	8500 A2s
Power Loss	40 W
Fuse Shape	Center bolted tags
Connection	Blade end x blade end
Mounting	Stud, M8
Center-to-Center Distance	74.09 mm
Product Length/Depth	91 mm
Product Height	30 mm
Product Width	30 mm
Product Weight	152 g
Body Material	Ceramic
Certifications	UL Recognized, CSA Certified, CE Marked, RoHS Compliant

Key Features

200 A High-Speed Fuse

FWH series cylindrical high-speed fuse rated 200 A, Class aR, for semiconductor and DC common bus protection.

500 VAC / 500 VDC Rating

Rated 500 VAC and 500 VDC for dual AC/DC circuit protection in power electronics equipment.

200 kAIC Breaking Capacity

200 kAIC at 300 VDC and 50 kAIC at 300 VDC interrupting ratings for high fault energy conditions.

Ceramic Body with Bolted Tags

Ceramic cylindrical body with center bolted tags, blade-end connections, and M8 stud mounting for durable high-current installations.

UL Recognized and CSA Certified

Carries UL Recognition, CSA Certification, and CE marking for global industrial use.

Applications

Semiconductor protection
DC common bus
DC drives
Power converters and rectifiers
Industrial power electronics
AC and DC high-energy protection
FWH series fuse replacement
Heavy-duty drive and rectifier circuits

Purchase Information

We support online purchase of the Bussmann FWH-200B Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann FWH-200B? The Bussmann FWH-200B is a high-speed cylindrical fuse from the Eaton Bussmann FWH series, rated 200 A at 500 VAC / 500 VDC.

What is the voltage rating of the FWH-200B? It is rated 500 VAC and 500 VDC.

What is the breaking capacity of the FWH-200B? The FWH-200B offers 200 kAIC at 300 VDC and 50 kAIC at 300 VDC.

What class is the FWH-200B? It is Class aR, intended for semiconductor protection.

What is the power loss of the FWH-200B? The published power loss is 40 W.

What are the dimensions of the FWH-200B? The fuse is 91 mm long, 30 mm high, and 30 mm wide, with an M8 stud mounting and 74.09 mm center-to-center distance.

What material is the FWH-200B body? The body is ceramic.

What certifications does the FWH-200B hold? It is UL Recognized, CSA Certified, CE Marked, and RoHS Compliant.

What is the pre-arc I2t of the FWH-200B? The pre-arc I2t is 1900 A2s, with a clearing I2t of 8500 A2s.

What should be checked before ordering an FWH-200B? Verify the catalog number, voltage and current ratings, mounting configuration, and certification requirements against the application.
