Eaton Bussmann

Bussmann FNM-8/10 Time-Delay Midget Fuse 800mA 250VAC

SKU: LL1-BSM-FNM8/10*1

$6.12

Available

PRODUCT GALLERY 01 / 2

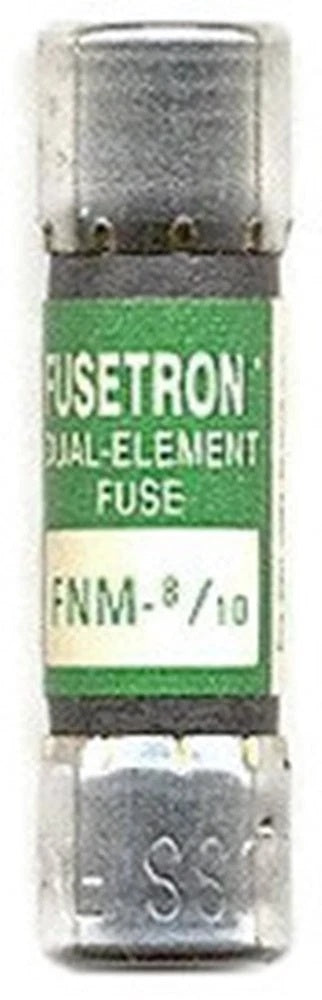

Bussmann FNM-8/10 Time-Delay Midget Fuse 800mA 250VAC

✓ Product images for part identification

Eaton Bussmann

Bussmann FNM-8/10 Time-Delay Midget Fuse 800mA 250VAC

SKU: LL1-BSM-FNM8/10*1

PRODUCT PRICE USD

$6.12

Available to order

Select Option Choose your purchase option

Quantity

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann (Eaton)
Model Number	FNM-8/10
Product Category	Time-Delay Midget Fuse
Fuse Series	FNM
Current Rating	0.8 A (800 mA, 8/10 A)
AC Voltage Rating	250 VAC
Operating Characteristic	Time-Delay
Fuse Element	Dual Element
Fuse Format	Midget Cartridge Fuse (5AG)
Nominal Dimensions	10.3 x 38.1 mm (13/32 x 1-1/2 in)
Termination Style	Ferrule End Caps
Fuse Indication	Non-Indicating
Interrupting Rating at 250 VAC	35 AIC
Interrupting Rating at 125 VAC	10 kAIC
Fuse Body Material	Fiberglass
End Cap Material	Nickel-Plated Bronze
UPC	051712520089
Compliance	UL Listed (UL 248-14, File E19180); CSA Certified (Class 1422-01, File 53787); CE Marked; RoHS Compliant
Protection Type	Supplemental Overcurrent Protection

Key Features

800 mA Current Rating

Provides supplemental overcurrent protection for electrical circuits requiring a 0.8 A time-delay fuse rating.

250 VAC Voltage Rating

Designed for compatible AC control and equipment circuits operating within the specified 250 VAC voltage rating.

Dual-Element Time-Delay Design

Helps accommodate certain temporary inrush currents associated with transformers, motors and inductive loads according to the published fuse time-current characteristics.

Compact Midget Cartridge Format

Uses a nominal 10.3 x 38.1 mm cylindrical fuse design for installation in appropriately rated and dimensionally compatible holders.

Voltage-Specific Interrupting Ratings

Features an interrupting rating of 35 A at 250 VAC and 10 kA at 125 VAC. The applicable rating must be checked against the prospective fault current at the actual system voltage.

Ferrule End Connections

Nickel-plated bronze end caps provide electrical contact surfaces for compatible midget fuse holders and fuse blocks.

Applications

Industrial control power transformer circuits
Low-current inductive control circuits
Circuits with temporary inrush currents
Supplemental protection of compatible motor control circuits
Industrial electrical control panels
Electrical equipment control and instrumentation circuits
Electrical equipment maintenance and replacement
Compatible 5AG midget fuse holders and fuse blocks

Purchase Information

We support online purchase of the Bussmann FNM-8/10 Time-Delay Midget Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann FNM-8/10?
It is an 800 mA time-delay midget fuse from the Eaton Bussmann FNM series, intended for supplemental overcurrent protection.

Who manufactures FNM-8/10?
FNM-8/10 is an Eaton Bussmann series fuse. The manufacturer part number is FNM-8/10.

What is the current rating?
The rated current is 0.8 A, equivalent to 800 mA or eight-tenths of an ampere.

What is the AC voltage rating?
The specified voltage rating is 250 VAC.

Is FNM-8/10 a fast-acting fuse?
No. It is a dual-element time-delay fuse intended to accommodate certain temporary inrush currents according to its operating characteristics.

What is the interrupting rating at 250 VAC?
The published interrupting rating is 35 A at 250 VAC.

What is the interrupting rating at 125 VAC?
The published interrupting rating is 10,000 A at 125 VAC. This higher interrupting rating does not apply at 250 VAC.

What are the physical dimensions?
The nominal dimensions are 10.3 mm in diameter and 38.1 mm in length, corresponding to the 5AG midget cartridge format.

Does FNM-8/10 have a blown-fuse indicator?
No. The standard FNM-8/10 is non-indicating.

What type of terminals does this fuse use?
It uses ferrule-style end caps made of nickel-plated bronze for installation in compatible fuse holders.

Can FNM-8/10 be used for branch-circuit protection?
The FNM series is designed for supplemental overcurrent protection. Applications requiring branch-circuit protection must use appropriately classified protective devices.

What should be verified before ordering?
Confirm the exact FNM-8/10 model number, 800 mA current rating, 250 VAC voltage rating, voltage-dependent interrupting capacity, time-delay characteristics, physical dimensions and fuse-holder compatibility.
