Eaton Bussmann

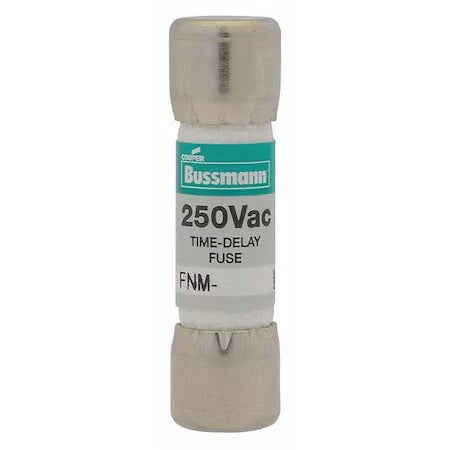

Bussmann FNM-2 Time-Delay Midget Fuse 2A 250VAC

SKU: LL1-BSM-FNM-2*1

$6.12

Available

PRODUCT GALLERY 01 / 2

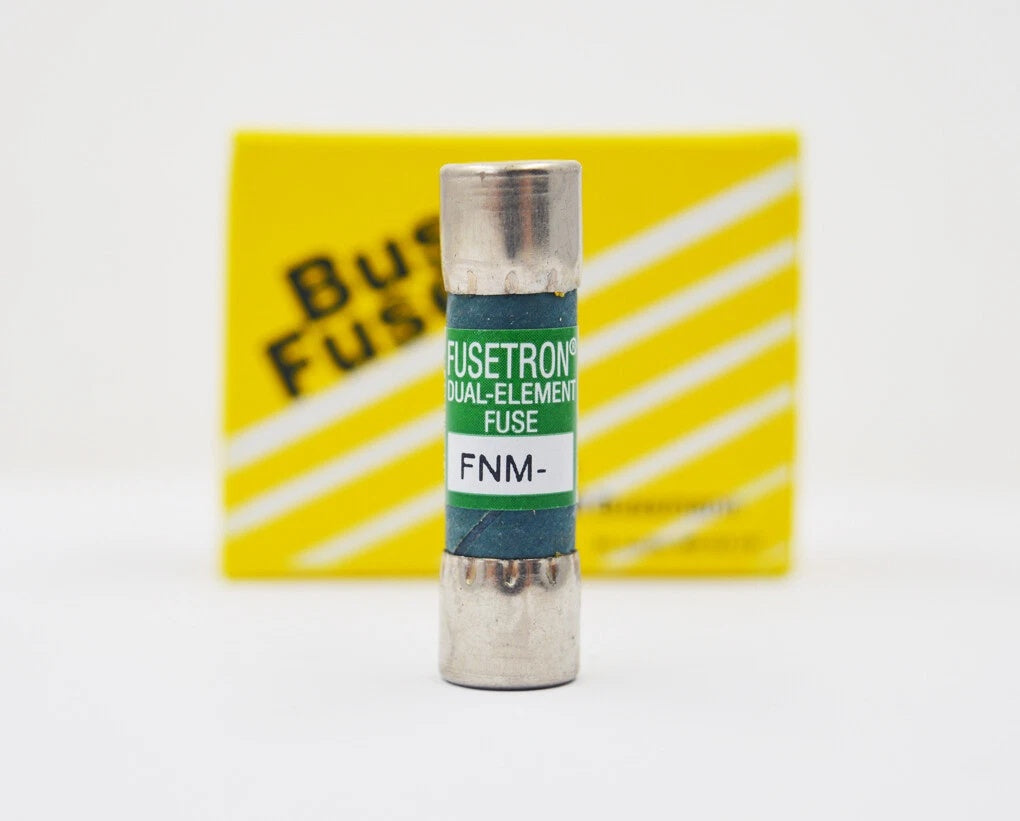

Bussmann FNM-2 Time-Delay Midget Fuse 2A 250VAC

✓ Product images for part identification

Eaton Bussmann

Bussmann FNM-2 Time-Delay Midget Fuse 2A 250VAC

SKU: LL1-BSM-FNM-2*1

PRODUCT PRICE USD

$6.12

Available to order

Select Option Choose your purchase option

Quantity

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann (Eaton)
Model Number	FNM-2
Manufacturer Catalog Number	FNM-2
Product Category	Time-Delay Midget Fuse
Fuse Series	FNM
Current Rating	2 A
AC Voltage Rating	250 VAC
Operating Characteristic	Time-Delay (Slow-Blow)
Fuse Element	Dual Element
Fuse Format	Midget Cartridge Fuse (5AG)
Nominal Dimensions	10.3 x 38.1 mm (13/32 x 1-1/2 in)
Termination Style	Ferrule End Caps
Fuse Indication	Non-Indicating
Interrupting Rating at 250 VAC	100 AIC
Interrupting Rating at 125 VAC	10 kAIC
End Cap Material	Nickel-Plated Bronze
UPC	051712520201
Compliance	CE Marked
Protection Type	Supplemental Overcurrent Protection

Key Features

2 A Current Rating

Provides supplemental overcurrent protection for electrical circuits requiring a 2 A time-delay fuse rating, subject to appropriate circuit selection.

250 VAC Voltage Rating

Suitable for compatible AC control and equipment circuits operating within the published 250 VAC voltage rating.

Dual-Element Time-Delay Design

The dual-element construction helps accommodate temporary inrush currents associated with transformers, inductive loads and compatible motor control applications.

Compact Midget Fuse Format

Uses a nominal 10.3 x 38.1 mm cylindrical cartridge format for installation in dimensionally compatible and appropriately rated fuse holders.

Voltage-Specific Interrupting Ratings

Features a 100 A interrupting rating at 250 VAC and a 10 kA interrupting rating at 125 VAC. The available fault current must not exceed the applicable rating.

Nickel-Plated Ferrule Connections

Nickel-plated bronze ferrule end caps provide electrical contact surfaces for compatible midget fuse holders and fuse blocks.

Applications

Industrial control power transformer circuits
Inductive electrical control circuits
Circuits with temporary inrush currents
Supplemental protection of compatible motor circuits
Industrial electrical control panels
General-purpose AC electrical equipment
Electrical equipment maintenance and fuse replacement
Compatible 5AG midget fuse holders and fuse blocks

Purchase Information

We support online purchase of the Bussmann FNM-2 Time-Delay Midget Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann FNM-2?
It is a 2 A time-delay midget cartridge fuse from the Eaton Bussmann FNM series, intended for supplemental overcurrent protection.

Who manufactures FNM-2?
FNM-2 belongs to the Eaton Bussmann series. Its manufacturer catalog number is FNM-2.

What is the current rating?
The rated current is 2 amperes.

What is the AC voltage rating?
The published AC voltage rating is 250 VAC maximum.

Is FNM-2 a fast-acting fuse?
No. It is a dual-element time-delay fuse intended to accommodate certain temporary inrush currents according to its time-current characteristics.

What is the interrupting rating at 250 VAC?
Eaton specifies a 100 A interrupting rating at 250 VAC for FNM-2.

What is the interrupting rating at 125 VAC?
Eaton specifies a 10,000 A interrupting rating at 125 VAC. This higher value must not be applied to a circuit operating at 250 VAC.

What are the physical dimensions?
The nominal dimensions are 10.3 mm in diameter and 38.1 mm in length, corresponding to the 5AG midget cartridge format.

Does FNM-2 have a blown-fuse indicator?
No. The standard FNM-2 is a non-indicating fuse.

What type of terminals does it use?
It uses nickel-plated bronze ferrule end caps for installation in compatible fuse holders and fuse blocks.

Can FNM-2 be used for branch-circuit protection?
The FNM series is intended for supplemental overcurrent protection. Branch-circuit applications require a protective device with the appropriate classification and interrupting capacity.

What should be verified before ordering?
Confirm the FNM-2 model number, 2 A current rating, 250 VAC voltage rating, applicable interrupting capacity, time-delay requirements, physical dimensions and fuse-holder compatibility.
