Eaton Bussmann

Bussmann FNM-1/10 Time-Delay Midget Fuse 100mA 250VAC

SKU: LL1-BSM-FNM1/10*1

$6.12

Available

PRODUCT GALLERY 01 / 2

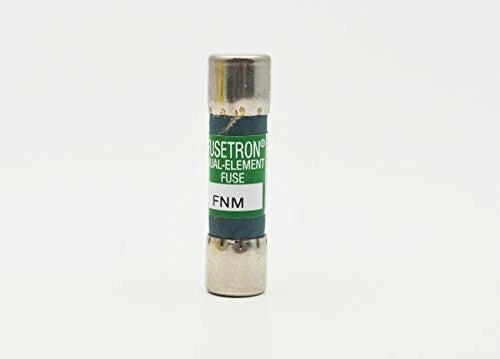

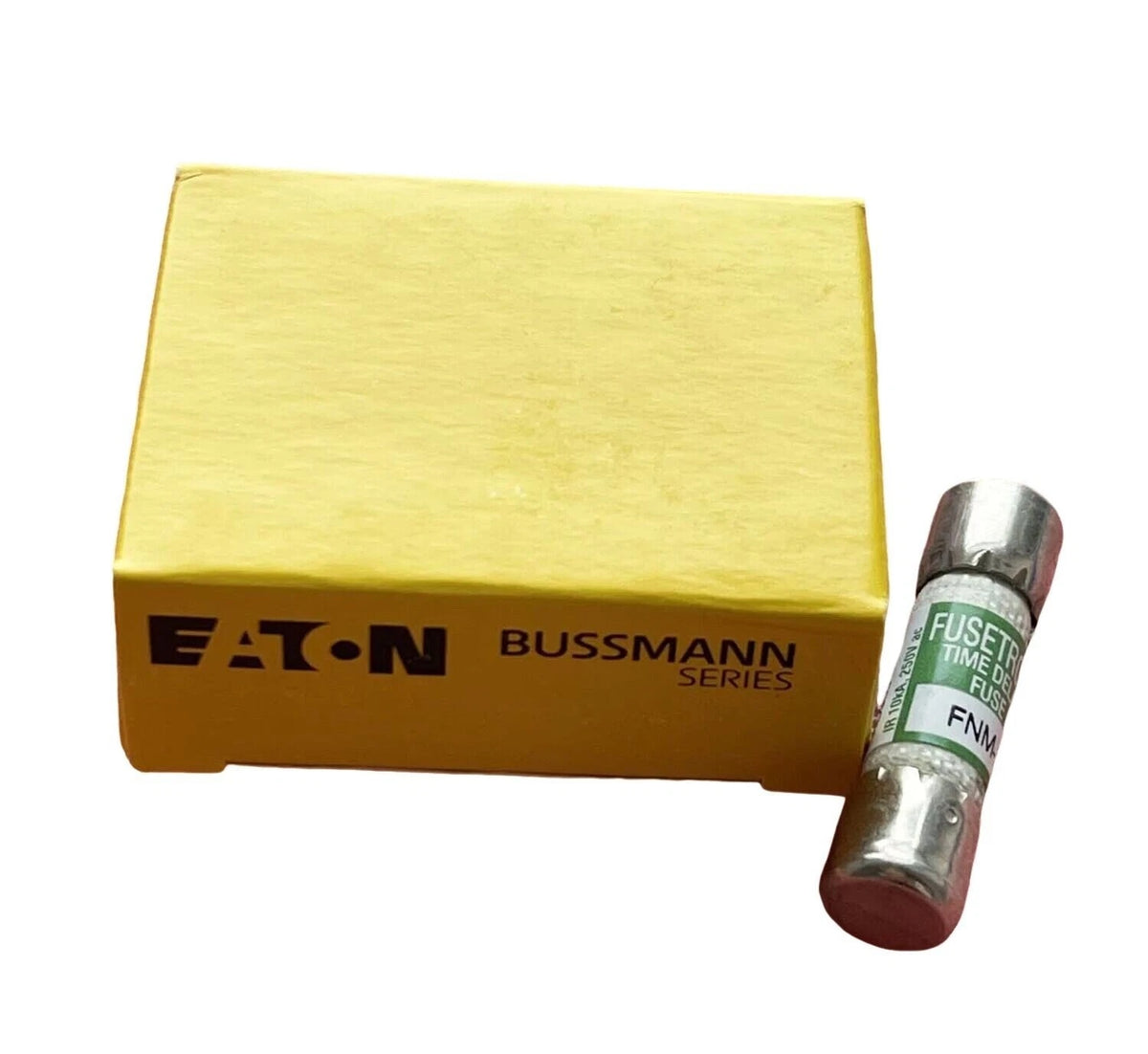

Bussmann FNM-1/10 Time-Delay Midget Fuse 100mA 250VAC

✓ Product images for part identification

Eaton Bussmann

Bussmann FNM-1/10 Time-Delay Midget Fuse 100mA 250VAC

SKU: LL1-BSM-FNM1/10*1

PRODUCT PRICE USD

$6.12

Available to order

Select Option Choose your purchase option

Quantity

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann (Eaton)
Model Number	FNM-1/10
Product Category	Time-Delay Midget Fuse
Fuse Series	FNM
Current Rating	0.1 A (100 mA, 1/10 A)
AC Voltage Rating	250 VAC
Operating Characteristic	Time-Delay (Slow-Blow)
Fuse Element	Dual Element
Fuse Format	Midget Cartridge Fuse (5AG)
Dimensions	10.3 x 38.1 mm (13/32 x 1-1/2 in)
Termination Style	Ferrule End Caps
Fuse Indication	Non-Indicating
Interrupting Rating at 250 VAC	35 A
Interrupting Rating at 125 VAC	10 kA
Fuse Body Construction	Melamine Tube
End Cap Material	Nickel-Plated Bronze
Voltage Color Code	Green (250 VAC Maximum)
Compliance	UL Listed (UL 248-14, File E19180); CSA Certified (File 53787); CE Marked; RoHS Compliant
Protection Type	Supplemental Overcurrent Protection

Key Features

100 mA Current Rating

Provides supplemental overcurrent protection for electrical circuits requiring a 0.1 A time-delay fuse rating.

250 VAC Voltage Rating

Designed for supplemental protection of appropriately specified AC circuits operating at voltages up to 250 VAC.

Dual-Element Time-Delay Design

Helps accommodate temporary inrush currents associated with inductive loads while providing overcurrent protection according to the fuse operating characteristics.

Compact Midget Fuse Format

Uses a 10.3 x 38.1 mm cylindrical cartridge design for installation in compatible fuse holders and fuse blocks.

Voltage-Dependent Interrupting Ratings

Rated to interrupt 35 A at 250 VAC and 10 kA at 125 VAC. Fuse selection must account for the available fault current at the actual system voltage.

Industrial Supplemental Protection

Features melamine tube construction and nickel-plated end caps for supplemental protection of compatible motor, transformer and inductive circuits.

Applications

Industrial control circuit transformers
Low-current inductive control circuits
Circuits with temporary inrush currents
General-purpose supplemental circuit protection
Industrial electrical control panels
Metering and instrumentation circuits
Electrical equipment maintenance and replacement
Compatible midget fuse holders and fuse blocks

Purchase Information

We support online purchase of the Bussmann FNM-1/10 Time-Delay Midget Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann FNM-1/10?
It is a 100 mA time-delay midget fuse from the Eaton Bussmann FNM series, designed for supplemental overcurrent protection.

Who manufactures the FNM-1/10?
FNM-1/10 belongs to the Eaton Bussmann series. Littelfuse FLM is a different fuse series and should not be confused with the FNM manufacturer designation.

What is its rated current?
The rated current is 0.1 A, equivalent to 100 mA or 1/10 ampere.

What is its voltage rating?
The published voltage rating is 250 VAC maximum.

Is FNM-1/10 a fast-acting fuse?
No. It is a time-delay fuse with a dual-element design intended for circuits that may experience temporary inrush currents.

What is the interrupting rating at 250 VAC?
The interrupting rating is 35 A at 250 VAC for the 100 mA version.

What is the interrupting rating at 125 VAC?
The interrupting rating is 10,000 A at 125 VAC. The 125 VAC value must not be applied to a 250 VAC system.

What are the physical dimensions?
The nominal dimensions are 10.3 mm in diameter and 38.1 mm in length, corresponding to the 5AG midget fuse format.

Does this fuse have a blown-fuse indicator?
No. The standard FNM-1/10 is a non-indicating fuse.

What materials are used?
The FNM series uses melamine tube construction and nickel-plated end caps. Eaton identifies nickel-plated bronze end caps for this model.

Can FNM-1/10 be used for branch-circuit protection?
The FNM series is classified for supplemental protection. Applications requiring branch-circuit protection need a device with the appropriate classification and interrupting rating.

What should be checked before ordering?
Verify the complete FNM-1/10 model number, 100 mA current rating, 250 VAC voltage rating, available fault current, time-delay requirements, physical dimensions and fuse-holder compatibility.
