Class CC Time-Delay
EDCC-7 is a Class CC time-delay fuse designed for motor starting and transformer inrush current protection.

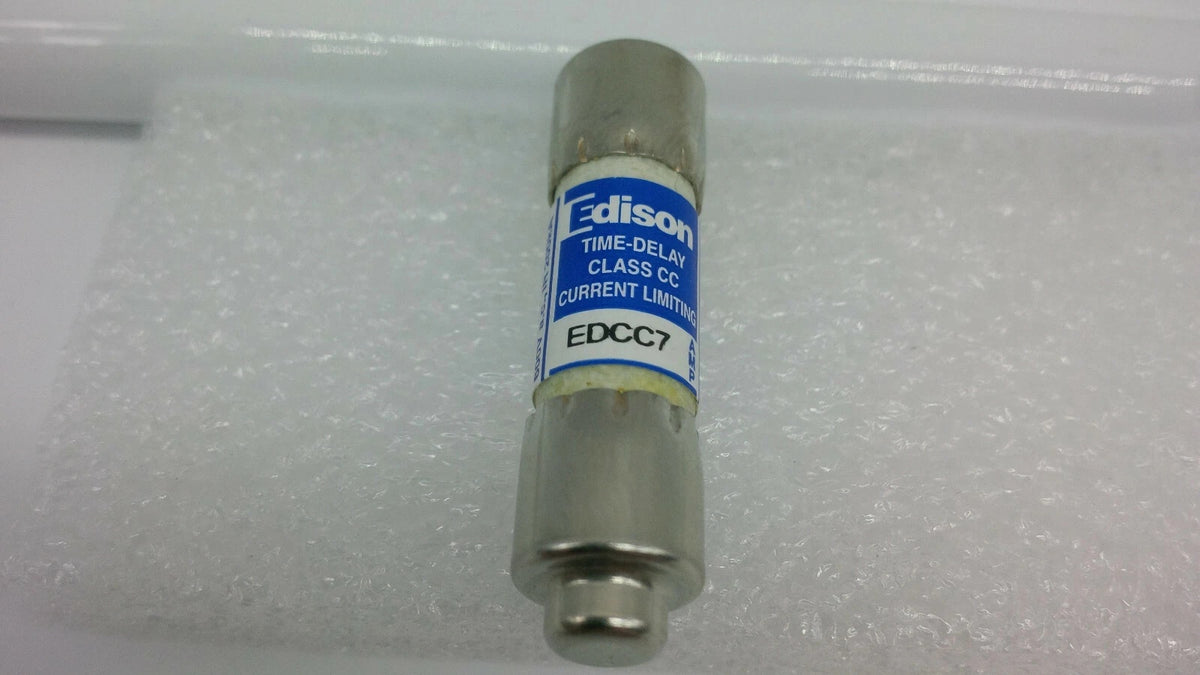

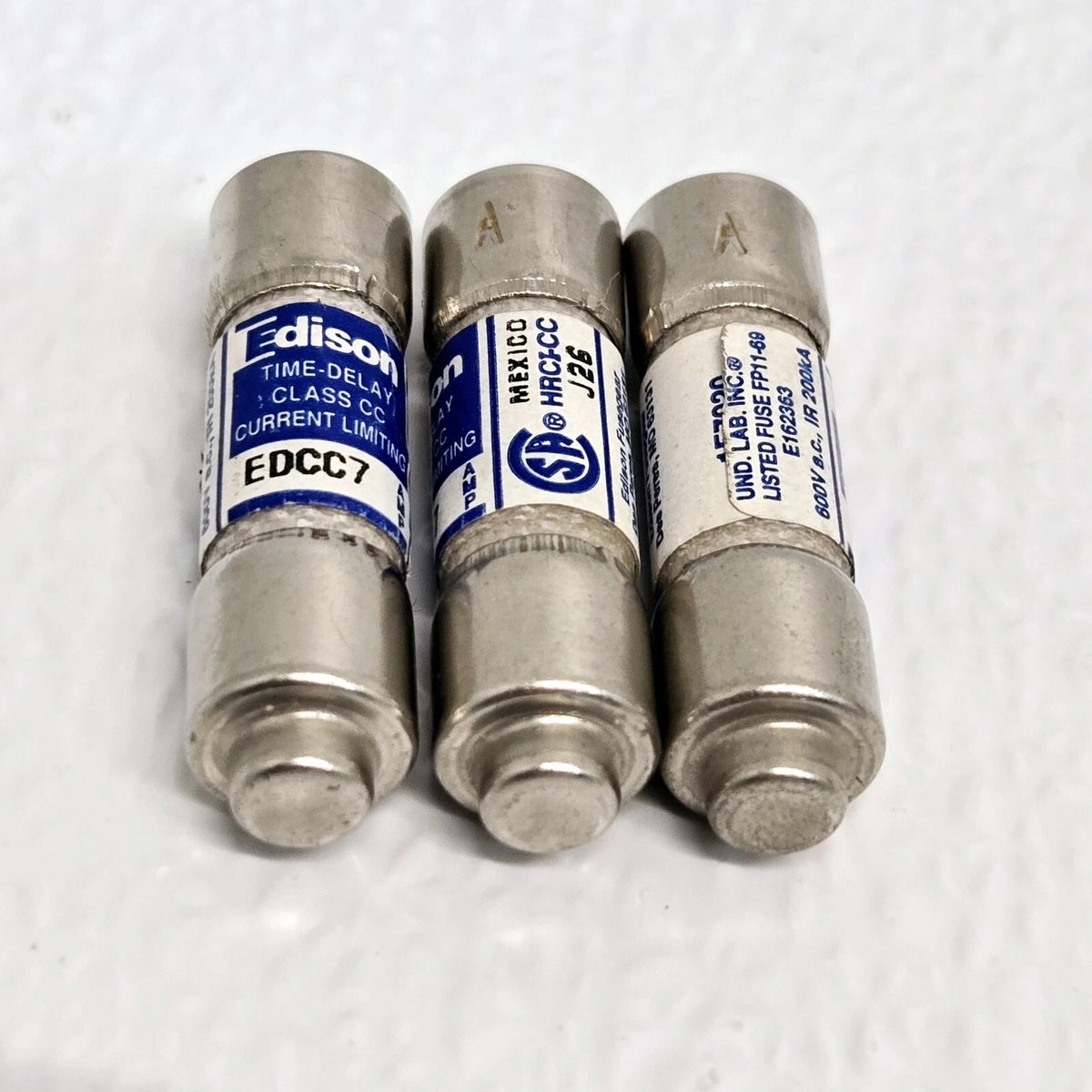

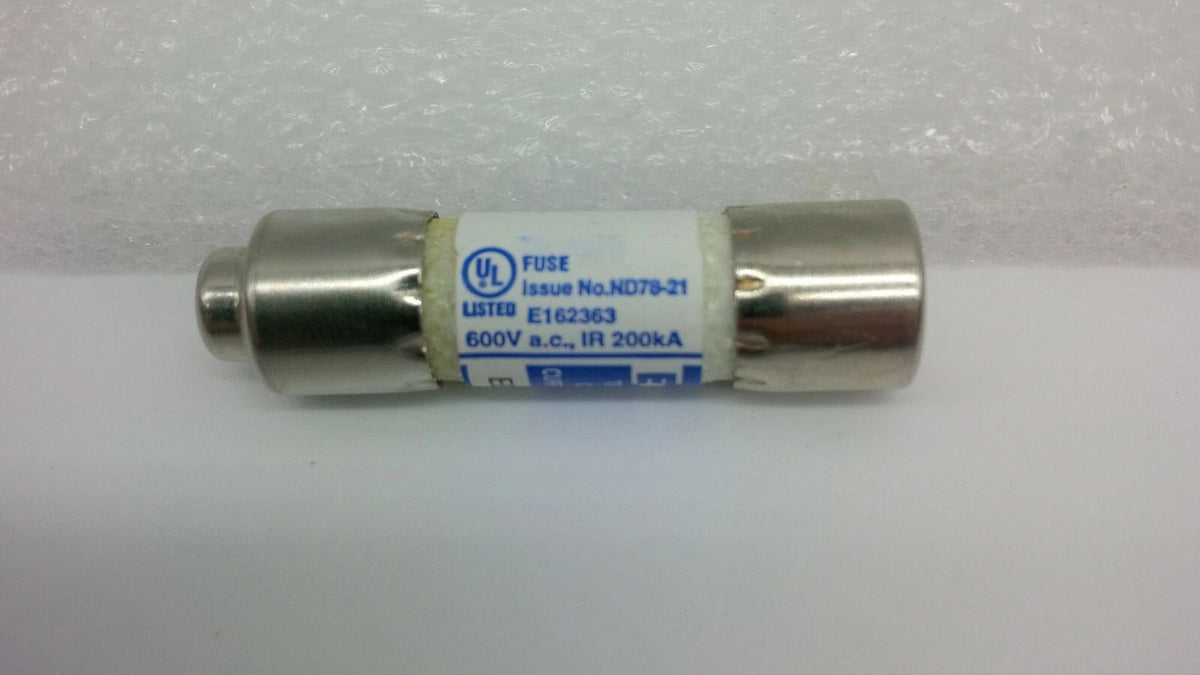

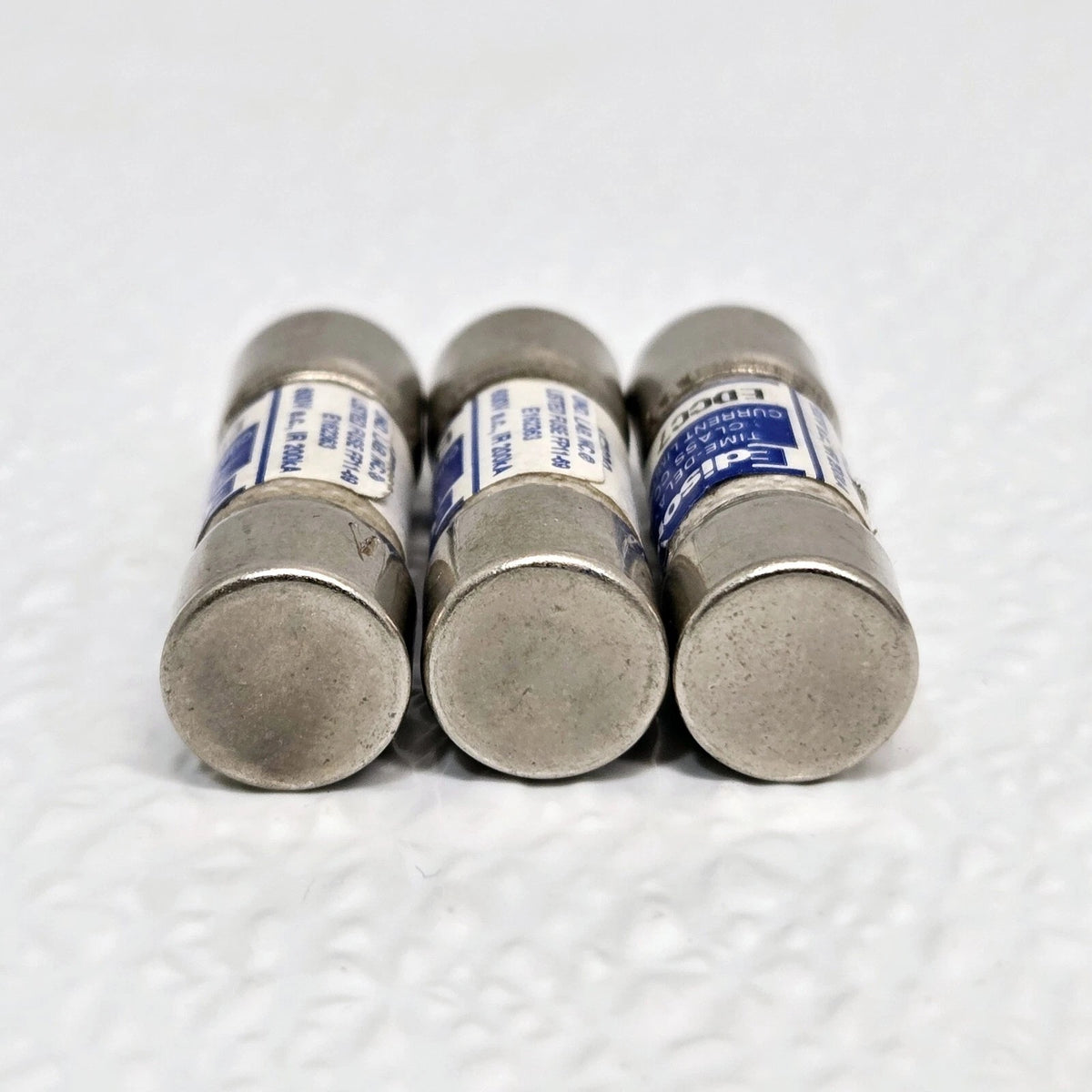

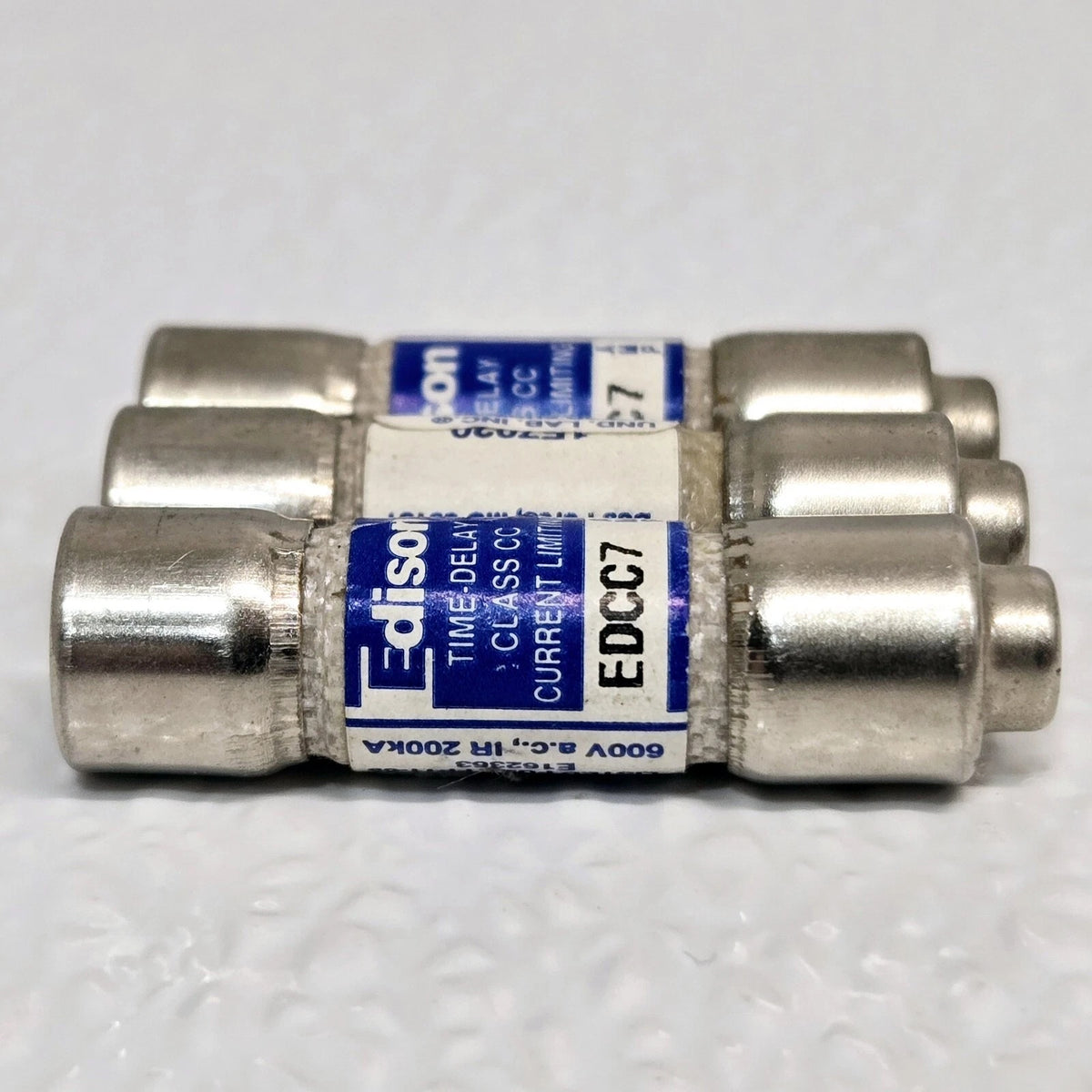

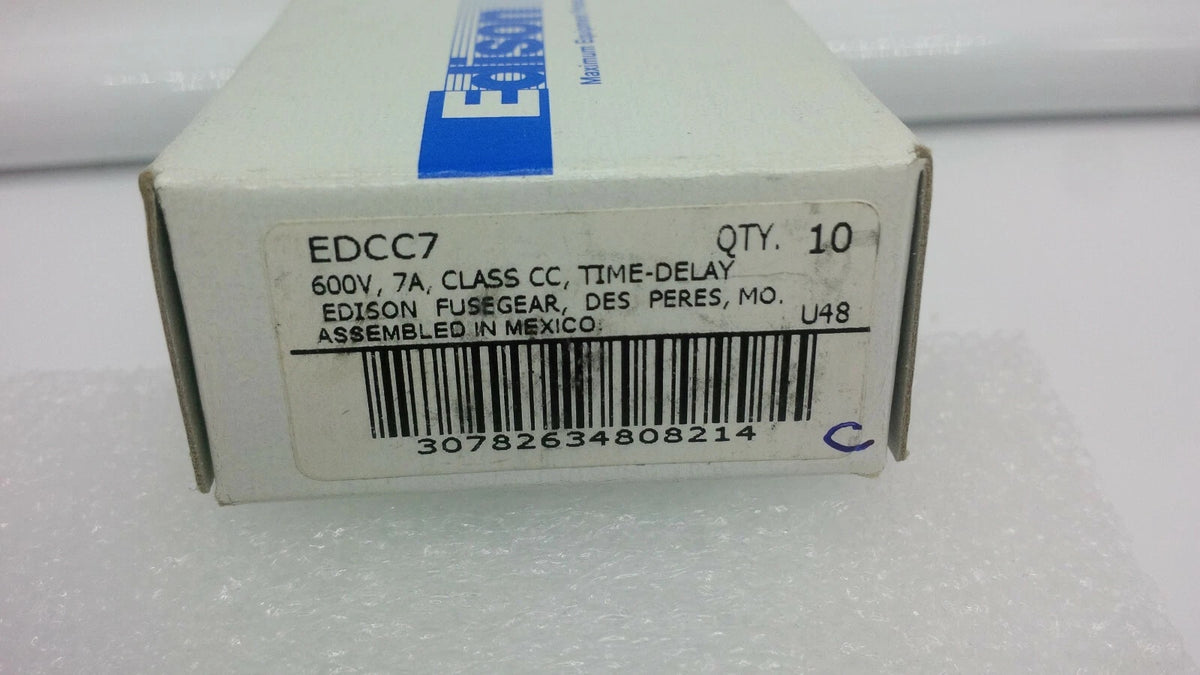

Bussmann EDCC-7 Class CC Time-Delay Fuse 7A 600VAC/300VDC
Available in stock (2000)
Regular price
$8.53
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Bussmann |
| Model Number | EDCC-7 |
| Product Category | Class CC Time-Delay Fuse |
| Voltage Rating | 600VAC / 300VDC |
| Current Rating | 7A |
| Interrupting Rating | 200kA RMS Sym. AC / 100kA DC |
| Agency Approvals | UL Listed, CSA Certified, CE |
| Fuse Class | Class CC |
| Time Delay | Yes |
| Body Material | Fiberglass |
Key Features
7A Current Rating
This fuse is rated for 7A, providing reliable overcurrent protection for branch circuits and equipment.
600VAC / 300VDC
Rated for 600VAC and 300VDC systems, suitable for a wide range of industrial control applications.
High Interrupting Capacity
Features a 200kA interrupting rating at 600VAC and 100kA at 300VDC, providing robust fault current protection.
Fiberglass Body
The fiberglass body construction ensures durability and high mechanical strength in demanding industrial environments.
Agency Approvals
UL Listed, CSA Certified, and CE marked, meeting recognized standards for safety and performance.
Applications
- Branch circuit protection in industrial control panels
- Motor branch circuit protection
- Transformer primary protection
- General-purpose industrial equipment protection
- Control power transformer protection
- Lighting and power distribution systems
- Maintenance and replacement programs for existing Class CC fuse holders
Purchase Information
We support online purchase of the Bussmann EDCC-7 Class CC Time-Delay Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Bussmann EDCC-7?
Bussmann EDCC-7 is a Class CC time-delay fuse rated 7A with a voltage rating of 600VAC and 300VDC.
What voltage is Bussmann EDCC-7 rated for?
Bussmann EDCC-7 is rated for 600VAC and 300VDC operation.
What is the interrupting rating of EDCC-7?
The EDCC-7 has an interrupting rating of 200kA RMS symmetrical AC and 100kA DC.
Is EDCC-7 a time-delay fuse?
Yes, Bussmann EDCC-7 is a time-delay fuse, suitable for applications with inrush currents such as motors and transformers.
What class is Bussmann EDCC-7?
The EDCC-7 is a Class CC fuse, designed to fit Class CC fuse holders and blocks.
Is EDCC-7 UL listed?
Yes, Bussmann EDCC-7 is UL Listed, CSA Certified, and CE marked.
What should be checked before ordering EDCC-7?
Verify the complete catalog number EDCC-7, voltage and current requirements of the circuit, compatibility with the existing fuse holder or block, and applicable agency requirements for your installation.
Can EDCC-7 be used for motor protection?
The time-delay characteristic of the EDCC-7 is designed to accommodate motor starting currents and transformer inrush, making it suitable for these applications.
What is the body material of EDCC-7?
Bussmann EDCC-7 features a fiberglass body for mechanical strength and durability.
