3A Current Rating
The EDCC-3 catalog rating is 3 A for Class CC branch-circuit protection.

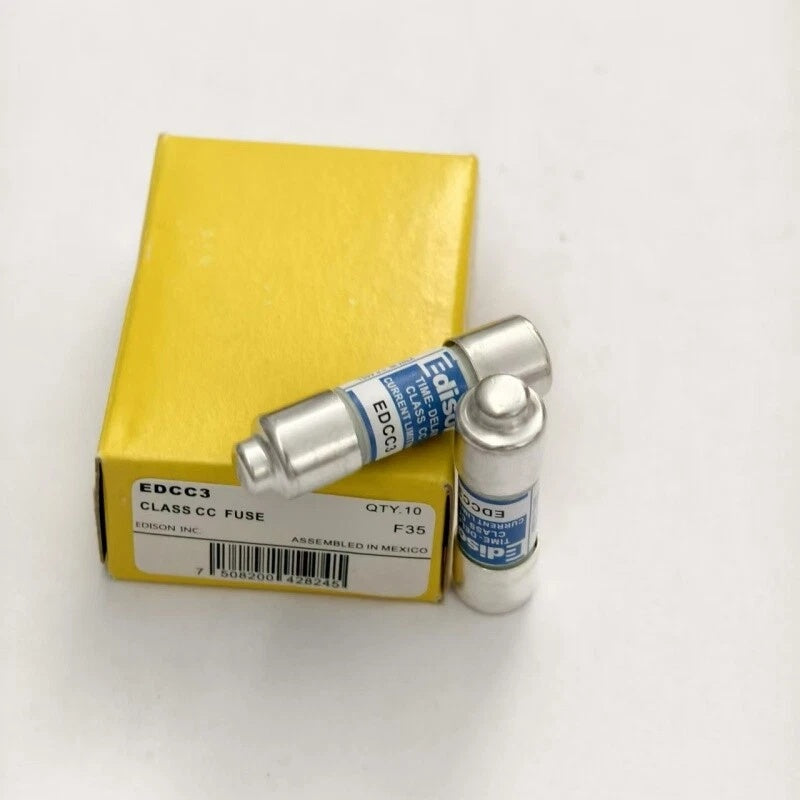

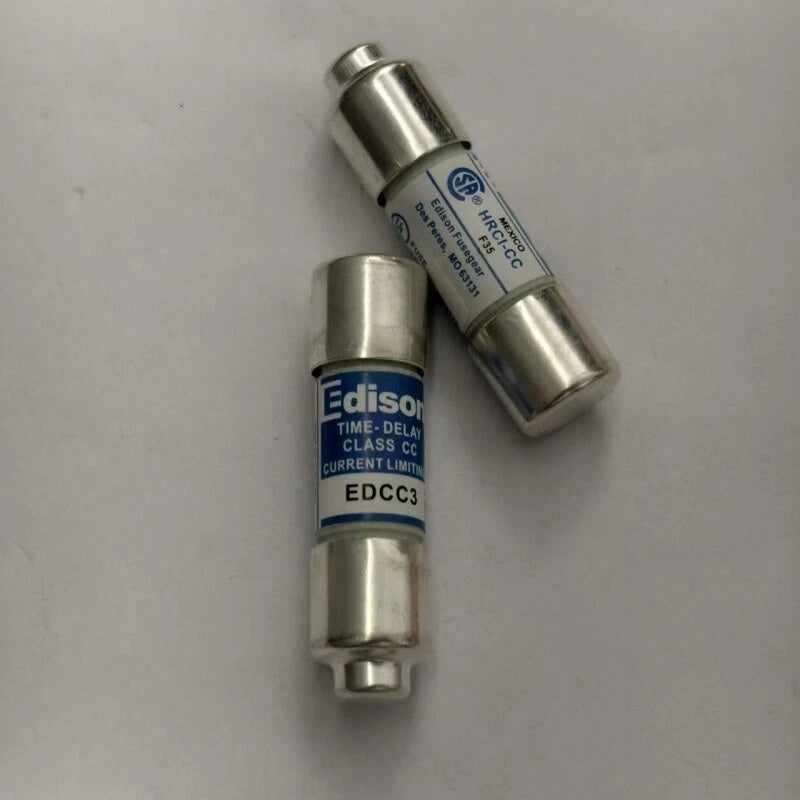

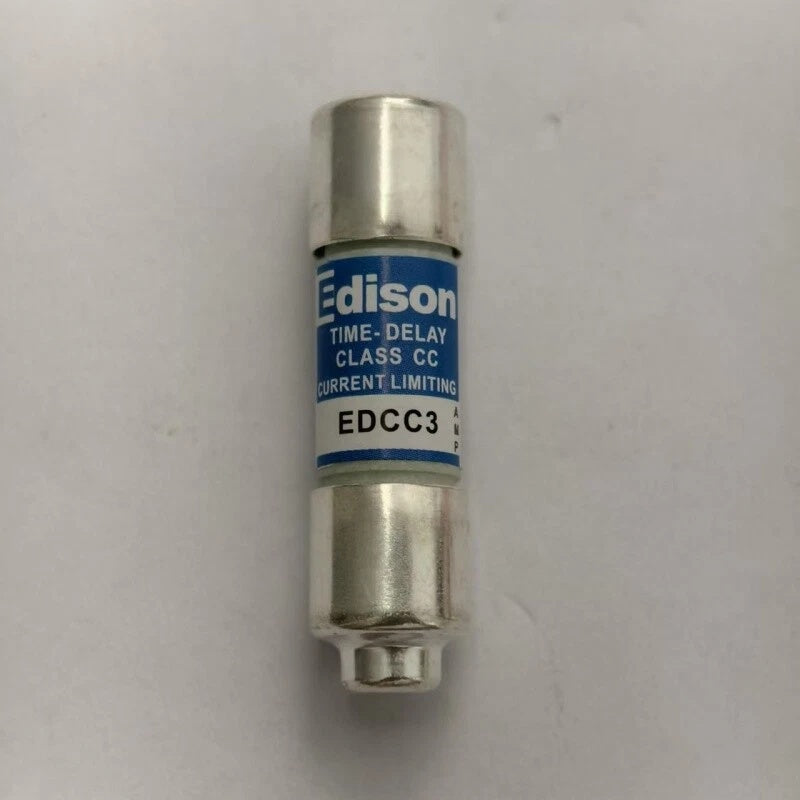

Bussmann EDCC-3 Class CC Time-Delay Fuse 3A 600VAC 150VDC
Available in stock (2000)
Regular price
$8.53
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Bussmann |
| Model Number | EDCC-3 |
| Product Category | Class CC Time-Delay Fuse |
| Fuse Class | Class CC |
| Fuse Type | Current-Limiting, Time-Delay |
| Current Rating | 3 A |
| AC Voltage Rating | 600 VAC |
| DC Voltage Rating | 150 VDC |
| AC Interrupting Rating | 200 kA RMS Sym. |
| DC Interrupting Rating | 20 kA |
| Dimensions | 1.5 × 0.41 in (38.1 × 10.3 mm) |
| Agency Information | UL Listed; CSA Certified |
Key Features
600VAC Rating
The EDCC series is rated for operation at 600 VAC or less.
Time-Delay Operation
Time-delay characteristics help accommodate temporary surge currents in applicable circuits.
Current-Limiting Design
The EDCC series is a Class CC current-limiting fuse with fast response under short-circuit conditions.
200kA AC Interrupting Rating
Published EDCC specifications list a 200 kA RMS symmetrical AC interrupting rating.
Compact Class CC Size
Published dimensions are 1.5 × 0.41 in (38.1 × 10.3 mm).
Applications
- Small horsepower motor circuit protection
- Motor branch circuit protection
- Branch circuit overcurrent protection
- Circuits requiring time-delay fuses
- Industrial control circuit protection
- NEMA motor controller protection applications
- IEC motor controller protection applications
- Compact Class CC fuse applications
Purchase Information
We support online purchase of the Bussmann EDCC-3 Class CC Time-Delay Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Bussmann EDCC-3?
Bussmann EDCC-3 is a 3 A Class CC current-limiting, time-delay fuse in the EDCC series.
What is the current rating of EDCC-3?
The EDCC-3 current rating is 3 A.
What AC voltage rating does EDCC-3 use?
The EDCC series is rated at 600 VAC or less.
What DC voltage rating applies to EDCC-3?
For the 3 A EDCC rating, published manufacturer data specifies 150 VDC.
What is the AC interrupting rating?
Published EDCC specifications list a 200 kA RMS symmetrical AC interrupting rating.
What is the DC interrupting rating?
Published EDCC specifications list a 20 kA DC interrupting rating.
What are the dimensions of EDCC-3?
Published EDCC dimensions are 1.5 × 0.41 in (38.1 × 10.3 mm).
Is EDCC-3 a time-delay fuse?
Yes. The EDCC series is specified as Class CC, current-limiting and time-delay.
What applications can EDCC-3 be considered for?
The EDCC series is intended for small horsepower motor circuits and other circuits requiring compact time-delay fuses.
What should be checked before ordering EDCC-3?
Check the complete model number, 3 A current requirement, voltage requirements, interrupting-rating requirements and Class CC fuse requirements against the circuit documentation.
Can EDCC-3 be considered for an existing installation?
It can be considered after the complete model number and the electrical, mechanical and installation requirements have been checked against the existing system.
