15A Ampere Rating
The EDCC-15 is rated for 15 amperes for overcurrent protection applications.

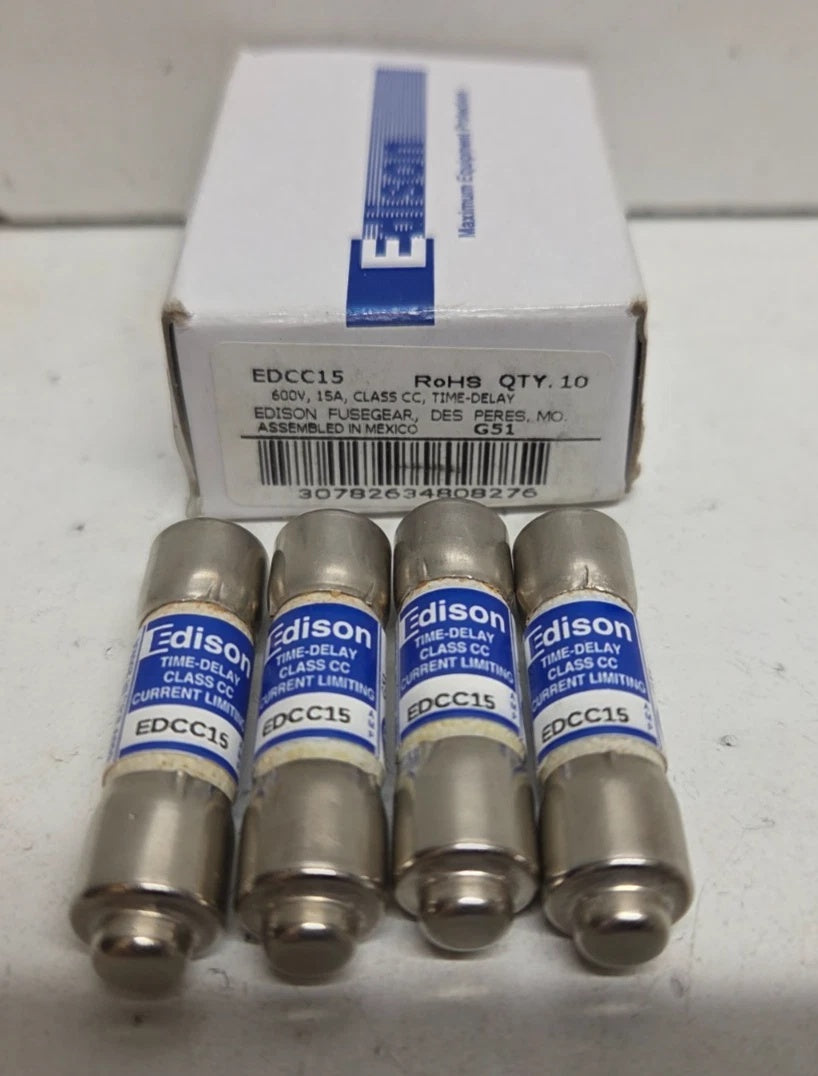

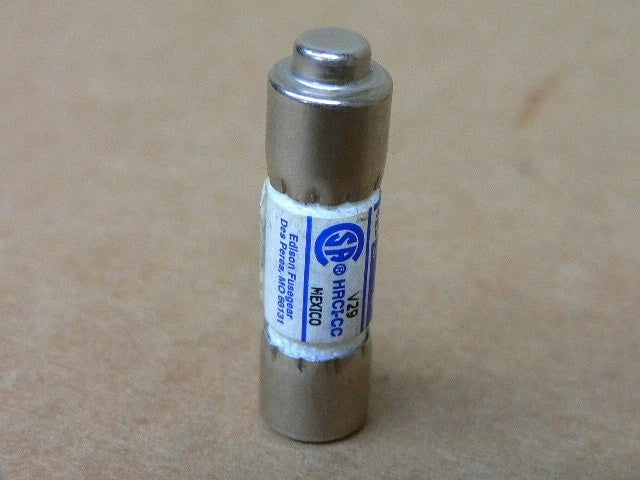

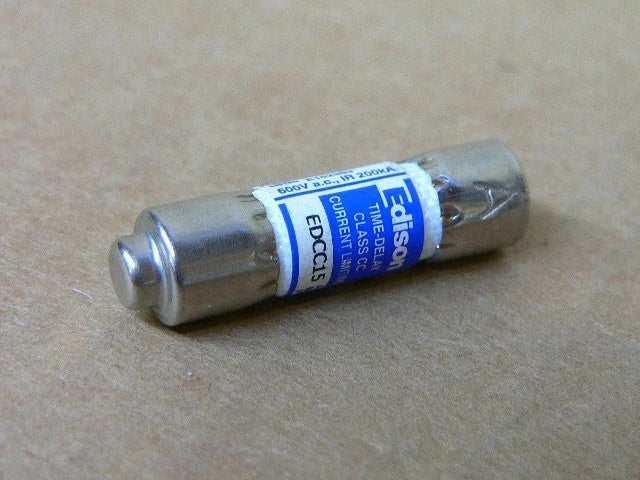

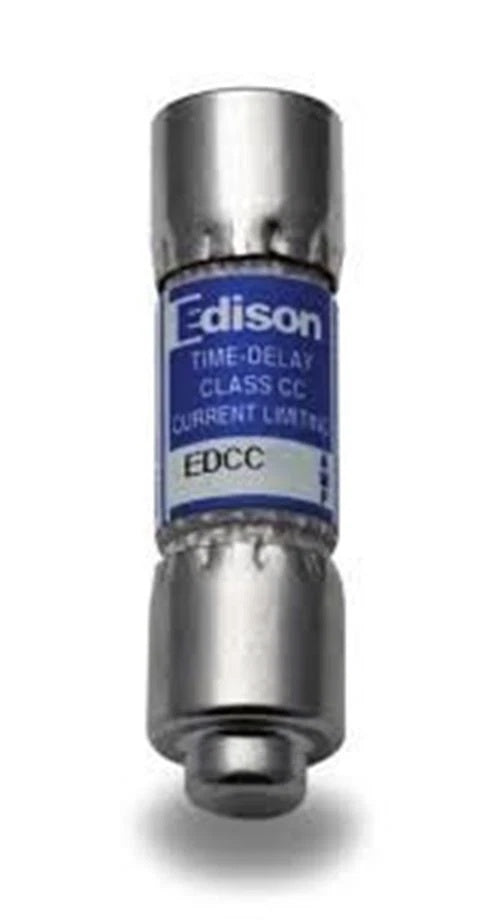

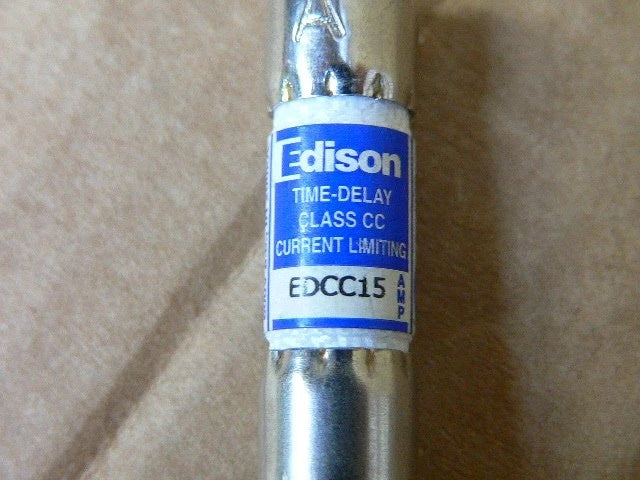

Bussmann EDCC-15 Class CC Time-Delay Fuse 15A 600VAC/300VDC
Available in stock (2000)
Regular price
$8.53
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Bussmann |
| Model Number | EDCC-15 |
| Product Category | Class CC Time-Delay Fuse |
| Ampere Rating | 15 A |
| Voltage Rating AC | 600 VAC |
| Voltage Rating DC | 300 VDC |
| Interrupting Rating | 200 kA RMS Sym. |
| Fuse Class | Class CC |
| Time Delay | Time-Delay |
Key Features
600VAC / 300VDC
Rated for 600 VAC and 300 VDC systems, suitable for industrial power circuits.
Class CC
Class CC fuse with 200 kA interrupting rating, providing high short-circuit current protection.
Time-Delay
Time-delay characteristic accommodates temporary inrush currents in motor and transformer applications.
Compact Size
The EDCC-15 is a Class CC fuse designed for branch circuit protection with space-efficient dimensions.
Applications
- Branch circuit overcurrent protection
- Motor control panel protection
- Transformer primary protection
- Industrial control circuit protection
- Lighting panel feeder protection
- Control transformer protection
- Industrial power distribution
Purchase Information
We support online purchase of the Bussmann EDCC-15 Class CC Time-Delay Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Bussmann EDCC-15?
Bussmann EDCC-15 is a Class CC time-delay fuse rated for 15 amperes and 600 VAC / 300 VDC.
What is the interrupting rating of EDCC-15?
Bussmann documentation specifies an interrupting rating of 200 kA RMS symmetrical for this fuse.
What voltage ratings does EDCC-15 support?
The EDCC-15 is rated for 600 VAC and 300 VDC applications.
Is EDCC-15 a time-delay fuse?
Yes. The EDCC-15 is a time-delay fuse with Class CC characteristics.
What is the ampere rating of EDCC-15?
The EDCC-15 is rated for 15 amperes.
What applications can EDCC-15 be used for?
Typical applications include branch circuit protection, motor control panels, transformers, and general industrial power distribution.
What should be checked before ordering EDCC-15?
Verify the required ampere rating, AC/DC voltage rating, interrupting capacity, Class CC fuse holder compatibility, and applicable NEC or local code requirements before ordering.
Can EDCC-15 be considered for motor circuit protection?
It can be considered for motor branch circuit protection after the motor full-load current, starting characteristics, and applicable code requirements have been verified.
What should be verified before installing EDCC-15?
Fuse class, ampere rating, voltage rating, and holder type should be checked against the existing installation and system requirements.
