Eaton Bussmann

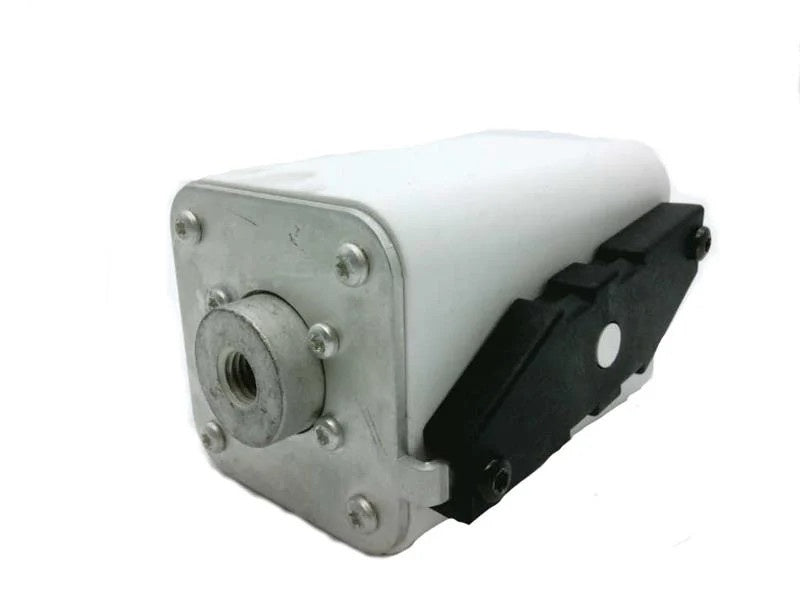

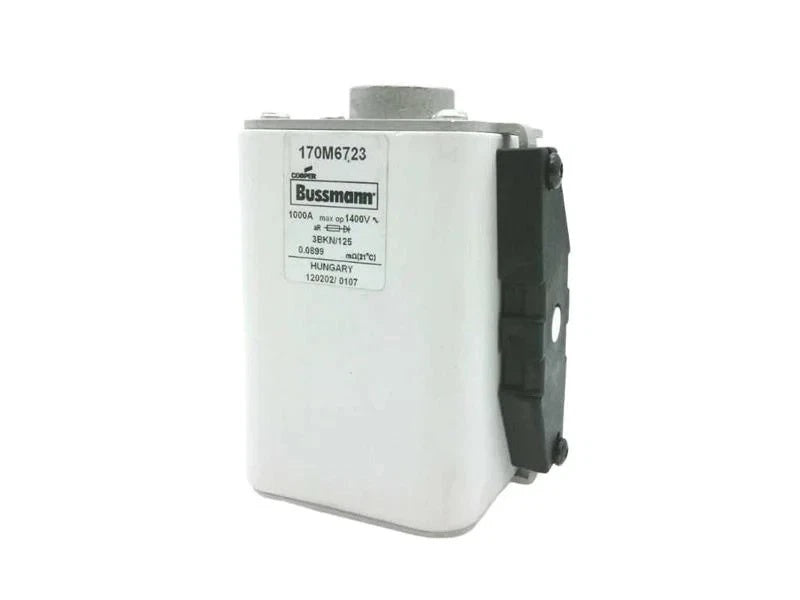

Bussmann 170M6723 Fuse

PRODUCT PRICE USD

$300.95

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	170M6723
Product Category	Fuse
Fuse Type	High Speed Square Body Fuse
Rated Current	900 A
Rated Voltage AC	690 V
Breaking Capacity	200 kA
Utilization Category	aR (IEC)
Fuse Size	3
Visual Indicator	Type K Indicator
Mounting Style	Bolt Down
Termination Type	Stud
Body Style	Square Body Blade Fuse

Key Features

900 A Rated Current

The fuse is rated for 900 A continuous current, suitable for high-current industrial circuit protection.

690 V AC Rated Voltage

Designed for AC applications up to 690 V, compatible with common industrial supply voltages.

200 kA Breaking Capacity

Provides a high interrupting rating of 200 kA for reliable fault current limitation.

aR Utilization Category

Classified as aR for semiconductor and high-speed protection applications according to IEC standards.

Type K Visual Indicator

Equipped with a Type K visual indicator for blown-fuse identification.

Square Body Construction

Square body blade fuse design with bolt-down stud termination for secure mounting.

Applications

Semiconductor protection in industrial drives
AC motor drive input protection
Uninterruptible power supply (UPS) circuits
Rectifier and inverter protection
High-power industrial control panels
Power conversion equipment
Fault current limitation in distribution systems
Renewable energy power electronics

Purchase Information

We support online purchase of the Bussmann 170M6723 Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann 170M6723? The Bussmann 170M6723 is a high-speed square body fuse from the 170M series, rated 900 A at 690 V AC.

What is the rated current of the 170M6723? The rated current is 900 A.

What is the rated voltage of the 170M6723? The rated AC voltage is 690 V.

What is the breaking capacity? The breaking capacity is 200 kA.

What utilization category does the 170M6723 belong to? It is classified as aR according to IEC standards for semiconductor protection.

Does the 170M6723 have a visual indicator? Yes, it features a Type K visual indicator.

What is the fuse size? The fuse size is 3.

How is the 170M6723 mounted? It uses bolt-down stud mounting with square body blade terminals.

What applications is the 170M6723 suitable for? It is used for semiconductor protection, AC drives, UPS systems, rectifiers, and other high-power industrial circuits requiring high-speed fault limitation.

What should be checked before ordering? Verify the system voltage, continuous current, breaking capacity requirement, fuse size, mounting configuration, and applicable standards before ordering.
