Bussmann 170M6560 Fuse

PRODUCT PRICE USD

$107.68

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

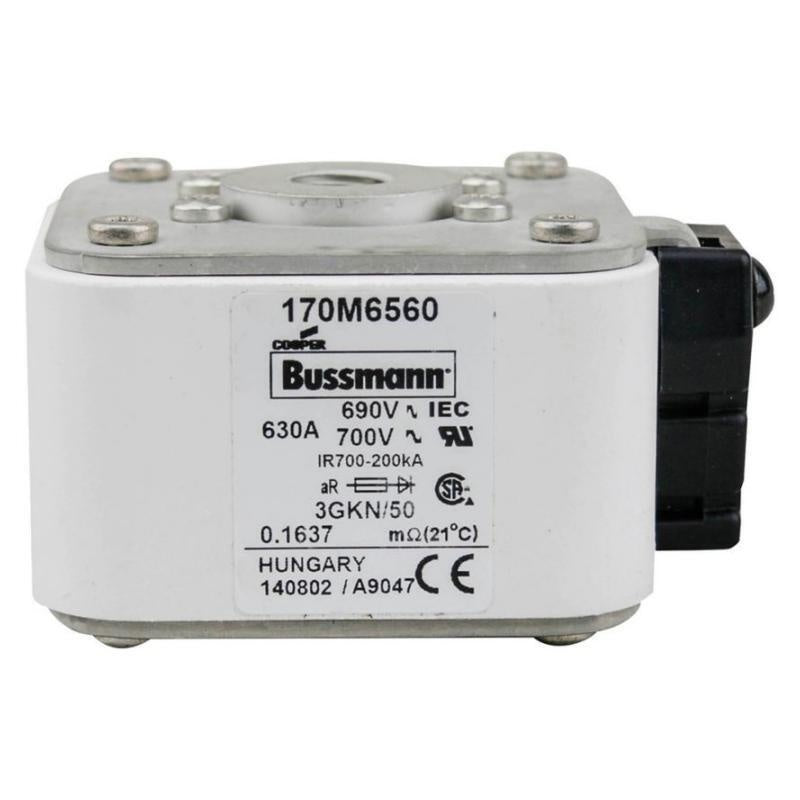

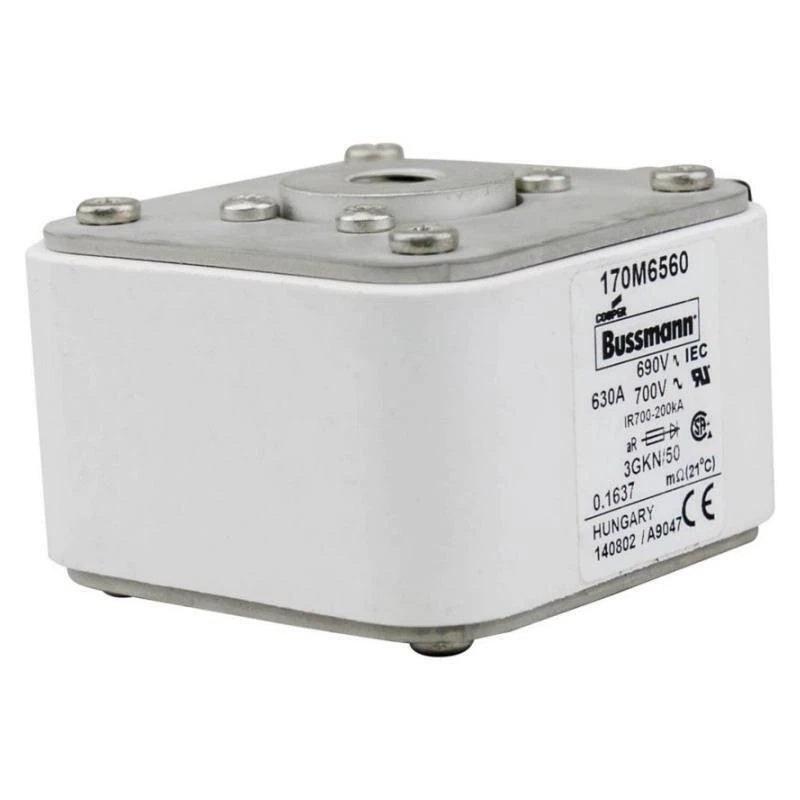

Brand	Bussmann
Model Number	170M6560
Product Category	High Speed Square Body Fuse
Rated Voltage AC	690 V (IEC), 700 V (UL)
Rated Current	630 A
Utilization Category	aR (Semiconductor Protection)
Fuse Size	Size 3
Breaking Capacity	200 kA
Clearing (I2t)	210,000 at 660 V
Pre-Arc (I2t)	31,000
Power Loss	105 W
Fuse Shape	Square Body, Flush End Contacts
Fuse Indicator	Single Fuse Status Indicator
Fuse Type	Screw Thread Hole GKN / Type K Indicator for Micro
Product Dimensions	76 mm x 92 mm x 53 mm
Product Weight	275.33 g
Certifications	IEC Rated, UL Recognized, CE Marked, RoHS Compliant

Key Features

Size 3 High-Speed Fuse

Size 3 square body fuse link rated for 630 A and 690 V AC (IEC) / 700 V (UL).

aR Semiconductor Protection

Classified under utilization category aR for accompanied semiconductor protection.

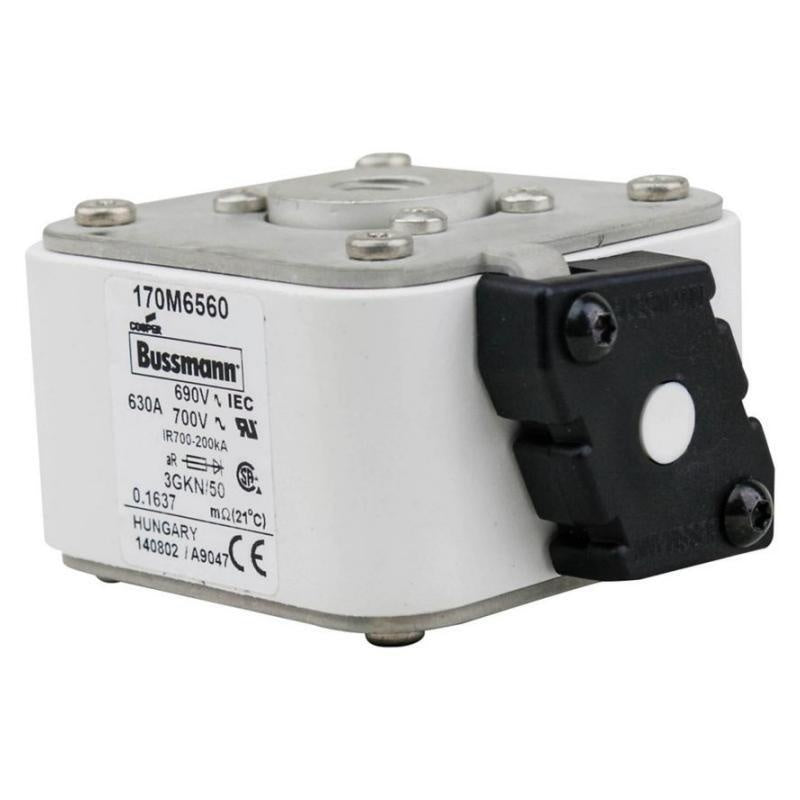

Single Fuse Status Indicator

Fitted with a single fuse status indicator for status monitoring.

200 kA Breaking Capacity

Published breaking capacity of 200 kA for high fault current applications.

Defined I2t Values

Clearing I2t of 210,000 at 660 V and pre-arc I2t of 31,000 for circuit coordination.

Screw Thread Hole Design

Features a screw thread hole GKN configuration with a Type K indicator for micro applications.

Applications

Semiconductor protection
DC common bus
DC drives
Power converters
Rectifiers
Industrial power systems requiring high-speed current limitation

Purchase Information

We support online purchase of the Bussmann 170M6560 High Speed Square Body Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann 170M6560? The Bussmann 170M6560 is a size 3 high-speed square body fuse link rated for 630 A and 690 V AC (IEC) / 700 V (UL).

What is the fuse size of 170M6560? It is a size 3 fuse.

What is the breaking capacity of 170M6560? The breaking capacity is 200 kA.

What utilization category does 170M6560 belong to? It belongs to utilization category aR for accompanied semiconductor protection.

Does 170M6560 have a fuse indicator? Yes, it is fitted with a single fuse status indicator (Type K for micro).

What are the dimensions of 170M6560? The product dimensions are 76 mm x 92 mm x 53 mm.

What certifications does 170M6560 carry? It is IEC Rated, UL Recognized, CE Marked, and RoHS Compliant.

What applications is 170M6560 intended for? It is intended for semiconductor, DC common bus, DC drives, and power converters/rectifiers.
