Eaton Bussmann

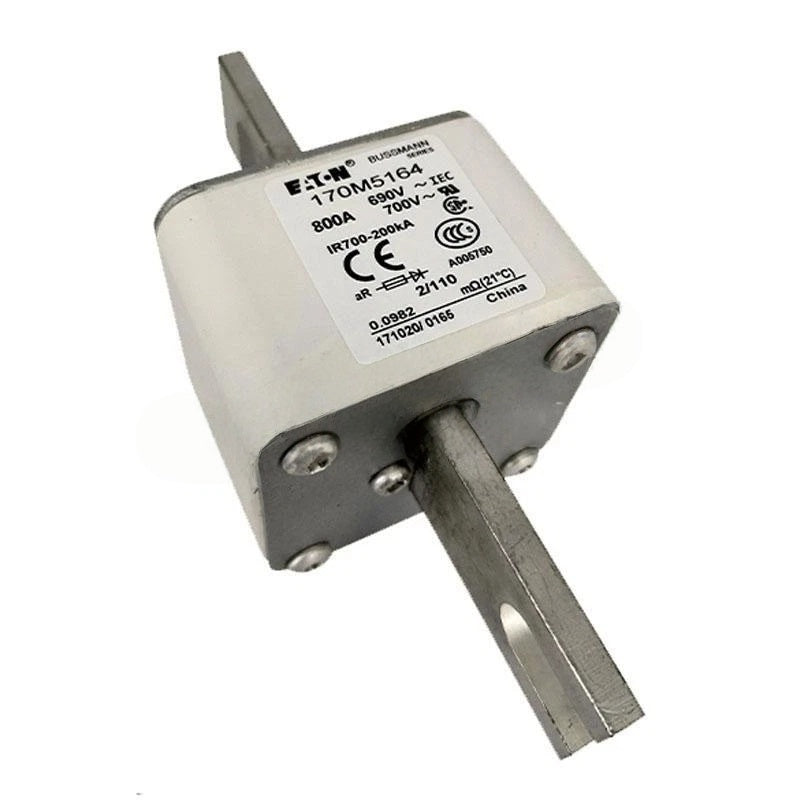

Bussmann 170M5164 Fuse

PRODUCT PRICE USD

$117.68

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	170M5164
Product Category	Fuse
Fuse Type	High Speed Square Body Fuse
Rated Current	800 A
Rated Voltage AC	690 V (IEC) / 700 V (UL)
Breaking Capacity	200 kA RMS Sym.
Fuse Size	2
Standard	DIN 43 653
Mounting Style	Screw
Termination Type	Threaded Socket

Key Features

800 A Rated Current

Rated for 800 A continuous current according to manufacturer specifications.

690 V AC (IEC) / 700 V AC (UL)

Dual voltage rating suitable for both IEC and UL applications.

200 kA RMS Symmetrical Breaking Capacity

High interrupting rating for robust short-circuit protection.

Fuse Size 2

Size 2 square body construction for standard industrial mounting.

DIN 43 653 Standard

Manufactured to DIN 43 653 dimensions and performance requirements.

Screw and Threaded Socket Termination

Secure screw mounting with threaded socket terminals for reliable connection.

Applications

Semiconductor protection in industrial drives
UPS and rectifier circuits
Power conversion systems
Motor control and drive panels
Fault current limitation in distribution boards
DC link and busbar protection
Renewable energy inverters
Heavy industrial power supplies

Purchase Information

We support online purchase of the Bussmann 170M5164 Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann 170M5164? The Bussmann 170M5164 is a high-speed square body fuse rated 800 A at 690 V AC (IEC) / 700 V AC (UL).

What is the rated current of the 170M5164? The rated current is 800 A.

What is the rated voltage? The rated voltage is 690 V AC per IEC and 700 V AC per UL.

What is the breaking capacity? The breaking capacity is 200 kA RMS symmetrical.

What is the fuse size? The fuse size is 2.

What standard does the 170M5164 follow? It is manufactured to DIN 43 653.

How is the 170M5164 mounted? It uses screw mounting with threaded socket terminals.

What applications is the 170M5164 suitable for? It is used for semiconductor protection in drives, UPS systems, rectifiers, and other industrial circuits requiring 800 A high-speed protection.

What should be verified before ordering? Check the required current, system voltage, breaking capacity, fuse size, DIN standard compatibility, and mounting arrangement.
