Eaton Bussmann

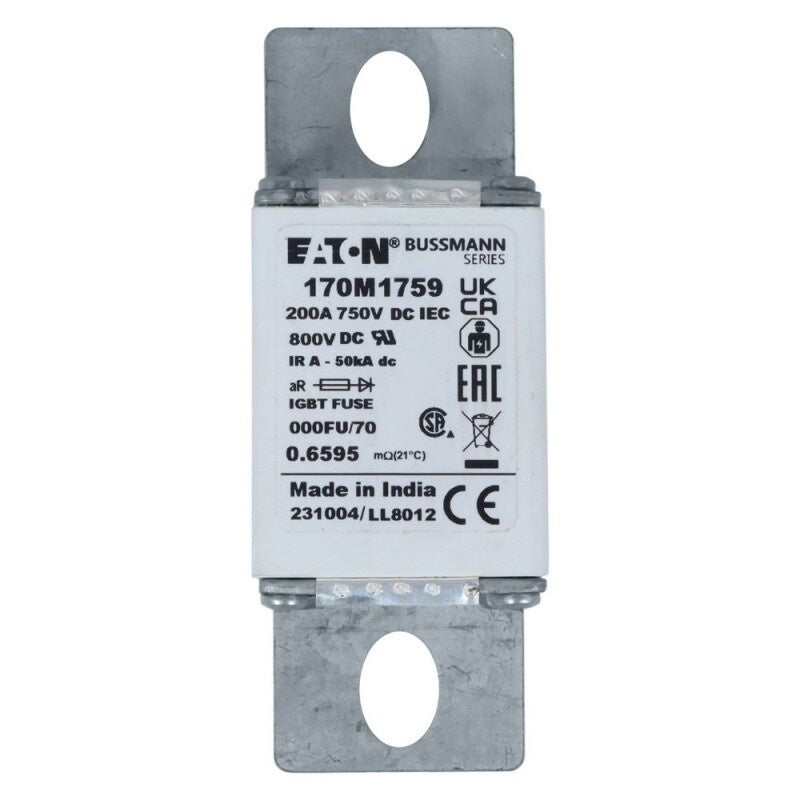

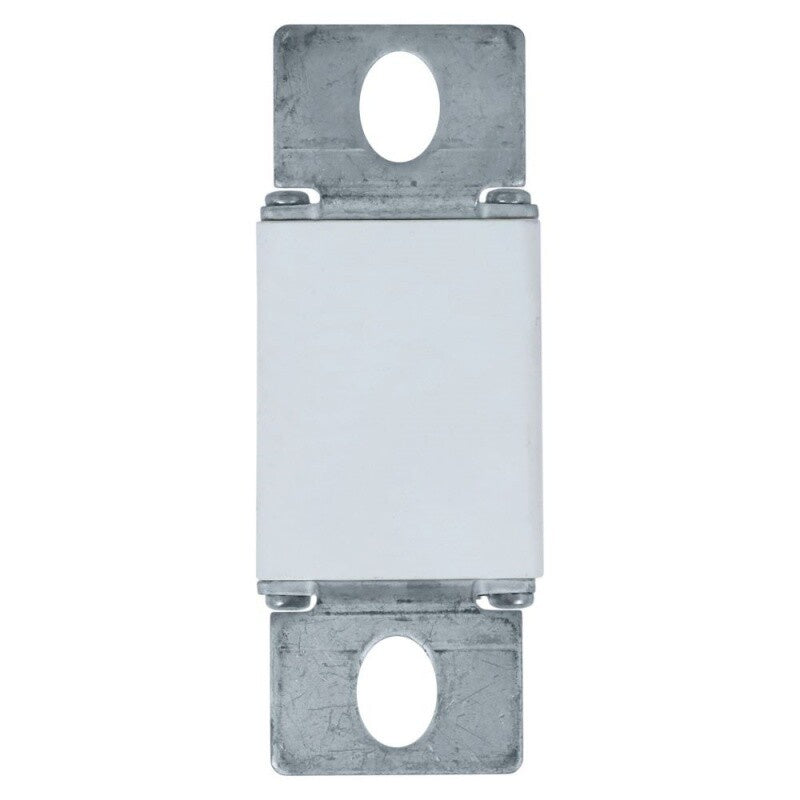

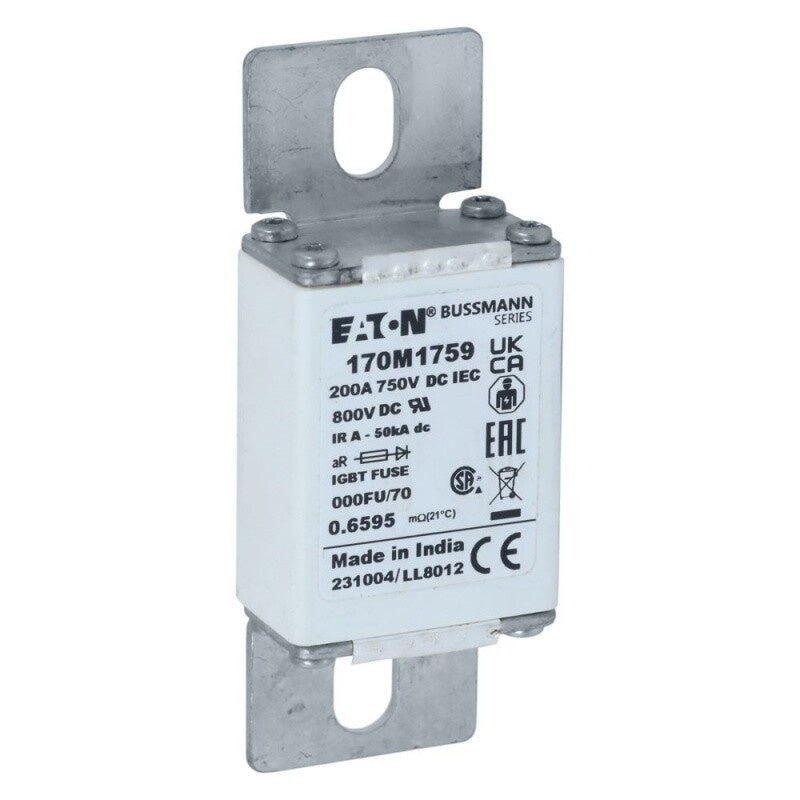

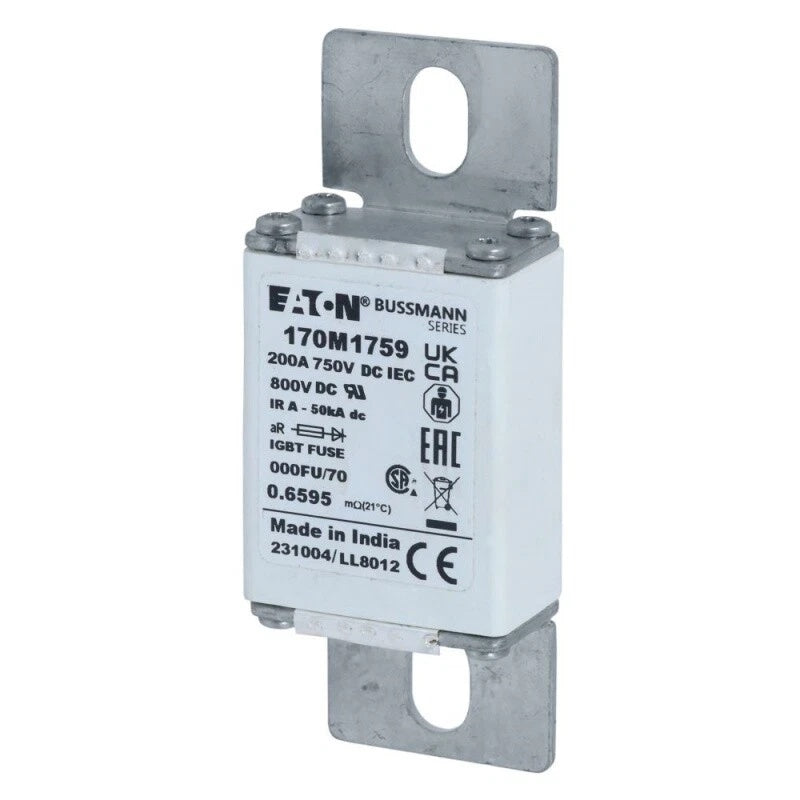

Bussmann 170M1759 Fuse

PRODUCT PRICE USD

$59.90

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	170M1759
Product Category	Fuse
Fuse Type	High Speed Square Body Fuse
Rated Current	400 A
Rated Voltage AC	690 V
Breaking Capacity	200 kA
Mounting Style	Stud
Termination Type	Bolt Down
Body Style	Square Body

Key Features

400 A Rated Current

Rated for 400 A continuous current in high-speed fuse applications.

690 V AC Rated Voltage

Suitable for AC circuits up to 690 V.

200 kA Breaking Capacity

High interrupting rating for effective fault current limitation.

High-Speed Protection

Designed for semiconductor and fast-acting protection in industrial circuits.

Stud Mounting

Bolt-down stud termination for secure electrical and mechanical connection.

Square Body Construction

Square body blade fuse design for industrial panel installations.

Applications

Semiconductor protection in industrial drives
UPS and rectifier circuits
Power supplies and converters
Motor control equipment
Fault current limitation in distribution systems
DC link protection in power electronics
Industrial automation power circuits
Renewable energy inverters

Purchase Information

We support online purchase of the Bussmann 170M1759 Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann 170M1759? The Bussmann 170M1759 is a high-speed square body fuse rated 400 A at 690 V AC.

What is the rated current of the 170M1759? The rated current is 400 A.

What is the rated voltage? The rated AC voltage is 690 V.

What is the breaking capacity? The breaking capacity is 200 kA.

How is the 170M1759 mounted? It uses stud mounting with bolt-down termination.

What body style does it have? It has a square body construction.

What applications is the 170M1759 suited for? It is used for semiconductor protection, UPS systems, rectifiers, and other industrial circuits requiring high-speed 400 A protection.

What should be verified before ordering? Verify the circuit current, voltage, breaking capacity, mounting interface, and physical dimensions for the installation.
