Eaton Bussmann

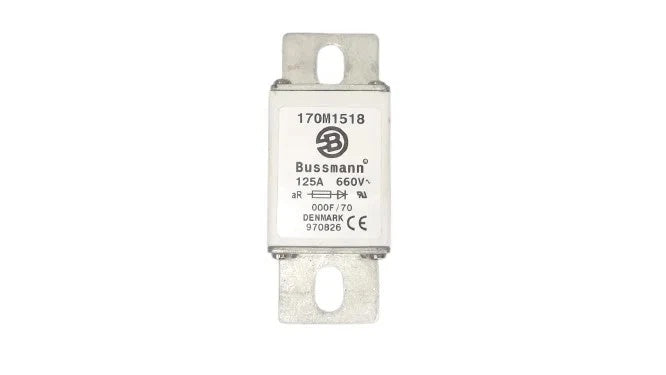

Bussmann 170M1518 Fuse

PRODUCT PRICE USD

$135.89

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	170M1518
Product Category	High Speed Fuse
Fuse Type	Square Body Blade Fuse
Voltage Rating	690 VAC (IEC) / 700 VAC (UL)
Current Rating	1000 A
Breaking Capacity	200 kA RMS Sym.
Body Style	Square Body
Indicator System	Dual Indicator
Standards	IEC 60269 Part 4; UL Recognized

Key Features

1000A Current Rating

Rated for 1000A continuous current in high-speed fuse applications.

690VAC Voltage Rating

Designed for 690VAC (IEC) and 700VAC (UL) circuits.

High Speed Protection

Fast-acting square body fuse for semiconductor and DC bus protection.

200kA Breaking Capacity

High interrupting rating for robust short-circuit protection.

Square Body Construction

DIN-style square body blade fuse with dual indicator system.

Applications

UPS systems
Soft starters
Variable speed drives
Rectifiers
Inverters
DC common bus
Power converters
Solid state relays

Purchase Information

We support online purchase of the Bussmann 170M1518 High Speed Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann 170M1518? It is a 1000A, 690VAC high speed square body fuse from the Bussmann 170M series.

What is the voltage rating of the 170M1518? 690 VAC (IEC) / 700 VAC (UL).

What is the current rating of the 170M1518? 1000 A.

What is the breaking capacity of the 170M1518? 200 kA RMS Sym.

What body style does the 170M1518 use? Square body blade fuse with dual indicator.

Is the 170M1518 a high speed fuse? Yes, it is designed for high speed protection of semiconductors and DC buses.

What standards does the 170M1518 meet? Designed and tested to IEC 60269 Part 4 and UL Recognized.

What applications is the 170M1518 suitable for? UPS, soft starters, variable speed drives, rectifiers, inverters, DC common bus, and power converters.

Need help confirming a model?

Send us your part number and technical requirements.

Contact Our Team

Technical Specifications

Brand	Bussmann
Model Number	170M1518
Product Category	High Speed Fuse
Fuse Type	Square Body Blade Fuse
Voltage Rating	690 VAC (IEC) / 700 VAC (UL)
Current Rating	1000 A
Breaking Capacity	200 kA RMS Sym.
Body Style	Square Body
Indicator System	Dual Indicator
Standards	IEC 60269 Part 4; UL Recognized
