Eaton Bussmann

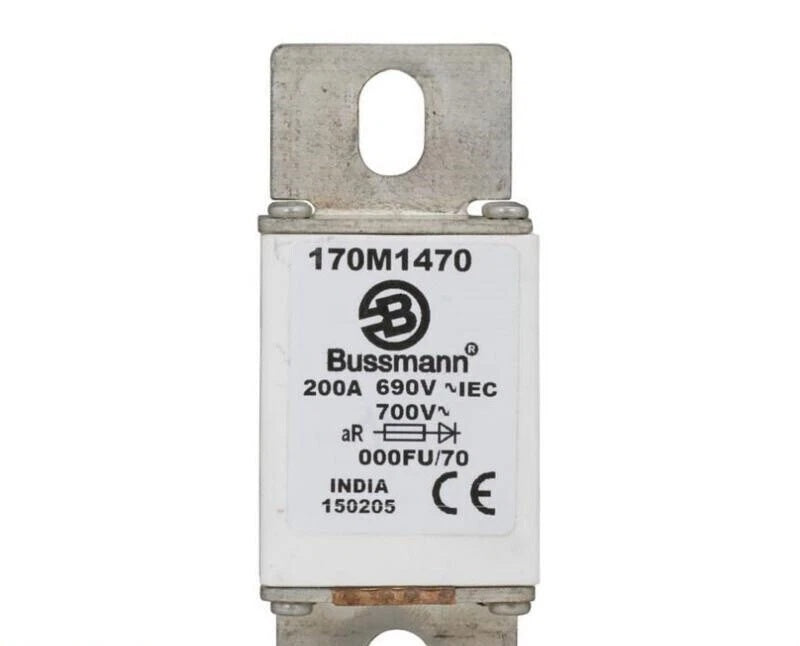

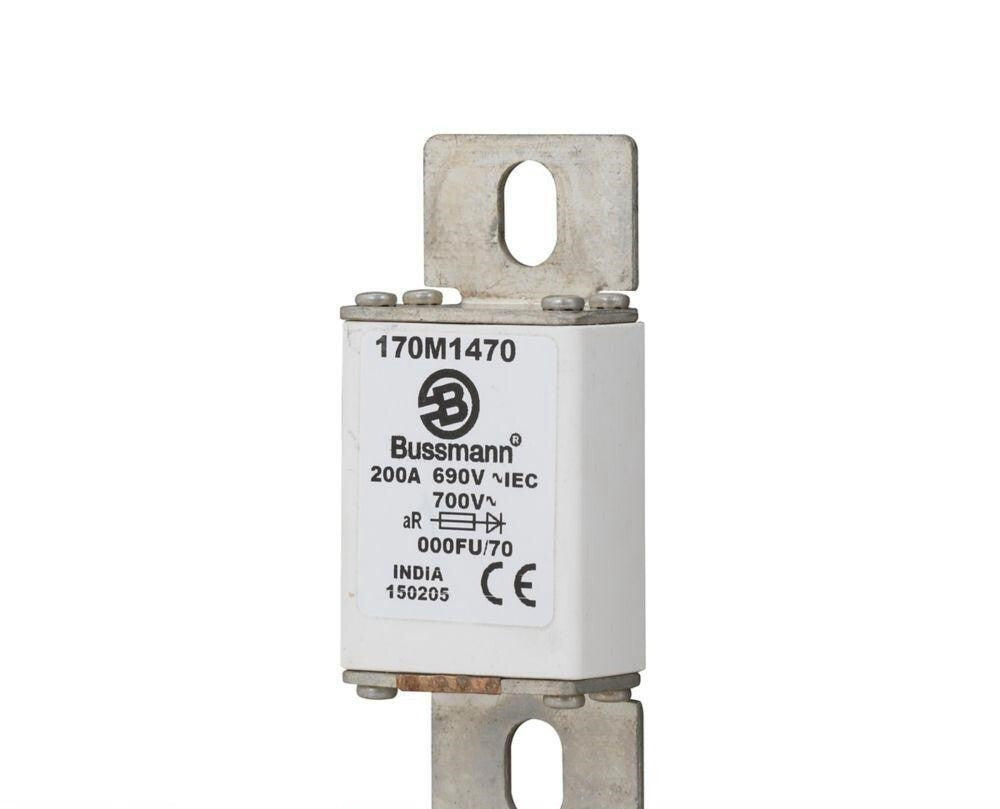

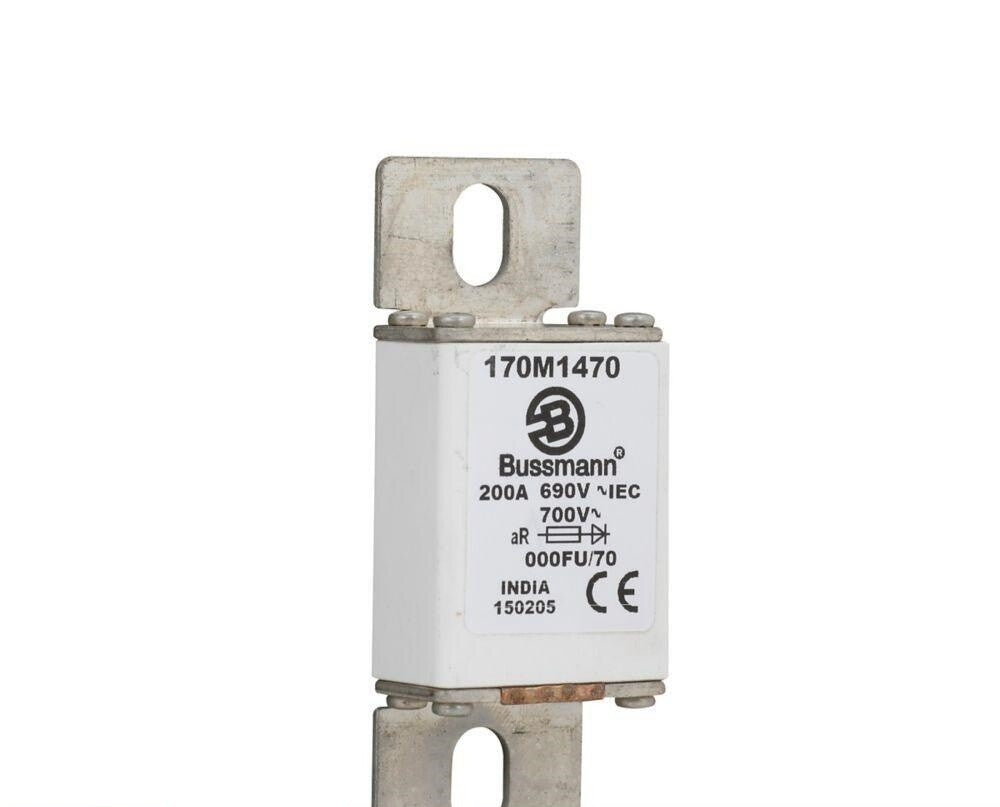

Bussmann 170M1470 Fuse

PRODUCT PRICE USD

$71.50

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	170M1470
Product Category	High Speed Square Body Fuse
Rated Voltage AC	690 VAC
Rated Current	125 A
Utilization Category	aR (Semiconductor Protection)
Fuse Shape	Square Body, Flush End Contact
Breaking Capacity	200 kA RMS Sym.

Key Features

High-Speed Semiconductor Protection

Designed as a high-speed fuse for the protection of semiconductor devices and power circuits.

aR Utilization Category

Classified under utilization category aR for accompanied semiconductor protection.

125 A Current Rating

Rated for 125 A applications within compatible 690 VAC circuits.

Square Body Design

Square body fuse link format for use in compatible holders and mounting arrangements.

200 kA Breaking Capacity

Published specifications for the 170M fuse family identify a 200 kA RMS Sym. breaking capacity.

690 VAC Rated Voltage

Suitable for industrial AC power circuits rated up to 690 VAC.

Applications

Semiconductor protection
DC common bus protection
DC drives
Power converters
Rectifier circuits
Industrial power systems requiring high-speed current limitation

Purchase Information

We support online purchase of the Bussmann 170M1470 High Speed Square Body Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann 170M1470? The Bussmann 170M1470 is a high-speed square body fuse link with a 125 A current rating and 690 VAC voltage rating.

What is the rated voltage of 170M1470? The fuse is rated for 690 VAC applications.

What is the current rating of 170M1470? The current rating is 125 A.

What utilization category does 170M1470 belong to? It belongs to utilization category aR for accompanied semiconductor protection.

What is the breaking capacity of 170M1470? Published specifications identify a 200 kA RMS Sym. breaking capacity for the 170M fuse family.

What is the fuse shape of 170M1470? The fuse has a square body with flush end contacts.

What applications is 170M1470 intended for? It is intended for semiconductor protection, DC common bus, DC drives, power converters, and rectifier circuits.
