Eaton Bussmann

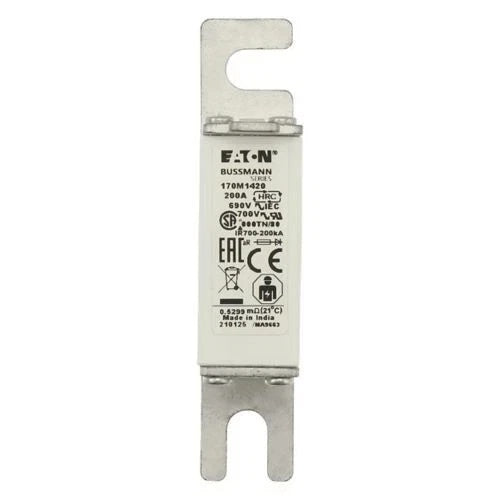

Bussmann 170M1420 Fuse

PRODUCT PRICE USD

$41.48

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	170M1420
Product Category	High-Speed Square Body Fuse
Product Series	170M
Fuse Type	DIN 43653 Square Body
Voltage Rating	690 VAC (IEC) / 700 VAC (UL)
Amperage Rating	200 A
Interrupting Rating	200 kAIC
Operating Class	aR
Fuse Size	DIN 000
Mounting Type	Bolt Down
Application	Semiconductor, DC Common Bus, DC Drives, Power Converters/Rectifiers

Key Features

High-Speed Square Body Design

Compact DIN 43653 fuse construction for space-efficient panel mounting.

200 kAIC Interrupting Rating

High fault current protection for industrial power electronics.

aR Class Semiconductor Fuse

Specifically characterized for protecting diodes, thyristors, and other solid-state devices.

690 VAC / 700 VAC

Dual-rated for IEC and UL systems up to 700 VAC.

Bolt-Down Terminals

Secure bolt-down mounting for reliable electrical contact in high-vibration environments.

DC Bus and Drive Protection

Suitable for DC common bus, DC drive, and rectifier circuits.

Applications

Semiconductor protection in variable frequency drives
DC common bus fusing
DC drive circuits
Rectifier bridges
Power converters
Reduced voltage starters
Industrial UPS systems
DC power distribution panels

Purchase Information

We support online purchase of the Bussmann 170M1420 High-Speed Square Body Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann 170M1420? It is a high-speed square body fuse from the 170M series for semiconductor protection.

What is the voltage rating? 690 VAC (IEC) and 700 VAC (UL).

What is the amperage rating of the 170M1420? The catalog number is specified at 200 A.

What is the interrupting rating? 200 kAIC.

What is the operating class? Class aR.

What fuse size is used? DIN 000.

How is the fuse mounted? Bolt-down mounting.

What applications is it designed for? DC drives, rectifiers, power converters, and common bus protection.

Does it protect semiconductors? Yes, it is a semiconductor protection fuse.

What should be checked before ordering? Verify voltage, current, fault level, fuse size, and mounting details against the system requirements.
