Eaton Bussmann

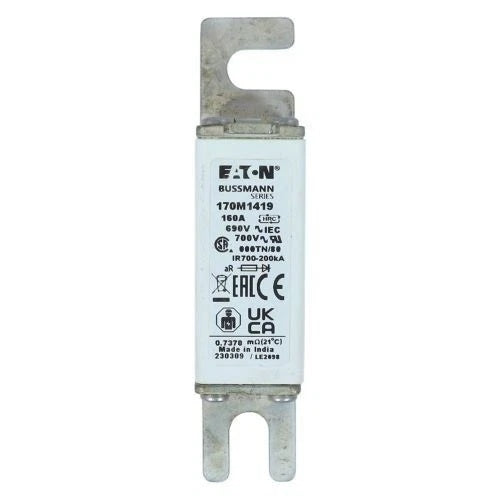

Bussmann 170M1419 Fuse

PRODUCT PRICE USD

$40.98

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	170M1419
Product Category	High-Speed Square Body Fuse
Product Series	170M
Fuse Type	DIN 43653 Square Body
Voltage Rating	690 VAC (IEC) / 700 VAC (UL)
Amperage Rating	160 A
Interrupting Rating	200 kAIC
Operating Class	aR
Fuse Size	DIN 000
Mounting Type	Bolt Down
Application	Semiconductor, DC Common Bus, DC Drives, Power Converters/Rectifiers

Key Features

High-Speed Fault Protection

Fast clearing characteristics for protection of power semiconductors and DC bus circuits.

200 kAIC Interrupting Rating

Robust fault current capability for industrial power systems.

aR Operating Class

Dedicated semiconductor fuse class for rectifier and converter protection.

DIN 43653 Square Body

Standard square body format with bolt-down mounting for secure electrical connections.

690 VAC / 700 VAC

Rated for IEC and UL low-voltage applications.

Power Conversion Protection

Designed for DC drives, power converters, and reduced voltage starters.

Applications

DC drive input and output protection
Semiconductor fuses for rectifiers
DC common bus systems
Power converters and inverters
Reduced voltage motor starters
Industrial power supplies
UPS and DC distribution
Electrochemical rectifier protection

Purchase Information

We support online purchase of the Bussmann 170M1419 High-Speed Square Body Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann 170M1419? It is a 170M series high-speed square body fuse for semiconductor protection.

What is the voltage rating of the 170M1419? 690 VAC (IEC) / 700 VAC (UL).

What amperage is the 170M1419 rated for? The manufacturer specification for this catalog number is 160 A.

What is the interrupting capacity? 200 kAIC.

What class is this fuse? Class aR.

What is the fuse size? DIN 000.

What mounting style does it use? Bolt-down square body mounting.

What are typical applications? DC drives, rectifiers, power converters, and common bus protection.

Does it provide semiconductor protection? Yes, it is specifically intended for semiconductor and power conversion equipment protection.

What should be confirmed before ordering? Verify the system voltage, continuous current, fault level, fuse size, and mounting compatibility.
