Eaton Bussmann

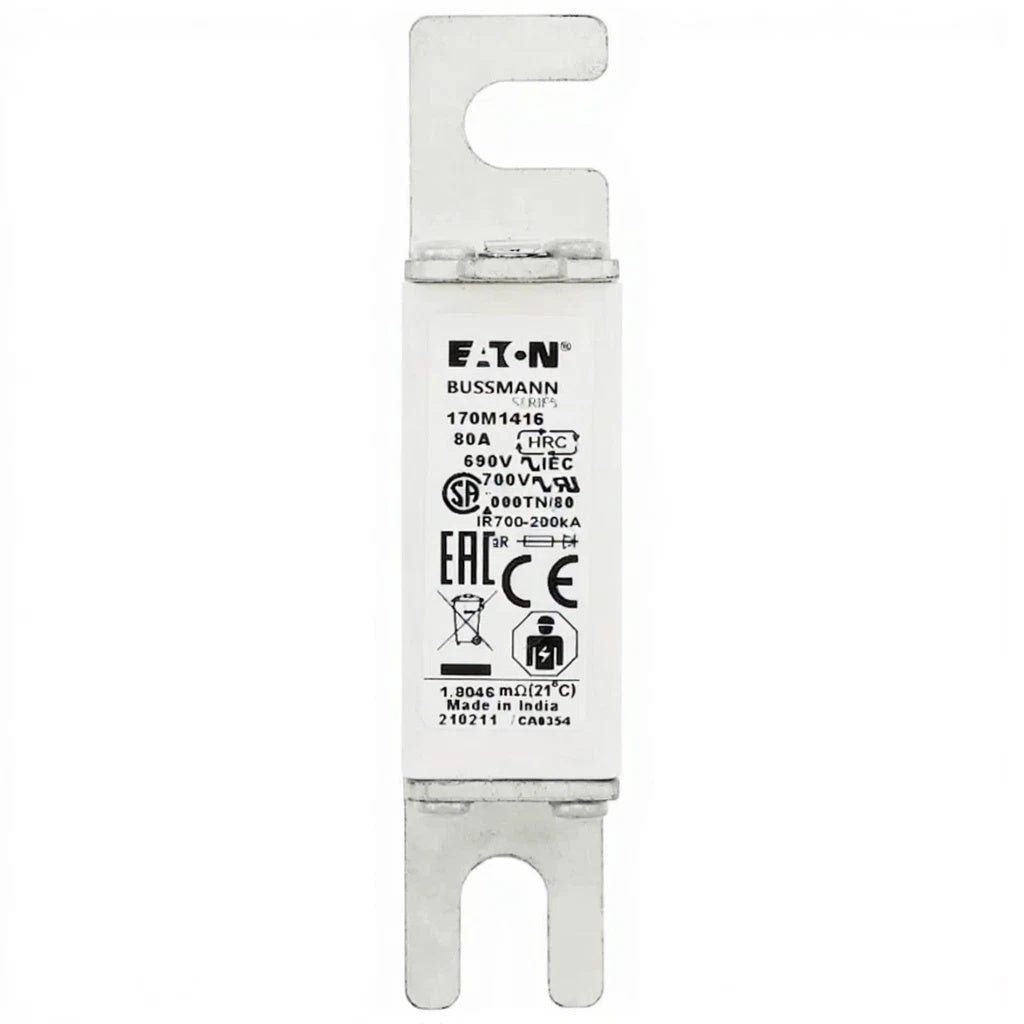

Bussmann 170M1416 Fuse

PRODUCT PRICE USD

$41.65

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	170M1416
Product Category	High-Speed Square Body Fuse
Product Series	170M
Fuse Type	DIN 43653 Square Body
Voltage Rating	690 VAC (IEC) / 700 VAC (UL)
Amperage Rating	80 A
Interrupting Rating	200 kAIC
Operating Class	aR
Fuse Size	DIN 000
Mounting Type	Bolt Down
Indicator Type	Type T Indicator for Micro
Application	Semiconductor, DC Common Bus, DC Drives, Power Converters/Rectifiers

Key Features

High-Speed Semiconductor Protection

Designed for the protection of power semiconductors in DC common bus, DC drive, and power converter circuits.

200 kA Interrupting Rating

Provides a high interrupting capacity of 200 kAIC for demanding industrial fault current conditions.

aR Operating Class

Class aR high-speed fuse characteristic for semiconductor and rectifier protection applications.

DIN 43653 Square Body

Square body construction according to DIN 43653 with bolt-down mounting for secure installation.

690 VAC / 700 VAC Rating

Rated for 690 VAC (IEC) and 700 VAC (UL) industrial power systems.

Type T Micro Indicator

Equipped with a Type T indicator for microswitch integration, supporting fuse status monitoring.

Applications

Semiconductor protection in power converters
DC common bus protection
DC drive circuits
Rectifier protection
Reduced voltage starter circuits
Industrial power conversion equipment
Variable frequency drive input protection
UPS and power supply systems

Purchase Information

We support online purchase of the Bussmann 170M1416 High-Speed Square Body Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann 170M1416? The Bussmann 170M1416 is a high-speed square body fuse from the 170M series, designed for semiconductor and DC bus protection.

What is the voltage rating of the 170M1416? It is rated for 690 VAC (IEC) and 700 VAC (UL).

What is the amperage rating of the 170M1416? The manufacturer specification lists an amperage rating of 80 A for this catalog number.

What is the interrupting rating? The 170M1416 has a 200 kAIC interrupting rating.

What operating class does this fuse use? It uses Class aR high-speed fuse characteristics.

What is the fuse size? The 170M1416 is DIN 000 size according to the DIN 43653 standard.

How is the fuse mounted? It is a bolt-down square body fuse designed for secure panel mounting.

Does this fuse have an indicator? It is equipped with a Type T indicator for microswitch operation.

What applications is the 170M1416 suitable for? It is intended for semiconductor protection, DC common bus, DC drives, power converters, and rectifiers.

What should be checked before ordering? Verify the system voltage, continuous current, fault level, fuse size, mounting arrangement, and indicator requirements against the existing installation.
