Eaton Bussmann

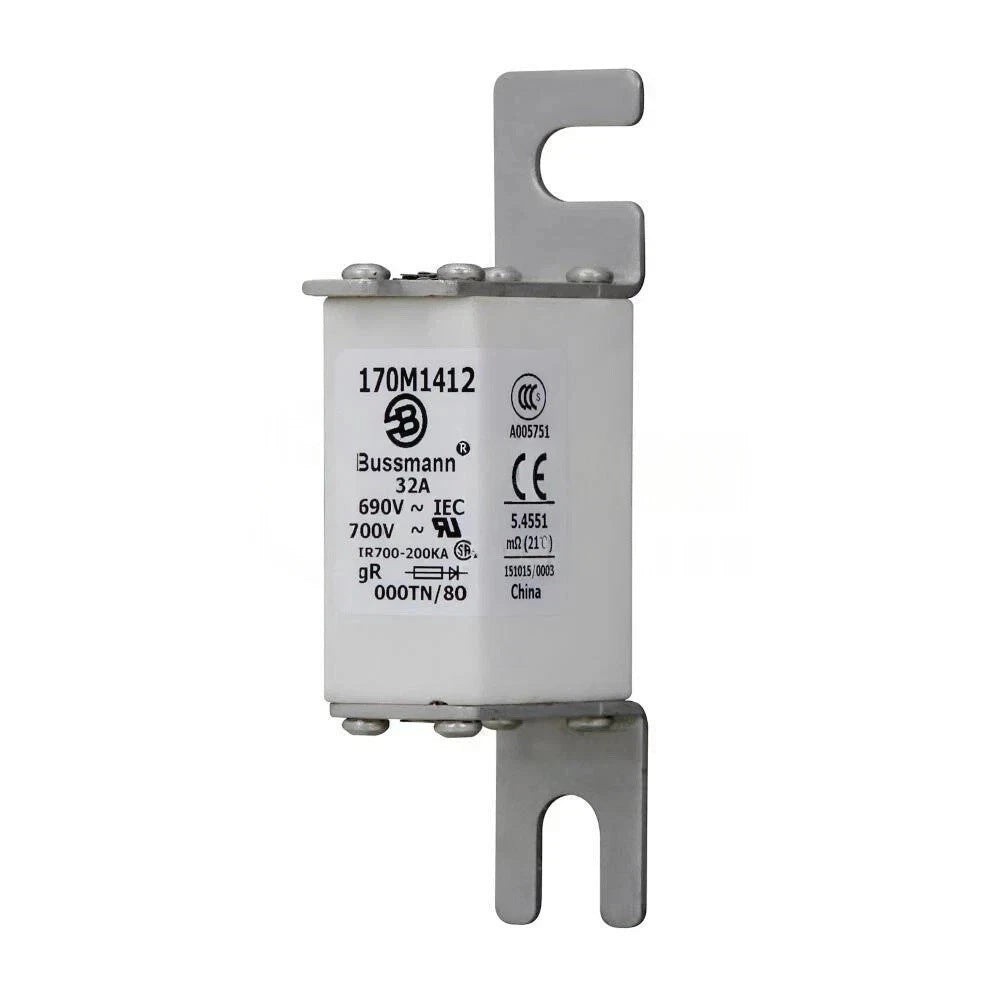

Bussmann 170M1412 Fuse

PRODUCT PRICE USD

$32.41

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	170M1412
Product Category	High Speed Square Body Fuse
Product Series	170M Series
Fuse Type	High Speed, Square Body Blade Fuse
Amperage Rating	32 A
Voltage Rating AC	690 V
Breaking Capacity	200 kA
Fuse Class	gR
Fuse Size	DIN 000
Terminal Type	Blade End
Mounting Style	Stud Mount
Dimensions	54 mm x 21 mm x 51 mm
Standards	IEC, UL

Key Features

32 A Current Rating

Published specifications identify a 32 A amperage rating for the 170M1412 fuse.

gR Full-Range Class

Class gR full-range high speed protection for semiconductor and DC circuits.

200 kA Breaking Capacity

Rated for 200 kA breaking capacity at 690 V AC.

Stud Mount Design

Square body fuse measuring 54 mm x 21 mm x 51 mm with stud mounting.

Applications

Semiconductor protection
DC bus systems
Power converters
Rectifier circuits
DC drives
Industrial power electronics

Purchase Information

We support online purchase of the Bussmann 170M1412 High Speed Square Body Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann 170M1412? The 170M1412 is a high speed square body fuse, rated 32 A at 690 V AC, Class gR.

What is the current rating? The current rating is 32 A.

What is the voltage rating? It is rated for 690 V AC.

What is the breaking capacity? The breaking capacity is 200 kA.

What is the fuse class? It is Class gR.

What are the dimensions? The fuse measures 54 mm x 21 mm x 51 mm.

What fuse size is used? It uses the DIN 000 square body size.

How is it mounted? It uses a stud mount configuration.
