Eaton Bussmann

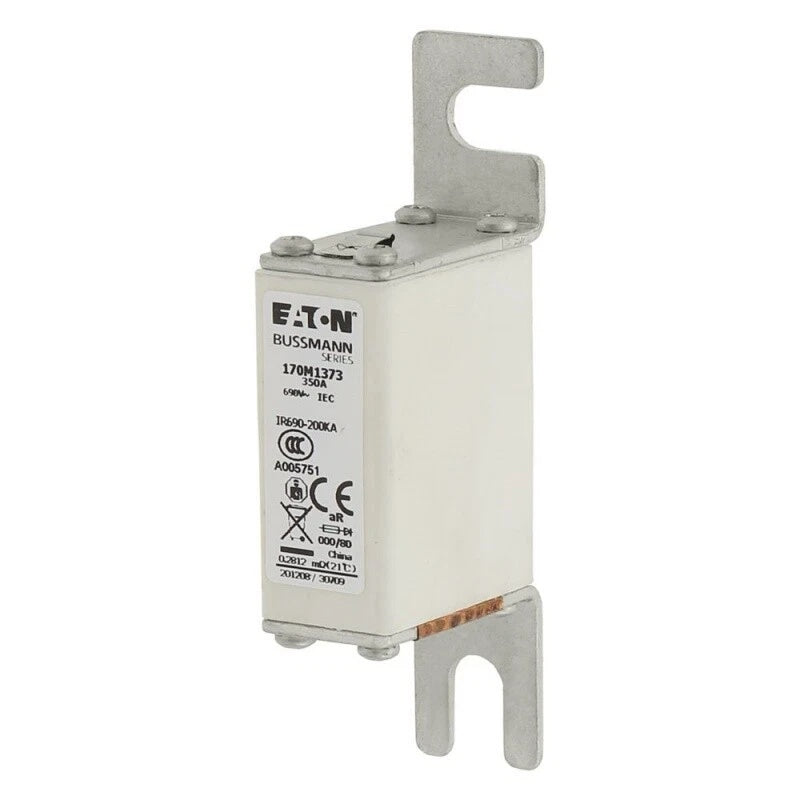

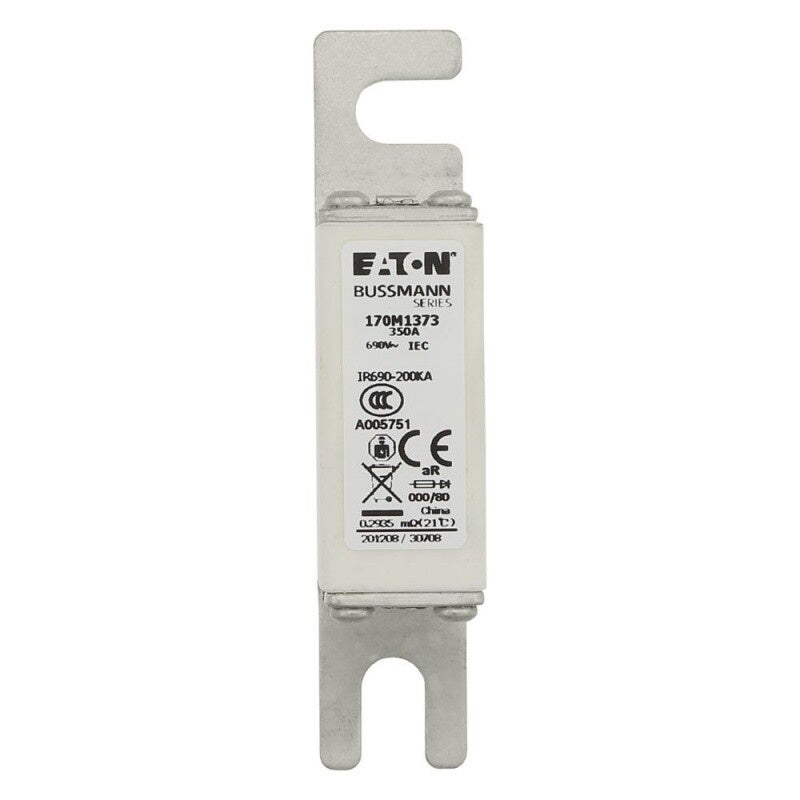

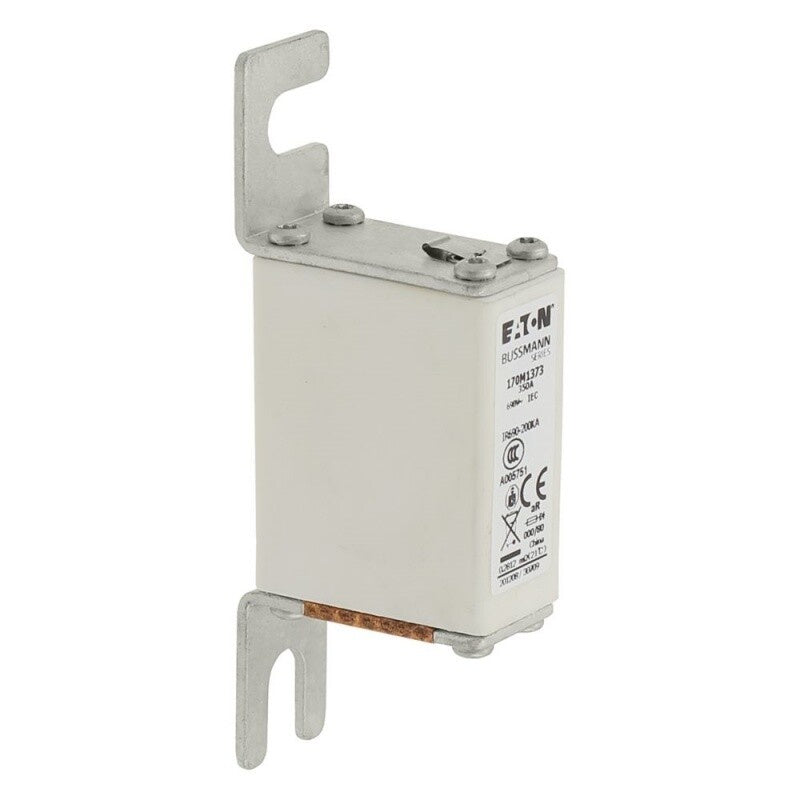

Bussmann 170M1373 Fuse

PRODUCT PRICE USD

$27.68

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	170M1373
Product Category	High Speed Square Body Fuse
Product Series	170M Series
Fuse Type	High Speed, Square Body Blade Fuse
Amperage Rating	350 A
Voltage Rating AC	690 V (IEC), 700 V (UL)
Breaking Capacity	200 kAIC
Fuse Class	gR
Fuse Size	DIN 000
Terminal Type	Blade End
Mounting Style	Bolt Down
Standards	IEC, UL Recognized

Key Features

350 A Amperage Rating

Eaton specifications identify a 350 A rating for the 170M1373 high speed square body fuse.

200 kAIC Breaking Capacity

Provides 200 kAIC interrupting capacity for high fault current protection.

gR Full-Range Class

Class gR full-range protection suitable for semiconductor and DC applications.

Top Fuse Status Indicator

Equipped with a top fuse status indicator for visual blown-fuse identification.

Applications

Semiconductor protection
DC bus systems
Power converters
Rectifiers
DC drive protection
Industrial power electronics

Purchase Information

We support online purchase of the Bussmann 170M1373 High Speed Square Body Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann 170M1373? The 170M1373 is an Eaton Bussmann series high speed square body fuse, rated 350 A at 690 V (IEC) / 700 V (UL).

What is the amperage rating? The amperage rating is 350 A.

What are the voltage ratings? It is rated for 690 V (IEC) and 700 V (UL).

What is the breaking capacity? The breaking capacity is 200 kAIC.

What is the fuse class? It is Class gR.

Does it have a status indicator? Yes, it has a top fuse status indicator.

What is the terminal configuration? It has blade end terminals for bolt-down mounting.

What standards does it meet? It is IEC rated and UL Recognized.

Need help confirming a model?

Send us your part number and technical requirements.

Contact Our Team

Technical Specifications

Brand	Bussmann
Model Number	170M1373
Product Category	High Speed Square Body Fuse
Product Series	170M Series
Fuse Type	High Speed, Square Body Blade Fuse
Amperage Rating	350 A
Voltage Rating AC	690 V (IEC), 700 V (UL)
Breaking Capacity	200 kAIC
Fuse Class	gR
Fuse Size	DIN 000
Terminal Type	Blade End
Mounting Style	Bolt Down
Standards	IEC, UL Recognized
