Eaton Bussmann

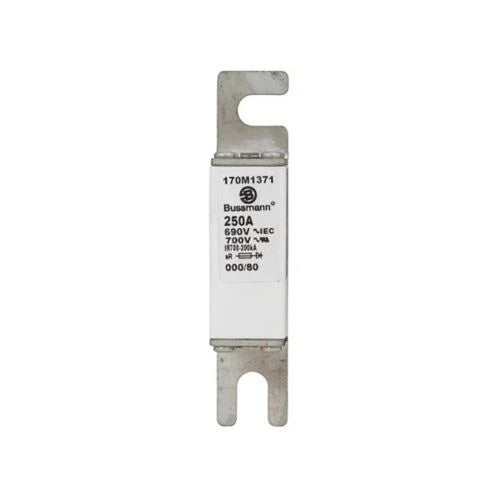

Bussmann 170M1371 Fuse

PRODUCT PRICE USD

$25.67

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	170M1371
Product Category	High Speed Square Body Fuse
Product Series	170M Series
Fuse Type	High Speed, Square Body Blade Fuse
Amperage Rating	315 A
Voltage Rating AC	690 V
Breaking Capacity	200 kA
Fuse Class	aR
Fuse Size	DIN 000
Terminal Type	Blade End
Mounting Style	Stud Mount, Screw
Dimensions	54 mm x 21 mm
Standards	CSA, UL

Key Features

315 A High Current Rating

Published specifications identify a 315 A current rating for the 170M1371 square body fuse.

aR Semiconductor Protection

Class aR partial-range high speed protection specifically suited for semiconductor devices.

200 kA Breaking Capacity

Provides a 200 kA breaking capacity at 690 V for reliable interruption of high fault currents.

Stud Mount Design

Features a stud mount, screw termination style in a compact 54 mm x 21 mm body.

Applications

Semiconductor protection
DC bus systems
Power converters
Rectifiers
DC drive circuits
Industrial power electronics

Purchase Information

We support online purchase of the Bussmann 170M1371 High Speed Square Body Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann 170M1371? The 170M1371 is a high speed square body fuse from the 170M series, rated 315 A and 690 V, Class aR.

What is the amperage rating? The amperage rating is 315 A.

What is the voltage rating? It is rated for 690 V AC.

What is the breaking capacity? The breaking capacity is 200 kA.

What is the fuse class? It is Class aR for semiconductor protection.

What are the dimensions? The fuse body measures 54 mm in length and 21 mm in height.

How is it mounted? It uses a stud mount with screw termination.

What standards does it meet? It is CSA and UL recognized.

Need help confirming a model?

Send us your part number and technical requirements.

Contact Our Team

Technical Specifications

Brand	Bussmann
Model Number	170M1371
Product Category	High Speed Square Body Fuse
Product Series	170M Series
Fuse Type	High Speed, Square Body Blade Fuse
Amperage Rating	315 A
Voltage Rating AC	690 V
Breaking Capacity	200 kA
Fuse Class	aR
Fuse Size	DIN 000
Terminal Type	Blade End
Mounting Style	Stud Mount, Screw
Dimensions	54 mm x 21 mm
Standards	CSA, UL
