200 A Current Rating
The 170M1370 high speed square body fuse has a documented current rating of 200 A.

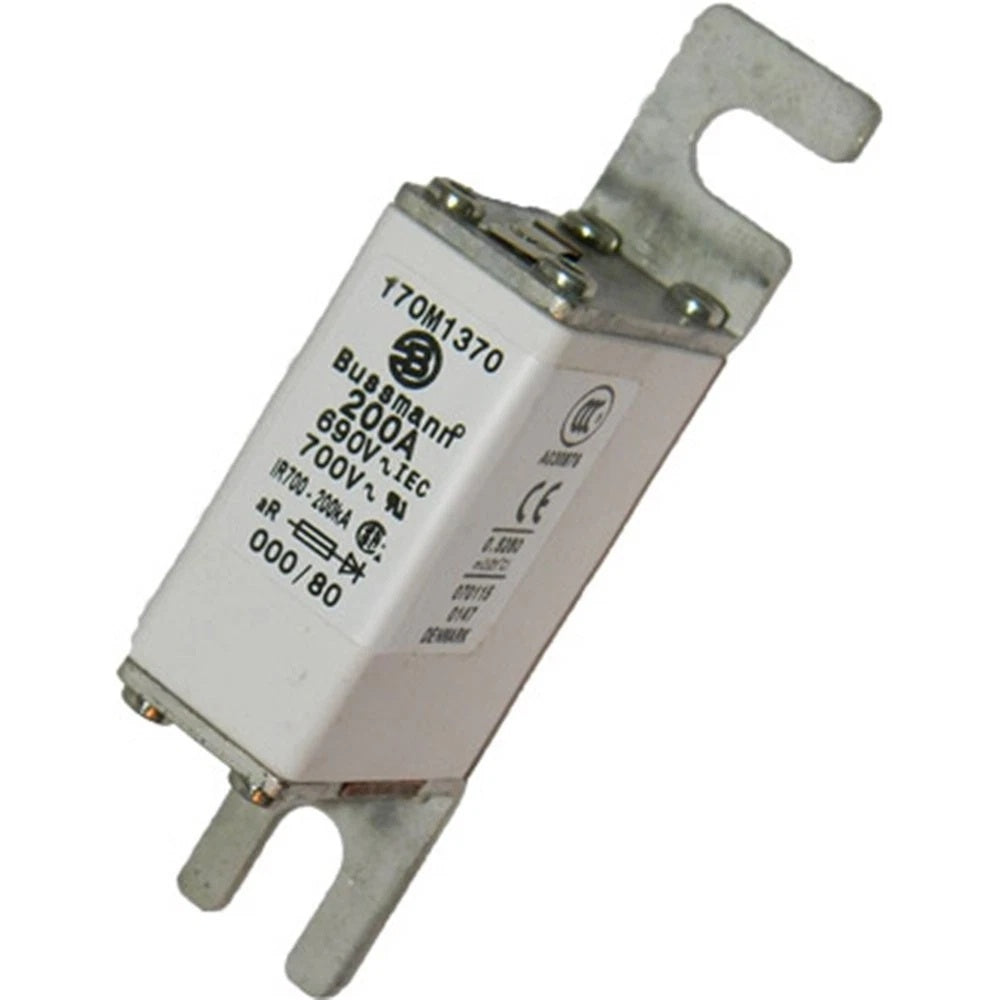

Bussmann 170M1370 High Speed Fuse 200A 690V Class aR
Available in stock (2000)
Regular price
$25.29
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Bussmann |
| Model Number | 170M1370 |
| Product Category | High Speed Fuse |
| Fuse Class | Class aR |
| Utilization Category | aR Semiconductor Protection |
| Current Rating | 200 A |
| Voltage Rating | 690 V IEC / 700 V UL |
| Voltage Type | AC |
| Breaking Capacity | 200 kA |
| Fuse Size | 000 |
| Fuse Type | DIN 43653 /80 Visual Indicator |
| Fuse Indicator | Top Fuse Status Indicator |
| Fuse Shape | Square Body, Slotted Offset Bolted Tags |
| Connection | Blade End × Blade End |
| Mounting Dimension | M8 |
| Connection Center Distance | 76.7 mm |
| Pre-Arcing I²t | 4200 |
| Clearing I²t | 28000 at 660 V |
| Watt Losses | 37 W |
| Product Weight | 145.7 g |
| Compliance | CE Marked, RoHS Compliant |
| Certifications | IEC Rated, UL Recognized |
Key Features
690 V IEC Rating
The fuse is rated at 690 V under IEC specifications and 700 V under UL specifications.
Class aR Protection
The 170M1370 has an aR utilization category for semiconductor protection applications.
200 kA Breaking Capacity
The documented breaking and interrupting capacity is 200 kA.
Square Body Construction
The fuse uses size 000 square body construction with slotted offset bolted tags and blade end connections.
Visual Status Indicator
The DIN 43653 /80 configuration includes a top fuse status indicator for visual indication.
Applications
- Semiconductor protection
- DC common bus systems
- DC drive systems
- Power converters
- Rectifier circuits
- Industrial power electronics
Purchase Information
We support online purchase of the Bussmann 170M1370 High Speed Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Bussmann 170M1370?
Bussmann 170M1370 is a high speed square body fuse with Class aR utilization characteristics for semiconductor protection applications.
What is the current rating of 170M1370?
The documented current rating is 200 A.
What is the voltage rating of 170M1370?
The documented voltage rating is 690 V under IEC specifications and 700 V under UL specifications.
What fuse class is 170M1370?
The documented class is Class aR, with an aR utilization category for semiconductor protection.
What is the breaking capacity of 170M1370?
The documented breaking capacity is 200 kA.
What fuse size is 170M1370?
The documented construction size is 000.
What type of indicator does 170M1370 use?
The fuse uses a top fuse status indicator and is specified as a DIN 43653 /80 visual indicator configuration.
What connection configuration does 170M1370 use?
The fuse uses blade end to blade end connections with a square body and slotted offset bolted tags.
What is the mounting dimension?
The documented mounting dimension is M8, with a connection center-to-center distance of 76.7 mm.
What applications are specified for 170M1370?
Eaton lists semiconductor protection, DC common bus systems, DC drives, power converters and rectifiers among the applications.
What are the documented I²t values?
The documented pre-arcing I²t value is 4200, while the clearing I²t value is 28000 at 660 V.
What should be checked before ordering 170M1370?
Check the 170M1370 catalog number, 200 A current rating, required 690 V IEC or 700 V UL rating, Class aR protection category, size 000 construction, M8 mounting arrangement and application requirements before purchasing.
