125 A Current Rating
The 170M1368 high speed square body fuse has a documented current rating of 125 A.

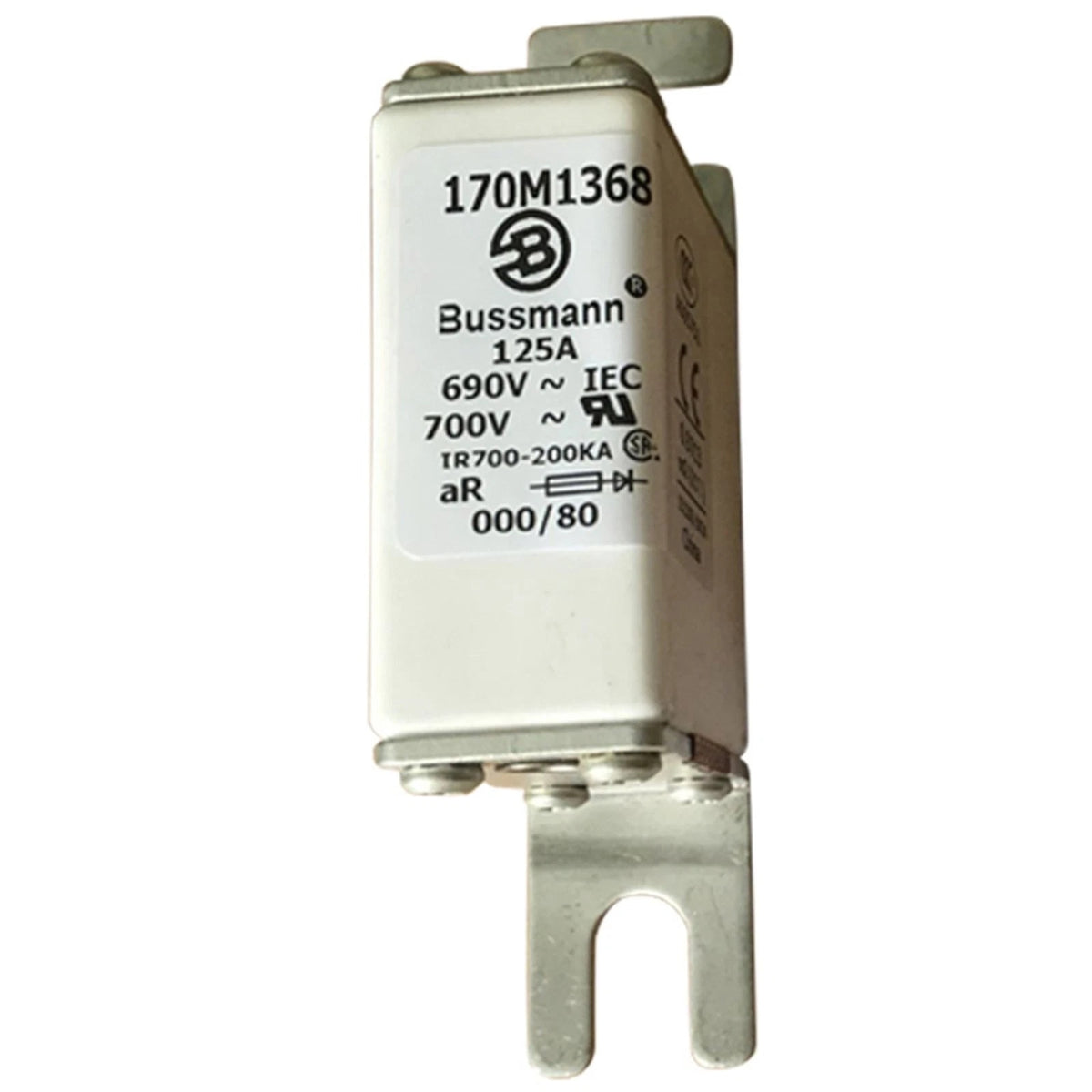

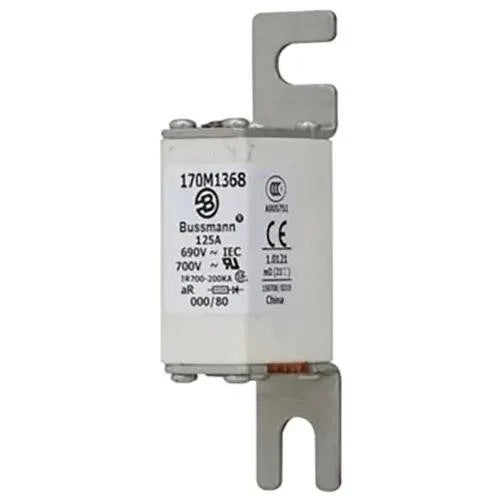

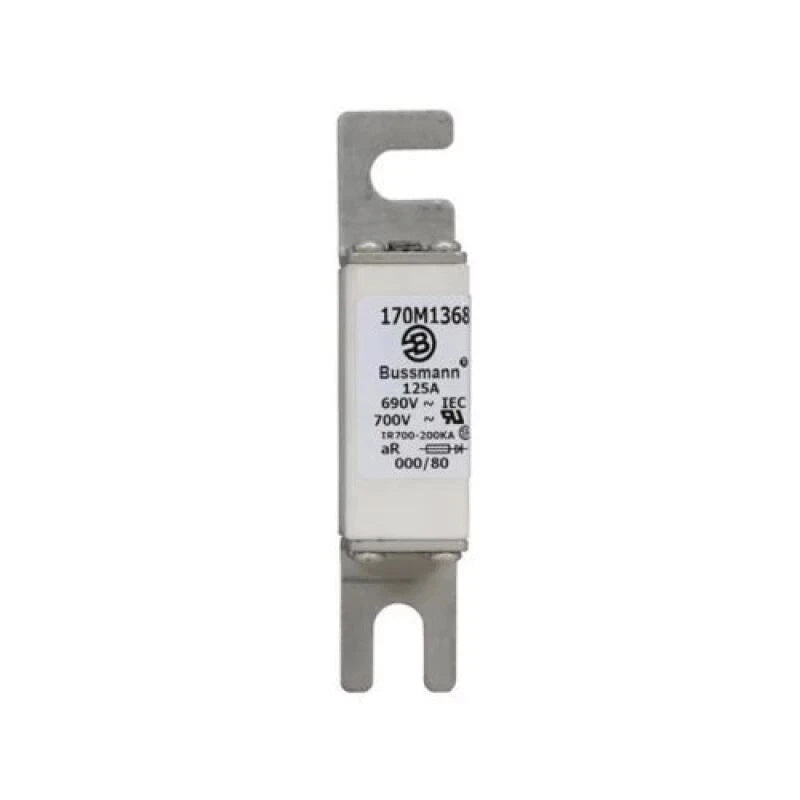

Bussmann 170M1368 High Speed Fuse 125A 690V Class aR
Available in stock (2000)
Regular price
$23.15
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Bussmann |
| Model Number | 170M1368 |
| Product Category | High Speed Fuse |
| Product Type | High Speed Square Body Fuse |
| Current Rating | 125 A |
| Voltage Rating | 690 V IEC / 700 V UL |
| Voltage Type | AC |
| Class | Class aR |
| Utilization Category | aR Semiconductor Protection |
| Breaking Capacity | 200 kA |
| Interrupt Rating | 200 kAIC |
| Fuse Size | 000 |
| Fuse Type | DIN 43653 /80 Visual Indicator |
| Fuse Indicator | Top Fuse Status Indicator |
| Fuse Shape | Square Body, Slotted Offset Bolted Tags |
| Connection | Blade End × Blade End |
| Pre-Arcing I²t | 1200 A²s |
| Clearing I²t | 8500 A²s at 660 V |
| Watt Losses | 28 W |
| Product Length/Depth | 105 mm |
| Product Height | 46 mm |
| Product Weight | 135.7 g |
| Compliance | CE Marked, RoHS Compliant |
| Certifications | UL Recognized, IEC Rated |
Key Features
690 V IEC Rating
The fuse is rated at 690 V under IEC specifications and 700 V under UL specifications.
Class aR Protection
The 170M1368 has an aR utilization category for semiconductor protection applications.
200 kA Breaking Capacity
The documented breaking capacity and interrupt rating are 200 kA and 200 kAIC.
DIN 43653 Construction
The fuse uses DIN 43653 construction in size 000 with slotted offset bolted tags and blade connections.
Top Status Indicator
The /80 configuration incorporates a visual top fuse status indicator.
Applications
- Semiconductor protection
- DC common bus systems
- DC drive systems
- Power converter protection
- Rectifier protection
- Industrial power electronics
Purchase Information
We support online purchase of the Bussmann 170M1368 High Speed Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Bussmann 170M1368?
Bussmann 170M1368 is a high speed square body fuse with an aR utilization category for semiconductor protection.
What is the current rating of 170M1368?
The documented current rating is 125 A.
What is the voltage rating of 170M1368?
The documented voltage rating is 690 V under IEC specifications and 700 V under UL specifications.
What fuse class is 170M1368?
The documented fuse class is Class aR.
What is the breaking capacity of 170M1368?
The documented breaking capacity is 200 kA.
What fuse size is 170M1368?
The documented fuse size is 000.
What type of indicator does 170M1368 use?
The 170M1368 uses a top fuse status indicator and is identified as a DIN 43653 /80 visual-indicator fuse.
What connection type does 170M1368 use?
The fuse uses blade end to blade end connections with a square body and slotted offset bolted tags.
What are the I²t values for 170M1368?
The documented pre-arcing I²t is 1200 A²s and the clearing I²t is 8500 A²s at 660 V.
What are the watt losses of 170M1368?
The documented watt loss is 28 W.
What applications are specified for 170M1368?
Documented applications include semiconductor protection, DC common bus systems, DC drives, power converters and rectifiers.
What should be checked before ordering 170M1368?
Check the complete 170M1368 catalog number, 125 A current rating, required 690 V IEC or 700 V UL rating, Class aR characteristics, size 000 construction and equipment protection requirements before purchasing.
